Introduction

Tumor cells exhibit a metabolic phenotype named the Warburg effect, whereby ATP is primarily generated by glycolysis, instead of oxidative phosphorylation, even under normoxic conditions (1). In normal cells, oxidative phosphorylation is carried out by a series of protein complexes embedded in the mitochondrial inner membrane. These electron transport chains transfer electrons from donors to acceptors, such as oxygen. These redox reactions generate energy used to convert ADP to ATP. Although glycolysis is a less efficient pathway for generating ATP, it allows cell growth under hypoxic conditions, encountered in expanding tumors. Furthermore, oxidative phosphorylation generates reactive oxygen species (ROS), known to cause apoptosis in tumor cells (2). Therefore, the Warburg effect further allows tumor cells to suppress ROS-mediated apoptosis. Bonnet et al (3) discovered that dichloroacetate (DCA), a drug used to treat human lactic acidosis, inhibits mitochondrial pyruvate dehydrogenase kinase and selectively kills cancer cells by normalizing cancer-associated metabolic properties. The drug suppresses glycolysis and promotes oxidative phosphorylation, thereby increasing mitochondrial ROS-mediated apoptosis in tumor cells (3–6). These data highlight the importance of suppressing oxidative phosphorylation in tumor cells.

The enzyme cytochrome c oxidase (COX; complex IV) plays a key role at the end of the electron transport chain (7). This hemoprotein uses a heme group as an active site to oxidize cytochrome c. In most tumor cells, COX activities are suppressed. We recently reported that 5-aminolevulinic acid (ALA) increases COX activity in mouse liver (8). This compound is widely distributed in plant and animal cells and is a common precursor of tetrapyrroles, such as the active core of hemoglobin. In animal cells, ALA is generated from glycine and succinyl CoA by the ALA synthase in the mitochondria. ALA administration induces the cancer-specific accumulation of fluorescent porphyrins (9). Therefore, fluorescence diagnosis, also named photodynamic diagnosis, is based on the different ALA-induced fluorescent signatures of normal and cancer tissues (10).

The present study tested the impact of ALA on the Warburg effect in vitro to determine whether this compound might induce apoptosis in cancer cells by restoring normal metabolic activities. The human lung carcinoma cell line A549 was exposed to ALA to determine its impact on oxidative phosphorylation, glycolysis, and caspase-dependent apoptosis. The present study demonstrates the potential of this endogenous compound for the development of new cancer treatments.

Materials and methods

Materials

The substrate ALA hydrochloride was purchased from Cosmo Oil Co., Ltd. (Tokyo, Japan). RPMI-1640 medium and antibiotic-antimycotic mixture (ABAM; penicillin-streptomycin-amphotericin B) were obtained from Nacalai Tesque (Kyoto, Japan). Fetal bovine serum (FBS) was purchased from Invitrogen (Carlsbad, CA, USA). All other chemicals were of analytical grade.

Cells

The human lung carcinoma cell line A549 was purchased from Riken BRC Cell Bank (Tsukuba, Ibaraki, Japan). Cells were grown in RPMI-1640 medium supplemented with 10% FBS and ABAM at 37°C in an incubator with a controlled humidified atmosphere composed of 5% CO2.

Determination of cell survival

The A549 cells (2×104 cells) were incubated at 37°C in RPMI-1640 medium containing ALA, with or without 20 μM of the caspase inhibitor Z-VAD-FMK (Enzo Life Sciences, Farmingdale, NJ, USA), under 5% CO2 for 72 h in the dark to avoid photocytotoxicity from the generated porphyrins. After 72 h, the number of living cells was determined by the trypan blue dye exclusion assay.

Preparation of cell lysate samples

Confluent cultures were washed with ice-cold PBS (−) and then treated with lysis buffer A (50 mM Tris-HCl pH 7.4, 1 mM DTT, 1% v/v Triton X-100) containing a protease inhibitor cocktail (Nacalai Tesque). The preparation was homogenized by 10 passages through a 27-G needle. The homogenate was centrifuged at 1,000 × g for 10 min at 4°C, and the resulting supernatant was collected as the cell lysate. Protein concentration of the supernatant was determined by the Bradford assay (Bio-Rad Laboratories, Richmond, CA, USA) using bovine serum albumin as a standard.

SDS-PAGE and western blot analysis

SDS-PAGE and western blot analysis were performed as described previously (11), with some modifications. In brief, the cell lysate was mixed with SDS-PAGE sample buffer containing 10% v/v 2-mercaptoethanol (Daiichi Pure Chemicals Co., Ltd., Tokyo, Japan), and proteins were electrophoretically separated on a 15% polyacrylamide gel. The gel was electroblotted onto a polyvinylidene fluoride membrane (Millipore, Bedford, MA, USA). The membrane was incubated in blocking solution containing 5% w/v skim milk in TTBS (20 mM Tris-HCl pH 7.4, 150 mM NaCl, 0.05% v/v Tween 20) at 4°C overnight. The specific antibodies used were: human anti-heme oxygenase-1 (HO-1) monoclonal antibody (1:200; Abcam, Cambridge, UK), human catalase monoclonal antibody, human manganese superoxide dismutase (MnSOD) polyclonal antibody, human caspase-3 monoclonal antibody and human COX IV-1 monoclonal antibody (all at 1:200 dilution; Santa Cruz Biotechnology Inc., Dallas, TX, USA). Human GAPDH monoclonal antibody (1:1,000; American Research Products Inc., Waltham, MA, USA) was used as an internal standard. The secondary antibody used was anti-mouse IgG horseradish peroxidase (HRP)-conjugated antibody (1:3,000; Cell Signaling Technology Inc., Danvers, MA, USA). HRP-dependent luminescence was developed using Western Lightning™ Chemiluminescent Reagent Plus (PerkinElmer Life and Analytical Sciences Inc., Waltham, MA, USA) and detected using the lumino-image analyzer ImageQuant LAS-4000 mini (GE Healthcare Life Sciences UK, Little Chalfont, UK). Chemiluminescence intensity was quantified using an ImageQuant™ TL Analysis Toolbox (GE Healthcare Life Sciences).

Measurements of dissolved oxygen concentrations in cultured medium

Dissolved oxygen concentrations in cultured medium were determined using a 24-channel SDR SensorDish® Reader (PreSens Precision Sensing GmbH, Regensburg, Germany), with some modifications (12). In brief, A549 cells were seeded on a 24-well OxoDish® (5×104 cells/well; PreSens Precision Sensing GmbH) and cultured at 37°C under 5% CO2 for 16 h. Next, the incubation medium was replaced with 1,000 μl of fresh medium covered with 800 μl of liquid paraffin as a gas barrier. The cells were cultured at 37°C under atmosphere, and measurements of dissolved oxygen concentrations were performed for 24 h at 1-h intervals.

Measurements of pH of the cultured medium

Since glycolysis causes lactic acidosis in vivo and a decrease in pH of culture medium in vitro, the impact of ALA on the glycolytic pathway was measured by monitoring culture medium pH using the 24-channel SDR SensorDish Reader (12). In brief, A549 cells were seeded on a 24-well HydroDish® (5×104 cells/well, PreSens Precision Sensing GmbH) and cultured at 37°C under 5% CO2 for 16 h. Next, the incubation medium was replaced with 800 μl of fresh buffer-free RPMI-1640 medium without NaHCO3, covered with 800 μl of liquid paraffin as a gas barrier. The cells were cultured at 37°C under atmosphere, and pH measurements were performed for 24 h at 1-h intervals.

Detection of superoxide anion radicals

Intracellular superoxide anion radical (O2•−) levels were detected using a Diogenes Cellular Luminescence Enhancement System (National Diagnostics, Somerville, NJ, USA) as described previously (13), with some modifications. The Diogenes kit is a supersensitive version of the traditional luminol assay that measures oxidation levels directly proportional to chemiluminescence. Cells seeded on a 96-well plate (3×104 cells/well) were cultured overnight at 37°C under 5% CO2. Next, the incubation medium was replaced with fresh medium containing ALA. The cells were further incubated in the dark for 2 or 4 h, and the medium was replaced with 100 μl of Diogenes reagent. Following incubation at 37°C for 10 min, the luminescence level of the reagent was measured using a luminescence microplate reader (LMax II; Molecular Devices, Sunnyvale, CA, USA).

Measurements of caspase-3 activity

The enzymatic assay was performed using a Caspase-3 Colorimetric Assay kit (Medical and Biological Laboratories Co., Ltd., Nagoya, Japan) as described previously (14), with some modifications. In brief, A549 cells (2×106 cells) were lysed with 250 ml of lysis buffer on ice for 10 min. Following centrifugation (10,000 × g, 10 min, 4°C), the supernatant was collected for the caspase-3 assay. A total of 100 μg of protein was diluted in 50 μl of cell lysis buffer and mixed with 50 μl of 2X reaction buffer (containing 10 mM DTT) and 5 μl of substrate (10 mM Asp-Glu-Val-Asp-p-nitroanilide; DEVD-pNA). Following incubation at 37°C for 24 h, absorbance was read at 405 nm using the microtiter plate reader Multiskan® FC (Thermo Fisher Scientific, San Jose, CA, USA).

Results

Impact of ALA on the survival of A549 cells

The impact of ALA on the survival of cancer cells was tested using A549 cells. A significant decrease in cell survival was detected following a 72-h exposure to ALA (Fig. 1). Since all experiments were performed in complete darkness, cell death was not caused by photocytotoxicity of the porphyrins generated from ALA. By contrast, the caspase inhibitor Z-VAD-FMK prevented cell death, thereby supporting a mechanism of ALA-mediated apoptosis in cancer cells.

Figure 1 Cell survival of A549 cells following incubation with 5-aminolevulinic acid (ALA). A549 cells were incubated with ALA for 72 h and cell survival was determined by the trypan blue dye exclusion assay.

Impact of ALA on the Warburg effect in A549 cells

To investigate the effect of ALA on the Warburg effect, key elements of oxidative phosphorylation and glycolysis were monitored in A549 cells pre- and post-exposure to ALA. First, ALA induced an increase in COX protein expression (Fig. 2), supporting a stimulating effect on oxidative phosphorylation. This result is consistent with the result from our previous study, where COX expression in mouse liver was increased following ALA administration (8). In addition, oxygen consumption was significantly higher following ALA exposure (Fig. 3A). Furthermore, the oxygen consumption ratio induced by ALA was higher than the ratio induced by DCA, which is a common enhancer of oxidative phosphorylation. Taken together, these data suggest that the increase in the oxygen consumption level measured in A549 cells following ALA exposure requires the induction of key proteins supporting oxidative phosphorylation, including COX.

Figure 2 Western blot analysis of A549 cells following incubation with 5-aminolevulinic acid (ALA). Subunit IV of COX was detected by western blot analysis (A) and the intensity of bands was quantified (B).

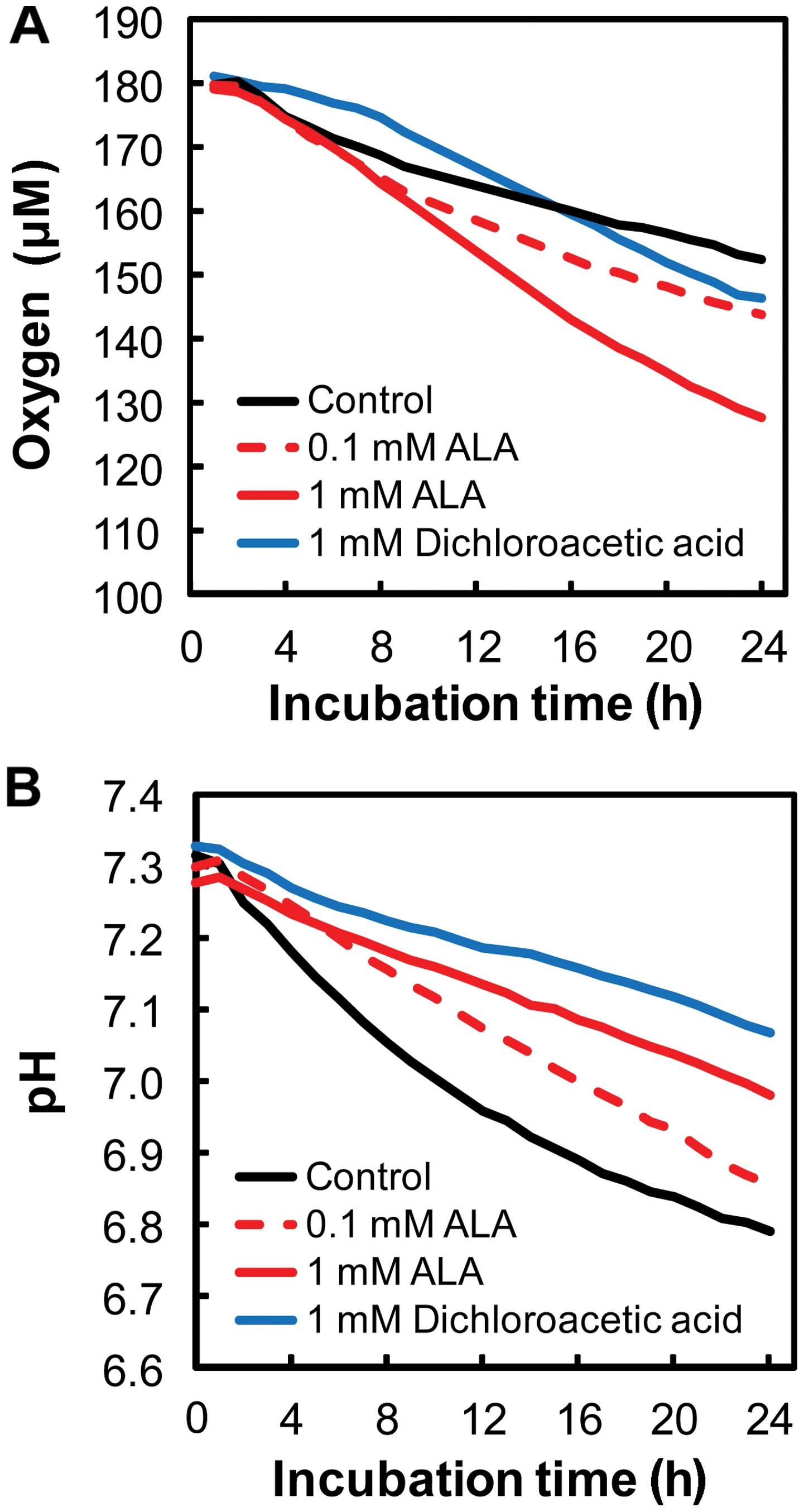

Figure 3 Metabolic change in A549 cells following incubation with 5-aminolevulinic acid (ALA). Aerobic respiration was evaluated by measuring oxygen consumption (A) and glycolysis was evaluated by measuring the pH of cultured medium (B).

Since glycolysis causes acidosis, the impact of ALA on this pathway was determined by monitoring the pH of the A549 cell culture medium during a 24-h incubation period (Fig. 3B). In control cultures, the rate of pH decay was typical of cancer cells. The presence of ALA prevented any significant decrease in pH during the 24-h period, suggesting that the compound suppressed glycolysis in A549 cancer cells.

Impact of ALA on ROS generation

The impact of ALA on oxidative phosphorylation was additionally tested in A549 cells with respect to the generation of ROS, namely O2•−. Fig. 4 shows that ALA significantly increased O2•−generation over 4 h. It is well known that ROS generation stimulates the expression of free radical scavenging enzymes. Western blot analysis (Fig. 5) shows that ALA stimulates MnSOD, catalase and HO-1 protein expression. Altogether, these data show that ALA-mediated ROS generation was sufficient to recruit additional scavenger enzymes to protect cancer cells against oxidative stress-mediated apoptosis. Therefore, ALA significantly stimulated the oxidative phosphorylation pathway in A549 cancer cells.

Figure 4 Generation of superoxide anion radical (O2•−) from A549 cells following incubation with 5-aminolevulinic acid (ALA). O2•− levels were measured using a Diogenes Cellular Luminescence Enhancement System. Cells were incubated with or without ALA for 4 h. *p<0.05, statistical significance of differences between paired groups.

Figure 5 Expression of scavenger enzymes. Scavenger enzymes manganese superoxide dismutase (MnSOD), catalase and heme oxygenase-1 (HO-1) were detected in A549 cells by western blot analysis following a 24-h incubation with 5-aminolevulinic acid (ALA).

Induction of apoptosis by ALA

Since ROS generation induces apoptosis in cancer cells (15), experiments were performed to test whether ALA induces apoptosis in A549 cells. Activated caspase-3 is a key player in the initiation of apoptosis. Fig. 6A shows that ALA induced an increase in the protein expression of activated (cleaved) caspase-3. The functional overexpression of active caspase-3 was demonstrated by enhanced cleavage of DEVD-pNA (Fig. 6B) in the presence of ALA. Therefore, ALA increases the caspase-3 activity level in cancer cells. Furthermore, the inhibitor of caspase-dependent apoptosis, Z-VAD-FMK, prevented ALA-mediated cell death (Fig. 7). Altogether, these data demonstrate that ALA induced caspase-dependent apoptosis in A549 cells.

Figure 6 Measurement of activation of caspase-3. Activated caspase-3 was detected in A549 cells by western blot analysis following a 24-h incubation with 5-aminolevulinic acid (ALA) (A) and caspase-3 activity was measured using the Caspase-3 Colorimetric Assay kit following incubation with 1 mM ALA (B). *p<0.05, statistical significance of differences between paired groups.

Figure 7 The effect of caspase inhibitor on 5-aminolevulinic acid (ALA)-induced cell death. A549 cells were incubated with or without ALA and Z-VAD-FMK for 72 h and cell survival was determined by the trypan blue dye exclusion assay.

Discussion

At present, the most important goal of cancer research teams is to discover tumor cell-specific treatments to reduce the serious side-effects of chemotherapy. Recent developments in molecular biology and metabolomics have shown that tumor cells exhibit a unique metabolic phenotype, named the Warburg effect, which represents a shift in ATP generation from oxidative phosphorylation to glycolysis (16). For tumor cells, it is important to suppress oxidative phosphorylation since this pathway generates ROS, causing apoptosis and cell death (2). The importance of this phenomenon is illustrated by the effect of DCA, which selectively kills cancer cells by normalizing cancer-associated metabolic properties and stimulating ROS-mediated apoptosis (3–6).

The present study showed that the endogenous compound ALA exhibits properties similar to DCA in cancer cells, i.e., restoration of oxidative phosphorylation, suppression of glycolysis, and ROS-mediated apoptosis. To our knowledge, this is the first in vitro study showing that ALA causes tumor apoptosis via enhancement of oxidative phosphorylation. In a previous study, we showed that in mouse liver, ALA increases the expression and activity of COX, which is an indicator of oxidative phosphorylation (8). The present study goes further by showing that ALA affects both aspects of the Warburg effect by increasing oxidative phosphorylation and suppressing glycolysis. Therefore, ALA stimulates ROS-mediated apoptosis in tumor cells and reduces their capacity to grow in the low oxygen (hypoxic) environment of the tumor mass. These data strongly support the potential of ALA as a selective antitumor agent.

ALA is widely used in tumor therapy (photodynamic therapy) and diagnosis (photodynamic diagnosis) since tumor cell-specific fluorescent porphyrin accumulates following ALA administration (9). However, ALA has not yet been considered as a therapeutic drug. The main effect of porphyrin accumulation is the overexpression of the peptide transporter PEPT1 or PEPT2 (ALA influx transporter) in tumor cells and tissues (17,18). Therefore, the cytotoxic effects of ALA would only be evident in tumor cells. Moreover, no side-effect of ALA has been reported in normal cells (9). These findings support ALA as a high-potential, tumor-specific antitumor agent. Further studies are needed to examine the activity of ALA in vivo using experimental xenograft models and clinical tumor specimens.

Acknowledgments

We thank Professors Eiry Kobatake and Masayasu Mie for measurements of superoxide anion radicals.
