Introduction

Familial hypercholesterolemia (FH) inheritable disorder of abnormal low-density lipoprotein (LDL) metabolism that is characterized by elevated plasma concentrations of total cholesterol (TC) and LDL cholesterol (LDL-C), xanthomas (cholesterol deposits in the skin and tendons) and an increased risk of premature coronary artery disease (CAD). Homozygous FH affects 1 in 1,000,000 individuals, and the frequency of heterozygous FH varies from 1 in 200 to 1 in 500 individuals, depending on the population (1).

Monogenic FH is caused by defects in several genes that encode proteins involved in LDL uptake and catabolism (LDLR, APOB, PCSK9 and LDLRAP1) (1). The majority of patients with autosomal dominant FH harbor mutations in the LDL receptor gene. To date, >2,000 FH-causing variants have been reported in LDLR (2). APOB and PCSK9 mutations account for a smaller percentage of autosomal dominant FH cases (3). Recessive forms of FH are associated with variants in LDLRAP1, which encodes for the LDLR adapter protein 1(1).

Hypercholesterolemia may be associated with other rare disorders of lipid metabolism, which have very similar clinical presentations; one example is sitosterolemia, which is caused by mutations in genes encoding either of two ATP-binding cassette (ABC) transporters, ABCG5 or ABCG8, which limits intestinal absorption and promotes biliary excretion of sterols (4). Next-generation sequencing (NGS) studies have shown that rare mutations in the ABCG5, ABCG8, APOE and LIPA genes can cause a FH-like phenotype (5).

Despite being one of the most common genetic disorders, FH still remains largely undetected and untreated worldwide (2,5). Screening during childhood may enhance the potential identification of individuals with the condition before establishment of cardiovascular pathologies (6). As lipoprotein metabolism in children is influenced by fewer environmental factors than it is for adults, the difference in LDL-C levels between children with and without FH is more pronounced (7). Pediatric FH is diagnosed phenotypically by the presence of elevated LDL-C levels, in addition to a family history of premature CAD, high baseline TC levels in one parent and/or a FH-causing mutation (6). It should be noted that there are no universal criteria for LDL-C cut-offs in the case of pediatric diagnosis of FH. Although the widely used Simon Broome criteria proposes an LDL-C cut-off of 4 mmol/l (155 mg/dl) for individuals under 16(8), another suggestion is 3.5 mmol/l (140 mg/dl) (9,10). The younger the child with suspected FH, the lower LDL-C should be expected to be (11). LDL-C levels can fluctuate greatly during childhood, and in the case of LDL-C levels between 2.7-3.5 mmol/l (100-140 mg/dl), it is highly recommended that the patient is followed-up for at least a few years by the Japan Pediatric Society and Japan Atherosclerosis Society (9). As FH can only be diagnosed definitively in the presence of xanthomas, which are rarely observed in children and adolescents (7), genetic screening is a fundamental diagnostic tool. The heterogeneity of FH-causing variants and the total length of coding regions of FH-associated genes supports the use of NGS-sequence-based mutation screening as a primary methodology for diagnostics and improving the overall mutation detection rate.

The spectrum and prevalence of FH-related mutations remains to be studied in Russia. Previous studies have used limited genetic screening methods based on PCR and Sanger sequencing to study specific relevant genes, such as LDLR and APOB (12-14). The aim of the present study was to adapt an NGS-based method for molecular FH diagnosis in Russian individuals and compare its efficiency in different age groups. In the present study, mutation screening in two groups of patients with suspected FH was presented: The adult group and the children/adolescent group. NGS was also used to increase the mutation detection rate.

Patients and methods

Subjects

The present study was approved by the Ethics Committees of Center for Atherosclerosis and Lipid Disorders of North-Western District Scientific and Clinical Center Named After L.G. Sokolov, Medical Faculty of Saint-Petersburg State University, City Hospital No. 40 (St. Petersburg, Russia) and Research Centre for Medical Genetics (Moscow, Russia), where patients were treated, and genetic analysis was performed. Written informed consent was obtained from all patients or the children's legal representatives prior to the beginning of the study.

A total of 59 unrelated citizens from Saint-Petersburg and Moscow (29 male/30 female) with suspected FH were enrolled in the present study. Clinical data were collected, including the prior lipid levels, family and personal history of dyslipidemia and the presence of premature atherosclerotic cardiovascular disease (ASCVD), as well as the presence of tendon/skin xanthomas and lipoic corneal arcus. Demographic characteristics and clinical features of the groups are presented in Table I. The recorded TC and LDL-C values, independent of pre- or post-treatment, were used in the present study. Depending on the age, patients were sorted into two separate groups: The adult group (≥21 years old) and the children/adolescent group (<21) (15). As children and adolescents were included, the Simon Broome criteria was used. Exclusion criteria were the presence of thyroid dysfunction, nephrotic syndrome, autoimmune disease or primary biliary cirrhosis.

Table I Clinicopathological and demographic characteristics of the recruited cohort.

Table I

Clinicopathological and demographic characteristics of the recruited cohort.

Characteristic	Adult, n=31	Children/adolescent, n=28
Age, yearsa	47.4±14.1	11.0±5.1
Age range, years	23-70	2-21
Male, n (%)	12(39)	17(61)
Female, n (%)	19(61)	11(39)
Family history, n (%)	23(74)	24(86)
Maximal total cholesterol, mmol/la	11.0±2.2	9.3±1.4
LDL cholesterol, mmol/la	6.8±2.5	6.7±1.8
Tendon xanthomas, n (%)	22(71)	0 (0)
Lipoic corneal arcus, n (%)	2(6)	0 (0)
Clinical and instrumental manifestations of ASCVD, n (%)	17(55)	0 (0)
Increased intima-media thickness without clinical symptoms, n (%)	3(10)	0 (0)
Patients on lipid-lowering therapy, n (%)	31(100)	1(4)

[i] ^aMean ± standard deviation. ASCVD, atherosclerotic cardiovascular disease; LDL, low density lipoprotein.

The adult group included 31 patients (12 males and 19 females; median age, 49; age range, 23-70) who fulfilled the Simon Broome criteria for definite/possible FH (8). The children/adolescent group included 28 children and adolescents (17 males and 11 females; median age, 11; age range, 2-21) who mostly met the strict criteria regarding lipid levels (TC >7.5 mmol/l or LDL-C >4.9 mmol/l if >16 years; TC >6.7 mmol/l or LDL-C >4.0 mmol/l if <16 years). Children with LDL-C <4.0 mmol/l were also included in the study as the diagnosis of FH in children can be based on age and sex adjusted LDL-C levels, with the 95th percentile being 3.5 mmol/l for boys and 3.8 mmol/l for girls (16). A previous clinical study stated that the LDL-C cut-off level may be even lower (3.4 mmol/l) if a first-degree relative shows increased TC and LDL-C levels, or has been diagnosed with ASCVD (17). A total of 86% individuals from the children/adolescent group represented families with a history of hypercholesterolemia and/or ASCVD, but never applied for genetic testing. For several patients included in the study, elevated TC levels were a consequential finding during routine biochemical examinations due to frequent respiratory infections.

NGS

NGS was performed as a collaboration between two genetic laboratories from Saint-Petersburg and Moscow, and the Illumina MiSeq (Illumina, Inc.) and Ion S5 (Thermo Fisher Scientific, Inc.) sequencing systems were used, respectively. Genomic DNA (gDNA) was extracted from whole blood using the Magna Pure system (Roche Diagnostics) or with the use of a Diatom DNA Prep reagent kit (Biocom) according to the manufacturer's protocols. Concentration of gDNA as well as DNA concentration of the libraries afterwards was determined using a Quantus Fluorometer™ (Promega Corporation) or Qubit™ Fluorometer (Thermo Fisher Scientific, Inc.). gDNA was subjected to electrophoresis in 1% agarose gel and the optical density ratio was used to confirm its integrity and purity.

DNA samples were prepared for the targeted NGS covering all of the coding exons of the LDLR (NM_000527), APOB (NM_000384), PCSK9 (NM_174936), LDLRAP1 (NM_015627), ABCG5 (NM_022436) and ABCG8 (NM_022437) genes. The panel used for mutation screening in the children/adolescent group additionally included LIPA (NM_001127605), as LIPA disorders manifest with FH-like clinical features at a young age.

For sequencing on the Illumina platform, DNA libraries were prepared from 200 ng using a KAPA LTP Library Preparation kit with a custom designed SeqCap® EZ Choice Library Enrichment kit [Roche Diagnostics; cat. no. KK8232 (07961880001) and 170911_HG19_gb40_cardio_EZ_HX3, respectively]. Validation of the libraries was performed on the Agilent 4200 Tape Station (Agilent Technologies, Inc.). Concentration in nmol was calculated based on the size of the libraries and concentration in ng/µl. Libraries were normalized to 4 nmol before pooling and denaturation to get a final loading concentration of 12.5 pmol. Paired-end sequencing of the 150 bp libraries was performed on an Illumina MiSeq Sequencer (Illumina, Inc.) using a MiSeq Reagent kit v2 (300 cycles) (Illumina, Inc., cat. MS-102-2002) to obtain the FastQ data.

For sequencing on the Ion S5 system, DNA libraries were constructed with the Ion AmpliSeq™ custom panel and Ion AmpliSeq™ Library kit 2.0 (Thermo Fisher Scientific, Inc.; cat. nos. 04779971_Dyslipidemia_IAD175748_182 and 4480442, respectively). DNA quality was confirmed by the final stage of library preparation using test PCR performed with the included manufacturer's primers to adaptors sequences. The thermocycling conditions used were as follows: 95˚C for 40 sec, 68˚C for 35 sec and 72˚C for 75 sec; the number of cycles used was dependent on the library concentration. PCR results were visualized on silver-stained 8% acrylamide gel (staining time 10 min at 4˚C). Massive parallel sequencing of pooled libraries with loading concentration of 75 pmol was performed using an Ion 540™ Chip kit (Thermo Fisher Scientific, Inc., cat. A27766) and Ion 540™ Kit-Chef (Thermo Fisher Scientific, Inc., cat. mo. A30011) with an average amplicon length of 175 bps.

Bioinformatics analysis

The 1000 Genomes human reference genome assembly (b37) was used for data analysis (18). All samples were analyzed using a bioinformatics pipeline based on the BWA-MEM version 0.7.15-r1140, PicardTools version 2.2.2 (broadinstitute.github.io/picard/) and Genome Analysis Tool kit (GATK) version 3.5 (github.com/broadinstitute/gatk/releases) software according to the GATK Best Practices workflow (software.broadinstitute.org/gatk/best-practices/) (19,20). Target enrichment metrics were collected using the Picard CalculateHsMetrics tool. All samples included in the dataset were jointly genotyped using the GATK GenotypeGVCFs tool. Variants were hard filtered using threshold values recommended by GATK. Variant annotation was performed using SnpEff and SnpSift packages. The following resources and databases were used for variant annotation: dbSNP build 146, 1000 Genomes phase 3(21); Exome Aggregation Consortium r. 0.3.1(22); ClinVar version 2018-04-01 and dbNSFP version 2.9(23). To determine splicing alterations, the NetGene2 Server (cbs.dtu.dk/services/NetGene2) was used. The frequency of the identified variants was additionally assessed following the Northwest Russia variant compendium (24). Novel variants were defined based on the following criteria: i) No reference SNP ID number; and ii) they had not been recorded in the public database including the Human Gene Mutations Database (HGMD; hgmd.cf.ac.uk), ClinVar or a publicly funded database for LDLR mutations (LOVD; databases.lovd.nl/shared/variants/). The prediction of the pathogenicity of previously undescribed mutations was performed using the SIFT (sift.jcvi.org/), PolyPhen-2 (genetics.bwh.harvard.edu/pph2) and MutationTaster (mutationtaster.org) tools, as well as Human Splicing Finder for intronic variants (umd.be/HSF3/HSF.shtml) (25). The nomenclature of molecular variants follows the Human Genome Variation Society guidelines (varnomen.hgvs.org/). Assessment of the pathogenicity of novel sequence variants was performed taking into account the recommendations of the American College of Medical Genetics and Genomics (26). These previously developed protocols have allowed effective identification of pathogenic variants for various other hereditary diseases (27).

Variant validation

Variant validation was performed by PCR-direct sequencing. Specific primers were designed for verification in each case (Table SI). DNA sequencing was performed using the ABI BigDye Terminator 3.1 kit (Thermo Fisher Scientific, Inc.; cat. no. 4337456) on an ABI 3130xl Genetic analyzer (Saint-Petersburg) or ABI 3500 automatic sequencer (Moscow; both supplied by Applied Biosystems; Thermo Fisher Scientific, Inc.) according to the manufacturer's specifications.

Results

NGS-based genetic findings

The NGS-based technique allowed for the identification of 32 different pathogenic/likely pathogenic variants, 7 of which had not been previously reported, in 43 patients (Table II). The overall mutation detection rate was 73%. Phenotypic characteristics of mutation-positive patients are reported in Tables SII and SIII. All novel variants in the LDLR gene identified in this study and their pathogenicity analyses are presented in Table II, with their Sanger sequencing results shown in Fig. 1.

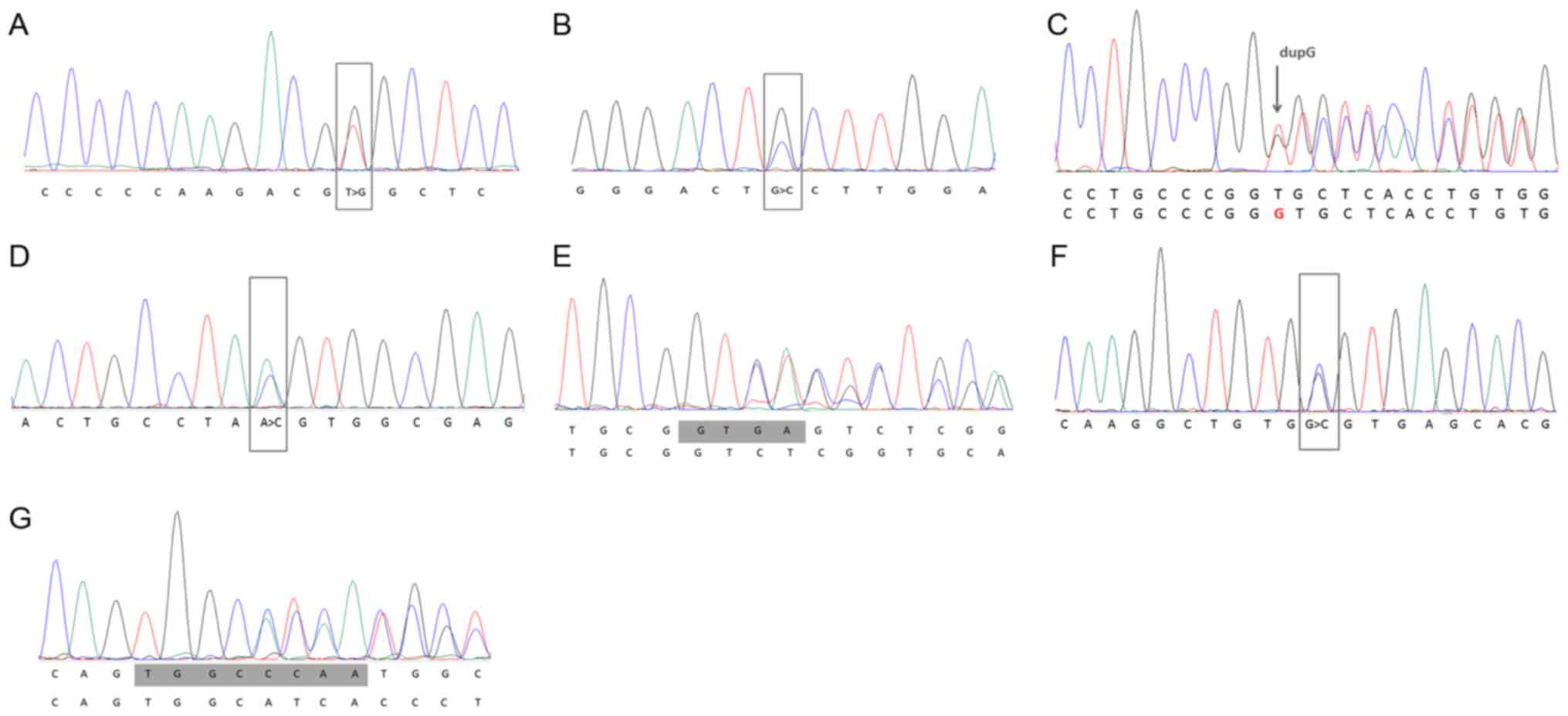

Figure 1 Sanger sequencing results for next-generation sequencing-determined novel LDLR variants: (A) c.325T>G p.(Cys109Gly); (B) c.401G>C p.(Cys134Ser); (C) c.433_434dupG p.(Val145Glyfs*35); (D) c.616A>C p.(Ser206Arg); (E) c.940+1_c.940+4 delGTGA (g.18154_18157delGTGA); (F) c.1186G>C p.(Gly396Arg); and (G) c.1684_1691delTGGCCCAA p.(Pro563Hisfs*14).

Table II Characterization of genetic variants identified in the present study and their pathogenicity analysis.

Table II

Characterization of genetic variants identified in the present study and their pathogenicity analysis.

A, Novela LDLR variants, reported in this study
Patient ID	Genetic variant	Number of patients	Variant ID in dbSNP or alternative database	Genomic position (GCRh37/hg19)	Pathogenicity analysisb MAF in GnomAD	Functional domain	Pathogenicityc	SIFT	Mutation taster	Poly Phen2	(Refs.)
1	Missense Exon 4 c.325T>G p.(Cys109Gly)	1	869387 in ClinVar	Chr19: 11215907	-	Ligand-binding	Likely pathogenic (PS1 PM1 PM2 PM5 PP3)	D	D	D	-
2	Missense Exon 4 c.401G>C p.(Cys134Ser)	1	869388 in ClinVar	Chr19: 11215983	-	Ligand-binding	Likely pathogenic (PS1 PM1 PM2 PM5 PP3)	D	D	D	-
3	Frameshift Exon 4 c.433_434dupG p.(Val145Glyfs*35)	1	870329 in ClinVar	Chr19: 11216013	-	Ligand-binding	Pathogenic (PVS1 PM2 PP3)	D	D	--	-
4	Missense Exon 4 c.616A>C p.(Ser206Arg)	1	869389 in ClinVar	Chr19: 11216198	-	Ligand-binding	Uncertain value (PM2 PP3)	D	D	D	-
5	c.940+1_c.940+ 4 delGTGA (g.18154_18157 delGTGA)	4	869390 in ClinVar	Chr19: 11218191-11218194	-	Splice donor site, intron 6	Pathogenic (PVS1 PM1 PM2 PP3)	--	D	--	-
6	Missense Exon 8 c.1186G>C p.(Gly396Arg)	1	870321 in ClinVar	Chr19: 11222315	-	EGF precursor homology B repeat	Pathogenic (PVS1 PM1 PM2 PM5 PP3)	D	D	D	-
7	Frameshift Exon 11 c.1684_1691del TGGCCCAA p.(Pro563Hisfs*14)	1	869391 in ClinVar	Chr19: 11226866-11226875	-	EGF spacer	Pathogenic (PVS1 PM1 PM2 PP3)	D	D	--	-
B, Genetic variants in LDLR
8	Missense Exon 2 c.100T>G p.(Cys34Gly)	1	rs879254405	Chr19: 11210931	-	Ligand-binding	Pathogenic/ Likely pathogenic	D	D	D	(12,59)
9	Frameshift Exon 4 c.316_328delCCC AAGACGTGCT p.(Lys107Argfs*95)	1	LDLR_001035 in LOVD database	Chr19: 11215901-11215915	-	Ligand-binding	Pathogenic	D	D	--	(39)
10	Missense Exon 4 c.552T>G p.(Cys184Trp)	1	LDLR_000858 in LOVD database	Chr19: 11216134	-	Ligand-binding	Likely pathogenic	D	D	D	(40)
11	Missense Exon 5 c.798T>A p.(Asp266Glu)d	1	rs139043155	Chr19: 11217344	0.000032	Ligand-binding	Pathogenic/ Likely pathogenic	D	D	-	(50,55-58,65)
12	Missense Exon 6 c.887G>A p.(Cys296Tyr)	1	rs879254707	Chr19: 11218137	-	Ligand-binding	Likely pathogenic	D	D	D	(51,62)
13	Nonsense Exon 6 c.888C>A p.(Cys296*)	1	rs879254708	Chr19: 11218138	-	Ligand-binding	Pathogenic	D	D	--	(52)
14	Missense Exon 6 c.938 G>A p.(Cys313Tyr)	1	rs875989910	Chr19: 11218188	-	Ligand-binding	Pathogenic/ Likely pathogenic	D	D	D	(63)
15	Missense Exon 7 c.986G>A p.(Cys329Tyr)d	2	rs761954844	Chr19: 11221373	0.000016	EGF precursor homology repeat A	Likely pathogenic	D	D	D	(12,39,50,65)
16	Nonsense Exon 7 c.1048C>T p.(Arg350*)	1	rs769737896	Chr19: 11221435	-	EGF precursor homology repeat A	Pathogenic	D	D	--	(32,51,53)
17	c.1186+1G>T	1	rs730880131	Chr19: 11222316	-	Splice donor site‡, intron 8	Pathogenic/ Likely pathogenic	--	D	--	-
18	Missense Exon 9 c.1202T>A p.(Leu401His)	3	rs121908038	Chr19: 11223969	-	EGF spacer	Likely pathogenic	D	D	D	(12)
19	Missense Exon 9 c.1277 T>C p.(Leu426Pro)	1	rs879254851	Chr19: 11224044	-	EGF spacer	Pathogenic/ conflicting- interpretations-of- pathogenicity	D	D	B	(66)
20	Frameshift Exon 10 c.1478_1479delCT p.(Ser493Cysfs*42)	1	rs869025453	Chr19: 11113652-11113655	0.00003	EGF spacer	Pathogenic/ Likely pathogenic	--	D	--	(39,40)
21	Missense Exon 12 c.1730G>C p.(Trp577Ser)	1	rs138947766	Chr19: 11227559	0.000008	EGF spacer	Pathogenic/ Likely pathogenic	D	D	D	(39)
22	Missense Exon 12 c.1775G>A p.(Gly592Glu)	6	rs137929307	Chr19: 11227604	0.000044	EGF spacer	Pathogenic/ Likely pathogenic	D	D	D	(40,50,65)
23	Nonsense Exon 15 c.2230C>T p.(Arg744*)	1	rs200793488	Chr19: 11233939	0.000004	O-linked sugars	Pathogenic	D	D	-	(62)
C, Genetic variants in APOB
24	Missense Exon 26 c.9175C>T p.(Arg3059Cys)d	1	rs146377316	Chr2: 21230565	0.000008	LDLR binding	Unknown significance	B	B	B	(35,42)
25	Missense Exon 26 c.10580G>A p.(Arg3527Gln)d	1	rs5742904	Chr2: 21229160	0.000275	LDLR binding	Pathogenic	B	D	D	(41)
26	Missense Exon 26 c.10580G>T p.(Arg3527Leu)	1	rs5742904	Chr2: 21229160	-	LDLR binding	Pathogenic	D	D	D	(39,40,41)
27	In-frame deletion Exon 29 c.13480_ 13482delCAG p.(Gln4494del)d	2	rs562574661	Chr2: 21001940-21001945	0.000384	-	Likely pathogenic/ conflicting- interpretations-of- pathogenicity	-	B	-	(41)
D, Genetic variants in ABCG5/8
28	Nonsense ABCG5 Exon 10 c.1336C>T p.(Arg446*)	1	rs199689137	Chr2: 44050063	0.00018	Cytoplasmic	Pathogenic	D	D	-	(43,45,46)
29	Missense ABCG8 Exon 7 c.1083G>A p.(Trp361*)	1	rs137852987	Chr2: 44099233	0.00102	Cytoplasmic	Pathogenic	D	D	-	(47,67)
30	Missense ABCG8 Exon 11 c.1629G>T p.(Arg543Ser)d	1	rs201690654	Chr2, 44102425	0.000215	Transmembrane	Unknown significance	D	D	D	(48,49)
E, Genetic variant in LIPA
31	c.894G>A p. (Q298=)	1	rs116928232	Chr10: 89222511	0.00083	Exon skipping mutation	Pathogenic	--	D	--	(38)
F, Genetic variant in PCSK9
32	Missense Exon 9 c.1486C>T p.(Arg496Trp)	1	rs374603772	Chr1, 55524303	0.000044	LDLR-binding	Unknown significance/ conflicting- interpretations-of- pathogenicity	D	D	D	(68,69)

[i] ^aThe frequency of the identified variants was additionally assessed following in-house exome databases. Novel variants were not found in the Russian 870 exomes and the Northwest Russia 694 exomes databases.

[ii] ^bThe prediction of the pathogenicity was performed using SIFT, PolyPhen-2 and MutationTaster tools if suitable. For two intronic variants, analysis with Human Splicing Finder was performed: These variants alter canonical splice donor sites in introns 6 and 8 of the LDLR gene, respectively.

[iii] ^cPathogenicity prediction for novel variants was performed according to American College of Medical Genetics and Genomics-based classification, for already characterized variants-classification according to ClinVar database.

[iv] ^dThese variants were functionally characterized by ex vivo or in vitro studies. In the case of LDLR <30% of normal receptor activity was seen; in the case of APOB reduction in the binding and uptake of LDL was observed; in the case of ABCG8 the amount of mature protein was decreased. B, benign; D, damaging/disease causing.

In the adult group, pathogenic/likely pathogenic variants were detected in 18 (58%) patients: 13 Patients had FH-causing mutations in the LDLR gene, including 2 novel variants; 3 patients had APOB mutations; and 2 patients had ABCG5/G8 mutations. A total of 17 (95%) mutation positive patients had tendon xanthomas and 13 (72%) had established cardiovascular complications. In the children/adolescent group pathogenic/likely pathogenic variants were detected in 25 (89%) patients: 21 patients had FH-causing mutations in the LDLR gene, including 5 novel variants, 2 patients had APOB mutations and ABCG8 and LIPA mutations were found in a single patient. Additionally, PSCK9 variants of unknown significance were identified in patients from both groups.

In total, 23 mutations were found in the LDLR gene in both cohorts: 7 Novel variants, 3 mutations that have previously reported in Russia and 13 mutations that were identified in other populations. A total of 2 LDLR mutations were common between Saint-Petersburg and Moscow: p.(Leu401His) and p.(Gly592Glu). These variants were detected in 3 and 6 patients, representing 5 and 10% of all FH cases reported in the present study, respectively.

Novel LDLR variants

Novel frame-shift variants in the LDLR gene that lead to truncated proteins were considered certainly pathogenic. Variant c.1684_1691delTGGCCCAA p.(Pro563Hisfs*14) was found in a 16-year-old female with maximal TC levels of 9.6 mmol/l. The c.433_434dupG p.(Val145Glyfs*35) variant was found in a 53-year-old woman with xanthomas and a history of myocardial infarction (MI) at the age of 53. A maximal TC level of 10.3 mmol/l was observed without statin therapy. The patient's father and uncle both died from a MI at the age of 49 and 40, respectively, and were expected to have suffered from FH.

A novel variant in exon 8, c.1186G>C p.(Gly396Arg), was found in a young man (aged 29) who had no family history of either hyperlipidemia or ASCVD. The patient had a maximal TC level of 9.7 mmol/l. During the period of genetic testing, the patient underwent a coronarography that showed preclinical diffuse atherosclerosis (30%) of the anterior interventricular artery. The p.(Gly396Arg) variant was predicted by in silico tools as a pathogenic variant. The mutation was encoded in the EGF-like domain of LDLR, which is known to be important for receptor dissociation in endocytosis and receptor recycling to the cell surface (28), and thus could be regarded as pathogenic. It is hypothesized that this variant was functional as another similar missense variant in the codon, c.1186G>A p.(Gly396Ser), which had previously been found in Finland, was predicted to be disease causing (29).

Another three new missense variants encoded in the ligand-binding domain of LDLR, as well as one splicing variant, were predicted by software tools as disease causing. c.325T>G p.(Cys109Gly), c.401G>C p.(Cys134Ser) and c.616A>C, corresponding to a known protein substitution c.618T>G p.(Ser206Arg), were detected in children from families with a history of hypercholesterolemia. These three patients, aged 11, 7 and 6 years old, respectively, demonstrated the highest LDL-C levels in the children/adolescent group. A splicing variant in intron 6 c.940+1_c.940+4delGTGA was detected in four unrelated individuals. This variant alters a canonical splice donor site. Previously, a similar splicing mutation, which affects 15 nucleotides (c.940_940+14del15), was described in a 21-year-old Spanish man who suffered a premature MI at the age of 16 years (30).

Discussion

Previously, NGS has been successfully used for mutation screening of the LDLR gene and other FH-associated genes in subjects with a clinical diagnosis of definite/possible FH, as well as in patients with CAD with extremely high TC levels (31,32). In the present pilot study using NGS technology for the molecular diagnosis of FH in Russian individuals, mutation screening of the LDLR, APOB, PSCK9, LDLRAP1, ABCG5/8, APOE and LIPA genes in a cohort of 59 probands was performed using NGS technology, which has been widely reported to improve the overall mutation detection rate (33-35). In the present study, pathogenic and likely pathogenic mutations were revealed in 73% of patients with definite/possible FH. Approximately the same percentage has been commonly reported in studies where NGS technology has been applied for FH molecular diagnosis (36,37). It is worth noting that previous publications conducted in Russia applying the routine methods for mutation detection with limited genes (LDLR and APOB) have identified causative mutations in 20-50% of patients with FH (12,14). Moreover, NGS technology has allowed for the inclusion of additional genes that have been linked to FH, which were previously missed by older mutation detection assays (5). The present study was, to the best of our knowledge, the first study to investigate the genetic variation in ABCG5/8 and LIPA among Russian patients with FH.

According to a previous publication, the mutation detection rates in patients with suspected FH varies from 20-90%, depending how rigorous the criteria used for selection of patients were (7). It should be noted that in the present study, the mutation detection rate was higher in the children/adolescent group (89%). Only a few studies with a similar cohorts have been performed. Van der Graaf et al (7) reported that 95% of children (aged 4-18 years) with plasma LDL-C >95th percentile for age and sex, and an autosomal dominant pattern for inherited hypercholesterolemia, have an FH causing mutation. This same study also reported that only 4% of children with LDLR mutations exhibited physical symptoms (tendon xanthomas and an arcus cornealis), which is consistent with previous reports that have stated that only marked differences in LDL-C levels can distinguish children with FH (6,11). Early childhood (1-9 years) is the optimal period for using TC or LDL-C levels to discriminate between individuals with and without FH in the general population (11). Levels of both TC and LDL-C show considerable overlap between adults with and without FH (17). A lower mutation detection rate in the adult group may be due to polygenic inheritance, which may explain phenotypic heterozygous FH being observed in several individuals without monogenic mutations (5).

The present study identified several novel LDLR variants as well as a number of previously reported FH causing mutations in the LDLR and APOB genes. These data expand upon the current knowledge of the spectrum of FH mutations in Russian individuals. Of note, it was shown that the p.(Gly592Glu) in the LDLR gene may be a major FH-associated variant for individuals from the European portion of Russia. At the same time, sequencing of noncanonical FH genes was established for Russian patients with FH and rare ABCG5/8, PSCK9 and LIPA mutations associated with a FH-like phenotype were found.

Identified variants were located mostly in coding regions which correspond to functional protein domains or produce truncated proteins. These variants do not overlap with any genomic regulatory regions. According to ENCODE in the UCSC Genome Browser, Tracks H3K27Ac, DNase Clusters and Txn Factor ChIP (data not shown), there was a highly probable presence of regulatory sequences in exon 1, intron 1-2, 3'-untranslated region (UTR) of the LDLR gene. Introns and 3'UTR were not studied, no mutations were found in exon 1 in the present study. In the present study, 2 identified variants were predicted to alter canonical splice donor sites in introns 6 and 8 of the LDLR gene. However, co-segregation analysis was not performed and there were insufficient numbers of patients to analyze linkage disequilibrium. All patients were carriers of the only one variant.

A proband with a family history of high TC levels was homozygous for a c.894G>A splicing mutation in the LIPA gene, one of the most frequent variants responsible for cholesteryl ester storage disorder (CESD) (38). The variant has previously been found to have an allele frequency of 0.11% (1 in 450 individuals) in a large European population (38). This mutation is known to predominantly result in a non-functional transcript skipping of exon 8, causing the deletion of 24 amino acids (p.Q298=). CESD is associated with reduced activity of lysosomal acid lipase, an enzyme that is involved in intracellular hydrolysis of cholesteryl esters and triglycerides. It has recently been suggested that certain patients with a FH phenotype may have CESD (38).

To the best of our knowledge, the present study is the first to identify mutations in the APOB gene in citizens in Saint-Petersburg. The most common mutations of the APOB gene observed in European individuals, p.(Arg3527Gln), was also found in one patient from Moscow, demonstrating an expected frequency for this region (2-4.5%) (13). The mutation p.(Arg3527Gln) accounts for 6-10% of all FH cases in Europe, but it was not found in the patients from Saint-Petersburg with FH, neither in the present study nor in a previous study where screening was established for this sole mutation (12). The present study also found a rare variant in the same codon, p.(Arg3527Leu), in a patient from Saint-Petersburg. This variant has been reported in single cases from the Netherlands and Poland (39,40).

As APOB mutations can be located outside the routinely analyzed APOB region, NGS allows for effective mutation screening in the entire APOB coding sequence. A rare mutation, p.(Arg3059Cys) reported in the Netherlands (35) was identified in one of the patients from Moscow, who had a family history of FH. This mutation, similar to p.(Arg3527Gln), maps to the region that binds with LDL, and the uptake of LDL particles has been shown to be significantly reduced when using LDL particles from carriers of both mutations compared with controls (35,41).

A known APOB variant, p.(Gln4494del), has been detected for the first time in a Russian individual, to the best of our knowledge. This sequence results in a deletion of 3 nucleotides from exon 29 of APOB mRNA (c.13480_13482delCAG) and leads to the deletion of 1 amino acid residue of the ApoB protein, but otherwise preserves the integrity of the reading frame. The p.(Gln4494del) variant, considered as pathogenic in the UCL-FH mutation database, has been suggested as likely pathogenic or of uncertain significance in certain studies (3,42). Gln4494 in the ApoB tail is important for correct protein conformation (41). Experimental studies have shown that p.(Gln4494del) causes a 40-50% reduction in the binding and uptake of LDL. A previous study investigating secondary structure of the human ApoB using infrared spectroscopy, as well as LDL particle size using dynamic light scattering and electron microscopy, highlighted differences in the secondary structure and in the particle size of the p.(Gln4494del) variant when compared with the structure of the wild-type. These changes may underlie reduced/defective LDL binding capacity of the p.(Gln4494del) variant (41). These findings also support the notion that this mutation is disease causing.

As mutations in the ABCG5 and ABCG8 genes have been shown to potentially cause noticeably elevated cholesterol levels (43), these genes were included in the present analysis. One proband had an ABCG5 variant p.(Arg446*) causing a premature stop codon. The patient presented with xanthomas and had a history of MI. This rare mutation which causes sitosterolemia in homozygous individuals was initially described in Italy in 2007 and later registered in Japan and Germany (44-46). High levels of blood TC and LDL-C as well as low levels of HDL-C are typical for carriers (44,46). From two identified ABCG8 variants, a terminating mutation p.(Trp361*) is the most common mutation causing sitosterolemia (47). The second detected variant p.(Arg543Ser) appears to cause a destabilizing substitution of conserved polar residues in the core of the transmembrane domain of ABCG8(48). In vitro analysis has shown that this mutation decreases the amount of mature ABCG8 protein (49). It should be noted that a patient with this mutation suffered from severe CAD and had a MI at the age of 30. Clinical manifestations of sitosterolemia can be similar to those of FH as ABCG5/8 mutations are paired with extreme hypercholesterolemia (45). Notably, LDL-C levels are significantly increased in certain individuals with sitosterolemia, although the mechanism underlying this is unknown (45), and thus, those cases are occasionally misdiagnosed as FH.

In total, 16 LDLR mutations identified in the present study have been previously reported and predicted to be pathogenic/likely pathogenic. Of these, three variants have been previously found in individuals from Saint-Petersburg and Moscow, as well as in European countries: p.(Gly592Glu), p.(Cys329Tyr) and p.(Leu401His). It is notable that p.(Gly592Glu) is the most frequent mutation in Czech and Polish populations (50). The present study showed that this mutation may be frequent or may even be considered major in Russian individuals.

A further 13 LDLR mutations were described in Russian patients for the first time. Of these, five resulted in production of a truncated protein, and have been reported in citizens of other European countries (36,39,40,51-54). From the seven LDLR missense variants identified in the present study, p.(Asp266Glu), known as FH Cincinnati-1, is the most common in Germany and Austria (50,55), second most common in the Czech Republic (56) and has also been found in Denmark, Norway and USA (57,58). Several loss of cysteine residues, p.(Cys34Gly), p.(Cys184Trp), p.(Cys296Tyr) and p.(Сys313Tyr), encoded in the ligand binding domain of LDLR that are associated with incorrect folding of the protein, have been previously detected in European countries (39,40,51,58-63). A novel mutation from the present study, c.616A>C, corresponded to a known protein substitution c.618T>G p.(Ser206Arg). The p.(Ser206Arg) variant is suggested to be a likely pathogenic mutation as it is located in a strongly conserved ligand-binding repeat (14). This mutation has been found in an individual from Norway and another individual from the Russian city of Petrozavodsk (14,58). c.616A>C leading to the same protein substitution can be assumed to be disease causing.

The present study has some limitations. For example, analysis of introns/3'UTRs of the studied genes was not performed, and co-segregation analysis could not be performed due to an insufficient number of patients for linkage disequilibrium studies.

In conclusion, the mutation spectrum for FH in Russian individuals is similar to that of other European countries. Evidence of this conclusion is that certain LDLR mutations that had initially been found in Russian individuals (12,64) were subsequently identified in European populations, such as p.(Cys249*), p.(Trp422*), p.(Asp601Asn) and p.(Arg410Gly) (39,40,50,51). Mutations in the LDLR gene are very diverse and can be present in any part of the gene; therefore, it was not unexpected that through using NGS, novel LDLR variants were discovered in the present study. NGS allowed for the investigation of an extended list of FH associated genes, and for the first time revealed rare mutations in the ABCG5/8 and LIPA genes in Russian patients with FH.

Supplementary Material

Primers for PCR and subsequent Sanger sequencing.

Phenotypic characteristics of mutation-positive adult patients.

Phenotypic characteristics of mutation-positive patients from the children/adolescent group.

Acknowledgements

Not applicable.

Funding

This work was partly supported by the Russian Science Foundation (grant no. 14-50-00069) and the state assignment of Ministry of science and Higher Education of the Russian Federation for RCMG.

Availability of data and materials

The data that support the findings of this study are available from the corresponding author upon reasonable request. The data are not publicly available due to privacy or ethical restrictions. All novel variants have been submitted to the ClinVar database (ncbi.nlm.nih.gov/clinvar/; IDs: 869387, 869388, 869389, 869390, 869391, 870321, 870329).

Author's contributions

EYZ, OSG, ASG, AMS, SNP designed and conceived the methodology of the present study, organized experiments and performed final interpretation of the data. MVM, SAU, VSG, SPU, SGS, IVA and DMG collected the patient data and assisted with clinical data interpretation. OVR, ONI, NAS, MAF and VVM performed the experiments. YAB, AAP, VVM, MAF and ONI performed the bioinformatics analysis and variant annotation. VVM wrote the first draft of the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

This study was approved by the Ethics Committees of Center for Atherosclerosis and Lipid Disorders of North-Western District Scientific and Clinical Center Named After L.G. Sokolov, Medical Faculty of Saint-Petersburg State University, City Hospital No. 40 (St. Petersburg, Russia) and Research Centre for Medical Genetics (Moscow, Russia) where patients were treated and genetic analysis was performed. Written informed consent was obtained from all patients or their legal representatives before the study.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
