Prognostic value of pre‑treatment maximum standardized uptake value and CRP in radiotherapy of esophageal cancer
- Authors:
- Published online on: May 25, 2021 https://doi.org/10.3892/mco.2021.2308
- Article Number: 146
Abstract
Introduction
Esophageal cancer is associated with poor prognosis and has a 5-year survival rate of 17-34% (1). Therefore, obtaining information on the expected prognosis is important to ensure that more intensive treatment can be provided to patients with poor prognoses. For example, a phase III trial (NEOCRTEC5010) compared the safety and survival outcomes of surgery alone with those of neoadjuvant chemoradiotherapy (CRT) followed by surgery. The results showed improved overall survival (OS) and disease-free survival (DFS) in patients who underwent the combined treatment (2). Nevertheless, esophagectomy after CRT has been linked to a high risk of complications and treatment-related mortality (3,4). Therefore, the availability of additional information regarding the prediction of patient prognosis would allow the provision of more suitable treatments.
The maximum standardized uptake value (SUVmax) is broadly used for the semiquantitative measurement of the maximum 18F-2-fluorodeoxyglucose (18F-FDG) uptake. This value is determined using positron emission tomography (PET) with computed tomography (CT). Since the 18F-FDG reflects tumor glucose metabolism, the SUV is used as a surrogate marker for tumor metabolism (5). Several studies have documented the value of a PET scan for assessing the prognosis of esophageal, head and neck, and non-small-cell lung cancer (1,6-8).
It is established that chronic inflammation induces carcinogenesis and progression of cancer (9). C-reactive protein (CRP) belongs to a family of acute-phase proteins whose plasma concentrations increase in response to inflammation. Following the occurrence of inflammation in tissue cells, CRP is secreted from the liver into the blood (10). Notably, it is upregulated by pro-inflammatory cytokines, such as interleukin-6 (IL-6), IL-8, and tumor necrosis factor-α (TNF-α) (11). Several studies have shown that the elevation of pre-treatment CRP levels is a significant prognostic indicator in patients with esophageal cancer and tends to correlate with TNM staging (12,13). Jurisic et al (14) have shown that TNF-α is also increased in certain types of tumors. Although other markers, such as IL-1β, IL-6, IL-8, IL-10, and monocyte chemoattractant protein-1 (MCP-1), are used in the diagnosis of cancer (15), CRP appears to be a rapid, simple, and cost-effective predictor in clinical practice.
Moreover, Chen et al (16) revealed that elevated levels of CRP are associated with a high metabolic rate and proliferative activity (measured according to the SUVmax) in head and neck carcinoma.
In this study, we aimed to retrospectively evaluate the prognostic values of pre-treatment SUVmax of 18F-FDG-PET and CRP in radiotherapy (RT) of esophageal cancer.
Materials and methods
Study participants
We retrospectively (March 2013-December 2016) researched patients with esophageal squamous cell cancer, which was detected with CT scans at the University of Tokyo Hospital. The clinical TNM stage was determined according to the 7th edition of the American Joint Committee on Cancer staging in esophageal cancer. All patients underwent RT with or without chemotherapy.
Treatment
RT was performed using 6-10 MV photon linear accelerators at doses of 50-60 Gy. The irradiation method was either three-dimensional conformal RT or intensity-modulated RT. The gross tumor volume was defined based on the results of the CT scan, endoscopy, and PET scan, if available. The treatment fields encompassed the tumor bed with 3-5 cm proximal and distal margins and 2 cm lateral margins. Involved-field RT (IFRT) was conducted.
Measurement of CRP
Serum CRP levels were measured in peripheral venous blood samples using a latex turbidimetric immunoassay on day 1 of RT.
Measurement of SUVmax
PET-CT was conducted within 2 weeks prior to the initiation of RT using Aquiduo PCA-7000B (Toshiba Medical Systems Corp.). This system consists of a 16-detector row CT scanner and a lutetium oxyorthosilicate-based PET scanner. Patients, fasted for ≥5 h, received 4.5 MBq/kg (minimum: 180 MBq; maximum: 405 MBq) of 18F-FDG. Data were acquired 60 min after injection. The PET images were captured in the three-dimensional acquisition mode at eight bed positions from the knee to the skull. Transmission imaging was performed using CT (120 kV, 50 mA, 0.5 sec, helical scan) with an axial field of view of 50 cm and matrix size of 512x512. The CT images were reconstructed using true cone-beam tomography. The PET images were iteratively reconstructed using Fourier rebinning and ordered subset expectation maximization for 14 subsets and four iterations.
Regions of interests, representing the areas in the lesions showing the highest accumulation of 18F-FDG, were drawn on the fused PET/CT image. The SUVmax was measured in the regions of interest. The SUVmax was calculated using the following formula:
Statistical analysis
OS and DFS were set as clinical outcomes. Statistical analysis was performed using the EZR version 1.38 software (Saitama Medical Center, Jichi Medical University, Saitama, Japan). The χ2 test and Fisher's exact probability test were used to compare data between the two groups. The Receiver Operating Characteristic was employed to determine the positive predictive value (PPV) and negative predictive lavue (NPV) in patients who had OS event. Univariate analysis was conducted using the Kaplan-Meier method. The statistical significance of differences between survival curves was examined using the log-rank test. Multivariate analysis was performed using the Cox proportional hazards regression model. Carriable selection of step-wise method with Bayesian information criterion was conducted. Univariate and multivariate analyses were considered significant at P<0.05.
Results
Patient characteristics
A total of 69 consecutive patients were included in this analysis. Patient characteristics are shown in Table I. The median age of patients was 65 years (range: 44-95 years); 53 and 16 patients were males (76.8%) and females (23.2%), respectively. Concurrent chemotherapy consisted mainly of nedaplatin (NDP) and tegafur/gimeracil/oteracil (TS-1); another regimen included cisplatin (CDDP) and 5-fluorouracil (5-FU). Two patients (2.9%) underwent only RT. A total of 62 patients (89.8%) received radiation doses of 50.4 Gy/28 Fr or 50 Gy/25 Fr, and seven patients (10.1%) received doses of 60 Gy/30 Fr. The majority of patients (N=58; 84%) had clinical T stage 3 or 4 disease. The most common primary site was the middle thoracic esophagus in 39 patients (56.5%).
According to the χ2 test and Fisher's exact probability test, patients with advanced T stage showed higher CRP (P=0.03) and SUVmax (P<0.01) (Table II).
Cut-off levels
Data on the pre-therapeutic SUVmax were available in 56 patients (81.2%). The median SUVmax was 12.85 (0-31). Therefore, the patients were divided into two groups: SUVmax >12.85 (28 patients, 50%) and SUVmax ≤12.85 (28 patients, 50%). Data on the pre-therapeutic levels of CRP were available for all patients. The median CRP was 0.18 mg/dl (<0.02-31 mg/dl). According to the ROC curve (Fig. 1), 0.790 mg/dl would be suitable cut-off with sensitivity of 67%, specificity of 78%, PPV of 52% and NPV of 87%. But we classified patients into two groups: CRP ≥1 mg/dl (20 patients, 29%) and CRP <1 mg/dl (49 patients, 71%). The reason we chose CRP level of 1 mg/dl as cut-off level of CRP, which is close to 0.790 mg/dl, is to make it easier for clinical use.

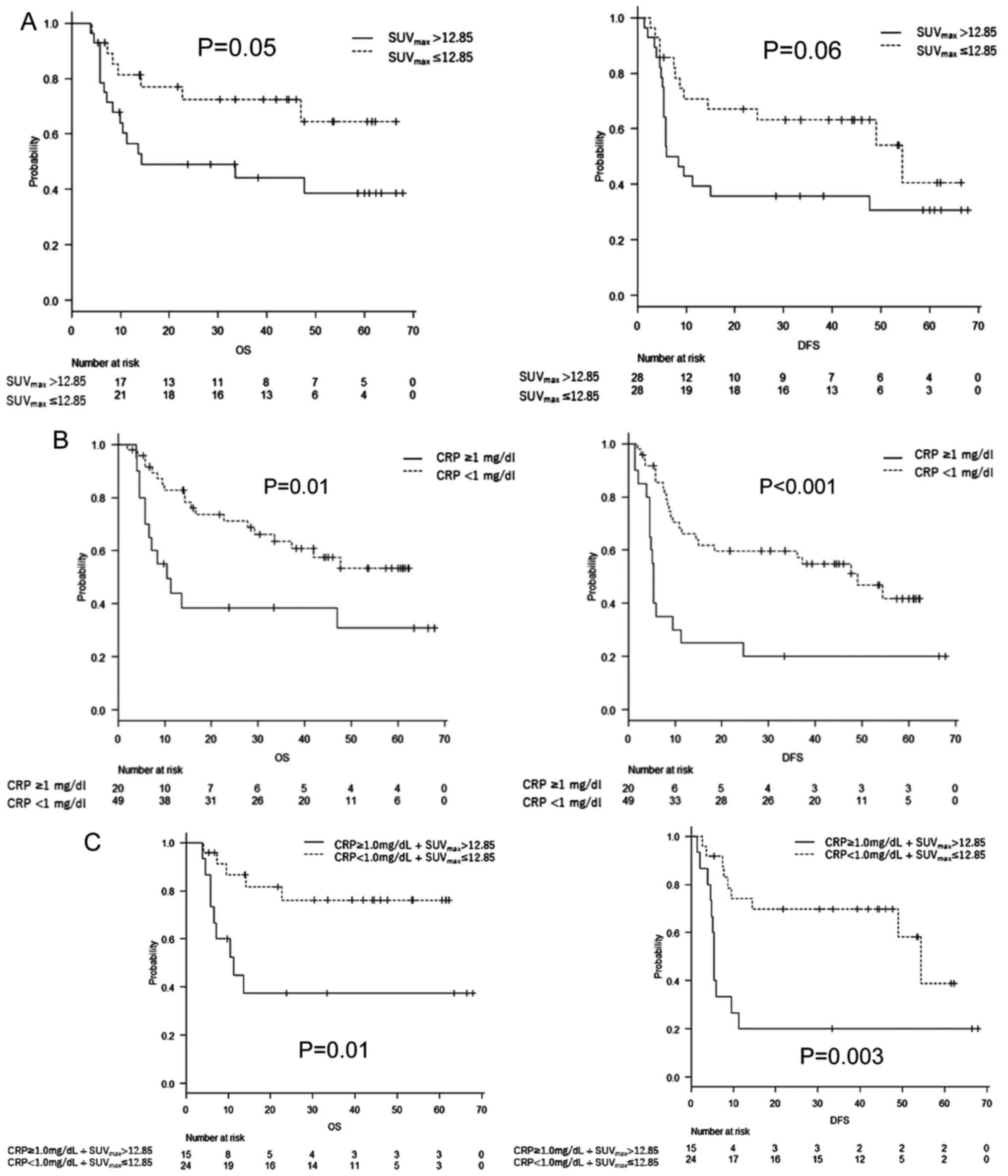

Survival
The median follow-up for censored cases was 45.7 months (3.1-68.9 months). The 2-year OS and DFS rates for all enrolled patients were 61.6% [95% confidence interval (CI): 48.6-72.3%] and 49.5% (95% CI: 37.1-60.8%), respectively. According to the comparison of the Kaplan-Meier curves using a log-rank test (P=0.05), the OS was significantly worse in the SUVmax >12.85 group than in the SUVmax ≤12.85 group, with median survivals of not applicable versus 14.3 months, respectively. The DFS was worse in the elevated SUVmax group; however, the difference was not statistically significant (P=0.06) (Fig. 2A). The OS and DFS were significantly worse in the CRP ≥1 mg/dl group than in the CRP <1 mg/dl group (P=0.01 and P<0.001, respectively) (Fig. 2B). Similarly, the OS and DFS were significantly worse in the elevated CRP and SUVmax groups (P=0.01 and 0.003, respectively) (Fig. 2C).
Correlation between CRP levels/SUVmax levels and survival
In a univariate analysis, age, CRP, SUVmax, and CRP+SUVmax were prognostic factors for OS (Table III). Age, CRP, and CRP+SUVmax were also prognostic factors for DFS (Table IV). A multivariate analysis revealed that the pre-treatment serum CRP levels remained an independent prognostic factor for both OS and DFS (Table V). CRP levels also remained in the final model employing carriable selection of step-wise method with Bayesian information criterion for both OS and DFS (OS: Hazard ratio [HR]; 0.25, 95% CI; 0.08-0.76, P=0.01, DFS: HR; 0.28, 95% CI; 0.12-0.69, P<0.01).
Discussion
In this study, a univariate analysis revealed that pre-treatment CRP is a prognostic factor for OS/DFS, while SUVmax is a prognostic factor for OS.
The CRP may be a prognostic factor due to following mechanism. IL-6 is thought to correlate with CRP (11), and it has been confirmed that an IL-6 signaling pathway stimulates cancer progression through the IL-6 receptor on the surface of prostate cancer cells (17). It is possible that a similar process occurs in esophageal cancer. However, further investigation is warranted to confirm this hypothesis. It has been demonstrated that the SUVmax correlates with tumor aggressiveness in patients with head and neck cancer (18). This may explain its prognostic value in esophageal cancer.
Although a few studies have shown a correlation between the serum CRP levels/SUVmax and OS/DFS in esophageal cancer, esophagectomy was performed in most of them (Table VI) (6,12,13,19,20). This is one of a few studies showing the prognostic value of the pre-treatment SUVmax of 18F-FDG-PET and serum CRP levels in RT of esophageal cancer.
![]() | Table VIPrevious studies showing the association between serum CRP levels/SUVmax and overall survival/disease-free survival in esophageal cancer. |
Accurate prediction of prognosis before treatment would permit the provision of more intensive care. This would include the addition of more cycles of chemotherapy as adjuvant treatment, use of more intensive concurrent chemotherapy regimens (e.g., docetaxel/CDDP/5-FU [DCF]), more careful observation after CRT (e.g., monthly endoscopy or CT), and consideration of salvage esophagectomy.
Higuchi et al (21) reported high effectiveness of concurrent CRT using DCF (DCF-R) in a phase II study. This study showed a favorable response, with a clinical response rate of 52.4% (37.3-67.5%) and a partial response rate of 33.3%. The investigators concluded that DCF-R frequently caused myelosuppression and esophagitis. However, it was highly efficacious and suggested to be a promising regimen in the treatment of advanced esophageal cancer. Another retrospective study revealed improved OS and complete response in a DCF-R group compared with a CDDP/5-FU-R group (22). The researchers also reported that the incidence of grade 3/4 leukopenia was significantly higher in the DCF-R group. Notably, there were no significant intergroup differences in neutropenia, anemia, thrombocytopenia, radiation-induced dermatitis, radiation esophagitis, or late adverse events.
Based on the study conducted by Yamashita et al (23), we used NDP/S-1 in combination with RT in 89.8% of patients. In that study, the investigators reported that a complete response was achieved in 85% of patients who received CRT with NDP/S-1. The 3-year OS rate in those who received definitive CRT or salvage CRT was 54.4 and 39.8%, respectively; 70% received treatment as outpatients.
In this study, we conducted IFRT based on PET. A phase II study reported that, of 63 patients who were treated with IFRT based on PET, only two patients experienced out-of-field loco-regional nodal recurrence (24). The same investigators have retrospectively reported that tendencies toward improved loco-regional progression-free survival and a significantly increased OS rate favored the IFRT arm over the elective nodal irradiation arm (25).
In the Radiation Therapy Oncology Group 9405 study, Minsky et al (26) revealed that high-dose RT does not improve local/regional control or survival. Furthermore, other studies have shown that doses >55 or >60 Gy are associated with higher rates of morbidity after salvage surgery (27,28). Therefore, we suggest that 60 Gy is not necessary even in patients with high CRP/SUVmax.
Regarding the cut-off levels of SUVmax, Huang et al (1) used ROC analysis, Shum et al (20) used MTV 2.5 and MTV 20% (volume higher than a fixed threshold of 20% of the maximum intra-tumoral activity), and Van Westreenen et al (19) used the median SUVmax. We performed an ROC analysis; we found that 10.4 would be the most appropriate threshold, and the area under the curve was 0.64 (95% CI: 0.49-0.8). On the other hand, the median SUVmax was 12.85. We thought that the median SUVmax would be more reliable, and decided to use a SUVmax of 12.85 as the threshold.
Concerning the cut-off levels of CRP, although this study used a latex turbidimetric immunoassay, most published studies have used the immunonephelometry method. The median CRP was 0.18 mg/dl, which did not seem to have any clinical significance. Hence, we decided to use the ROC curve. Since survival in the present study was comparable to that reported in other published studies, we think that the thresholds used in this study are reasonable.
The clinical stage did not remain significant in either the univariate or multivariate analysis. This may be attributed to the inclusion of only CT-visible tumors; patients with disease at an earlier stage may also have poor prognoses.
There were a few limitations in this study. Firstly, we included only CT-visible tumors. Otherwise, the SUVmax would not be precise, and we would have been unable to distinguish whether the levels of CRP were elevated because of the tumor or other infectious causes. Thus, it is uncertain whether these prognostic factors are meaningful in CT-invisible tumors. Furthermore, the CT-visible tumors evaluated in this study included primary sites and metastatic lymph nodes. However, we are unsure whether primary sites and metastatic lymph nodes share similar characteristics. We did not search for adverse effects since we aimed to determine the correlation between SUVmax/CRP and survival. Other limitations of this study are the various types of prescribed doses (we mainly prescribed 60 Gy before 2014); various types of adjuvant chemotherapy (we are currently planning to compare CDDP/5-FU versus NDP/TS-1); the retrospective design; and limited number of patients included.
In conclusion, prognostic prediction based on pre-treatment SUVmax of 18F-FDG-PET and serum CRP levels is possible in RT of esophageal cancer. It is important to consider the provision of more intensive treatment to patients with poor prognoses for better treatment outcome.
Acknowledgements
Not applicable.
Funding
No funding was received.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Authors' contributions
HJ designed the study, analyzed data and wrote the initial draft of the manuscript. TK, YM and AK recruited the patients and collected their clinical data. HY also made substantial contributions to conception of the study and revised the manuscript critically for important intellectual content. KN and OA made substantial contributions to analysis and interpretation of data, were involved in revising the manuscript critically and gave final approval of the version to be published. All the raw data have been assessed by HJ and HY to ensure their legitimacy. All authors read and approved the final version of the manuscript, and agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Ethics approval and consent to participate
Written informed consent was provided by all individuals included in the study at the time of initial data collection. The study was approved by the Institutional Review Board of the University of Tokyo Hospital (Tokyo, Japan) and performed in accordance with the ethical guidelines of the institution and Declaration of Helsinki.
Patient consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
