Introduction

Acute myocardial infarction (AMI) is a subset of acute coronary syndrome that displays high morbidity and mortality (1). In the United States, the estimated annual incidence of AMI is 605,000 new cases and 200,000 recurrent cases, and the mortality is ~14% (2). At present, the treatment strategies for AMI primarily include thrombolytic therapy and primary percutaneous coronary interventions (3). Although blood perfusion in the ischemic region is often rapidly recovered following immediate therapy, recanalization can aggravate myocardial injury, which is known as ischemia/reperfusion (I/R) injury (4). It has been suggested that myocardial I/R injury may decrease the benefits of myocardial reperfusion and worsen clinical outcomes (5). However, to the best of our knowledge, no effective treatment strategy for myocardial I/R injury has been developed to date (6). Therefore, the discovery of novel effective therapeutic strategies for myocardial I/R injury is important.

Tissue kallikrein 1 (TK1), a glycoprotein that belongs to the serine proteinase superfamily, can cleave low-molecular-weight kininogen into a number of bioactive kinin peptides, including kininogens and kallikreins (7). Vasoactive kinins serve a beneficial role in a number of cardiovascular, cerebrovascular and renal diseases (8). A previous study revealed that hTK1 gene-modified mesenchymal stem cells display protective effects against cardiac injury following MI via suppressing apoptosis and inflammation, and promoting neovascularization (9). However, the functional role of TK1 in myocardial I/R injury requires further investigation.

Matrix metallopeptidases (MMPs) are a family of proteinases that possess the ability to degrade and remodel the extracellular matrix (ECM) (10). Adverse ECM remodeling is one of the key pathological processes in myocardial I/R injury (11). MMP activities are inhibited by tissue inhibitors of matrix metalloproteinases (TIMPs), of which there are four subtypes, TIMP1-4 (12). TIMP1 may serve as a plasma biomarker for predicting prognosis following MI (13). However, to the best of our knowledge, the potential role of TIMP1 in myocardial I/R injury has not been previously reported. Our previous study successfully constructed an adenovirus (Ad) vector containing hTK1 and hTIMP1 genes (14). In the present study, the beneficial effects of the co-expression of hTK1 and hTIMP1 genes on myocardial I/R injury in vivo and in vitro were assessed using the aforementioned Ad vector.

Materials and methods

Animals and treatments

A total of 30 male Sprague-Dawley rats (weight, 200–220 g; age, 4–6 weeks) were purchased from Beijing Vital River Laboratory Animal Technology Co., Ltd.. Rats were randomly divided into the following three groups (n=10 per group): i) Sham; ii) I/R; and iii) I/R + Ad-hTK1/hTIMP1. All rats were housed in an environment of the constant temperature (22±2°C) and humidity (55±5%) with 12-h light/dark cycles, and ad libitum access to food and water. At 1 week prior to myocardial I/R injury, rats in the I/R + Ad-hTK1/hTIMP1 group were intravenously injected with recombinant Ad vector containing hTK1 and hTIMP1 genes (Ad-hTK1/hTIMP1; 5×1012 gc/kg). At the same time point, rats in the I/R and sham groups were intravenously injected with the control vector (Ad-EGFP; 5×1012 gc/kg). The Ad-hTK1/hTIMP1 and Ad-EGFP were constructed and maintained in our laboratory (Fujian Provincial Hospital Key Laboratory of Geriatrics, Fuzhou, China). All animal experiments were conducted in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals (15), and approved by the Institutional Ethics Committee for Laboratory Animal Care of Fujian Provincial Hospital (approval no. K2019-01-038).

Cell culture and transfection

Rat cardiac microvascular endothelial cells (CMVECs; LifeLine Cell Technology, LLC) were cultured in Dulbecco's modified Eagle's medium (DMEM; Gibco; Thermo Fisher Scientific, Inc.) supplemented with 20% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.), 100 U/ml penicillin (Gibco; Thermo Fisher Scientific, Inc.) and 100 µg/ml streptomycin (Gibco; Thermo Fisher Scientific, Inc.) at 37°C in an air sealed chamber. CMVECs were transfected with Ad-hTK1/hTIMP1 or the control vector (Ad-EGFP), according to a previous study (16).

Myocardial I/R injury protocol

The induction of myocardial I/R injury in the present study was performed as previously described (17), with a few modifications. Briefly, rats were anesthetized by the intraperitoneal injection of pentobarbital sodium (40 mg/kg) and were mechanically ventilated. The heart was exposed via a thoracotomy and subsequent opening of the pericardium. The left anterior descending coronary artery was ligated with a slipknot using a 7-0 silk suture. Ischemia of the anterior wall of the left ventricle was confirmed by observation of ST-segment elevation on the electrocardiogram. The heart was immediately placed back into the thoracic cavity and the chest was closed using a 4-0 silk suture. Following ischemia for 30 min, the slipknot was released to allow for myocardial reperfusion. Rats in the sham group underwent an identical procedure, but ligation of the left anterior descending coronary artery was not performed. At 24 h post-surgery, echocardiographic measurements were conducted and blood samples (2 ml) were collected from the carotid artery of each rat. All rats were euthanized by the intraperitoneal injection of an overdose of pentobarbital sodium (120 mg/kg). Death was verified by cessation of spontaneous breathing and the heartbeat. Subsequently, cardiac tissues were collected for use in subsequent experiments.

Establishment of the cell model with hypoxia/reoxygenation (H/R) treatment

The cell model with H/R treatment was established as previously described (18). Briefly, CMVECs were cultured in serum- and glucose-free DMEM in a hypoxic chamber (1% O2) at 37°C for 6 h. Subsequently, CMVECs were maintained in DMEM containing 20% FBS in normoxic conditions (21% O2) at 37°C for 12 h for reoxygenation.

Histological staining

Rat cardiac tissues were fixed in 4% paraformaldehyde (Beyotime Institute of Biotechnology) at 4°C for 24 h, embedded in paraffin and cut into 4 µm-thick sections. For haematoxylin and eosin (H&E) staining, sections were stained with haematoxylin for 3–5 min and 1% eosin for 5 min at room temperature. For Masson and Sirius red staining, sections were stained using the Masson's Trichrome Stain kit and the Sirius Red Stain kit (both Beijing Solarbio Science & Technology Co., Ltd.) according to the manufacturer's protocol, respectively. Stained sections were viewed and imaged at ×200 magnification using an inverted optical light microscope (Olympus Corporation).

Triphenyl-tetrazolium-chloride (TTC) staining

TTC staining was performed to measure the myocardial infarct size as previously described (19). Briefly, hearts were harvested and perfused with ice-cold PBS. Subsequently, hearts were cut into 2-mm-thick slices and incubated with 1% TTC (Sigma-Aldrich; Merck KGaA) diluted in 0.9% sodium chloride for 30 min at 37°C, followed by fixation with 4% paraformaldehyde at room temperature for 30 min. Then, stained slices were placed under natural light and imaged using a Canon EOS 2000D digital camera. The infarct area was quantified using ImageJ v1.8.0 software (National Institutes of Health).

Echocardiographic measurement

Rats were anaesthetized by the intraperitoneal injection of pentobarbital sodium (40 mg/kg) and fixed in the supine position. Subsequently, two cardiac function parameters, left ventricular fractional shortening (LVFS) and left ventricular ejection fraction (LVEF), were assessed using a transthoracic echocardiography system (VisualSonics, Inc.).

Immunofluorescence staining

CD31, a marker of endothelial cells, immunofluorescence staining was performed to detect microvessels. Rat cardiac tissues were rapidly frozen at −20°C and cut into 6 µm-thick sections using a freezing microtome (Leica Microsystems GmbH). Sections were fixed in 4% paraformaldehyde at room temperature for 30 min and washed with PBS three times. Following blocking in Immunol Staining Blocking Buffer (Beyotime Institute of Biotechnology) at room temperature for 15 min, sections were incubated with an anti-CD31 primary antibody (cat. no. ab222783; 1:100; Abcam) overnight at 37°C. Then, sections were incubated with a FITC-labelled goat anti-rabbit IgG secondary antibody (cat. no. A0562; 1:200; Beyotime Institute of Biotechnology) at room temperature for 1 h. Stained sections were observed and imaged at ×200 magnification using a confocal laser-scanning microscope (Leica Microsystems GmbH). The fluorescent density of microvessels was analysed using ImageJ v1.8.0 software.

Immunohistochemistry

Rat cardiac tissues were fixed in 4% paraformaldehyde (Beyotime Institute of Biotechnology) at 4°C for 24 h, embedded in paraffin and cut into 4 µm-thick sections. Following blocking in Immunol Staining Blocking Buffer at room temperature for 15 min, sections were incubated with an anti-von Willebrand Factor (vWF) primary antibody (cat. no. ab6994; 1:200; Abcam) overnight at 4°C. Subsequently, sections were incubated with a biotinylated mouse anti-rabbit IgG secondary antibody (cat. no. bs-0295M; 1:100; BIOSS) at room temperature for 30 min. Sections were stained with dyaminobenzidine (Beyotime Institute of Biotechnology) for 10 min and haematoxylin for 3–5 min at room temperature. Stained sections were visualized and imaged at ×200 magnification using an inverted optical light microscope (Olympus Corporation).

Reverse transcription-quantitative PCR (RT-qPCR)

Total RNA was extracted from rat cardiac tissues using TRIzol® reagent (Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol. Total RNA was reverse transcribed into cDNA using the ReverTra Ace qPCR RT kit (Toyobo Life Science), according to the manufacturer's protocol. Subsequently, qPCR was performed using a SYBR Green PCR master mix (Takara Biotechnology Co., Ltd.) on a LightCycler 480 instrument (Roche Diagnostics). The following thermocycling conditions were used for qPCR: Initial denaturation at 95°C for 30 sec; and 40 cycles of amplification at 95°C for 5 sec, 60°C for 20 sec and 72°C for 10 sec. The following primers were used for qPCR: MMP2 forward, 5′-GGGAATGAGTACTGGGTCTATT-3′ and reverse, 5′-CCAGTTAAAGGCAGCGTCTA-3′; MMP9 forward, 5′-GATCAGCCGGGAACGTATCT-3′ and reverse, 5′-AACTACAACGCCAGAAGTAT-3′; GAPDH forward, 5′-AACTTGGCATCGTGGAAGG-3′ and reverse, 5′-GTGGATGCAGGGATGATGTTC-3′. mRNA expression levels were quantified using the 2−∆∆Cq method (20) and normalized to the internal reference gene GAPDH.

Western blotting

Total protein was isolated from rat cardiac tissues and CMVECs using RIPA buffer (Beyotime Institute of Biotechnology) containing 1% protease inhibitor. Protein concentrations were determined using the BCA kit (Beyotime Institute of Biotechnology). Proteins (40 µg) were separated via 8 or 15% SDS-PAGE and subsequently transferred to PVDF membranes (MilliporeSigma). Following blocking in 5% skimmed milk at room temperature for 2 h, the membranes were incubated overnight at 4°C with the following primary antibodies (all purchased from Abcam): Anti-TK1 (cat. no. ab28289; 1:1,000), anti-TIMP1 (cat. no. ab109125; 1:1,000), anti-MMP2 (cat. no. ab92536; 1:1,000), anti-MMP9 (cat. no. ab76003; 1:1,000), anti-GAPDH (cat. no. ab181602; 1:10,000), anti-γ-H2A.X (cat. no. ab81299; 1:5,000), anti-H2A.X (cat. no. ab11175; 1:1,000) and anti-TATA binding protein (TBP; cat. no. ab63766; 1:1,000). Subsequently, the membranes were incubated with a HRP-conjugated goat anti-rabbit IgG secondary antibody (cat. no. BA1054; 1:5,000; Wuhan Boster Biological Technology, Ltd.) at room temperature for 2 h. Protein bands were visualized using an enhanced chemiluminescence kit (Thermo Fisher Scientific, Inc.) and a chemiluminescence imaging system (Bio-Rad Laboratories, Inc.). Protein expression levels were semi-quantified using ImageJ v1.8.0 software with GAPDH and TBP as the loading controls.

Assessment of oxidative stress

Following reperfusion for 24 h, blood samples were collected from the carotid artery of anesthetized rats. To obtain serum samples, blood samples were maintained at room temperature for 2 h prior to centrifugation at 1,000 × g for 20 min at 4°C. Serum levels of superoxide dismutase (SOD), malondialdehyde (MDA), glutathione (GSH), catalase (CAT) and glutathione-S-transferase (GST) were measured using corresponding kits (SOD, cat. no. BC0175; MDA, cat. no. BC0025; GSH, cat. no. BC1175; CAT, cat. no. BC0205; GST, cat. no. BC0350; all purchased from Beijing Solarbio Science & Technology Co., Ltd.) according to the manufacturer's protocols.

Following H/R treatment, intracellular ROS production in CMVECs was detected using CellROX Green reagent (Thermo Fisher Scientific, Inc.). Cells were incubated with 5 µM CellROX Green reagent at 37°C for 30 min and washed three times with PBS. Subsequently, cells were incubated with DAPI (Beyotime Institute of Biotechnology) at room temperature for 10 min. Stained cells were observed and imaged at ×200 magnification using a confocal laser-scanning microscope (Leica Microsystems GmbH). The ratio of green fluorescence/nuclei staining in each image was calculated.

Cell viability assay

CMVECs were seeded (1×103 cells/well) into 96-well plates and treated with H/R. Cells were washed with PBS and incubated with 0.5 mg/ml MTT solution at 37°C for 4 h. The incubation solution was discarded and the formazan crystals were dissolved in 150 µl DMSO. The absorbance was measured at a wavelength of 570 nm using a microplate reader (Thermo Fisher Scientific, Inc.).

Wound healing assay

CMVECs were seeded (5×105 cells/well) into 6-well plates and cultured in FBS-free medium until cells reached 90% confluence. The cell monolayer was scraped using a sterile 200 µl pipette tip and washed twice with sterile PBS. The remaining adherent cells were treated with H/R and then cultured for 48 h in FBS-free medium. Images of the wound at ×100 magnification were captured at 0 and 48 h using an inverted optical light microscope (Olympus Corporation).

Transwell assay

CMVECs (5×104) were seeded into the upper chambers of the Transwell inserts (pore size, 8 µm; EMD Millipore) with FBS-free medium. DMEM supplemented with 20% FBS was plated into the lower chambers. Following treatment with H/R and cell culture for 48 h, migratory cells were fixed in 4% paraformaldehyde at room temperature for 30 min and stained with 0.1% crystal violet (Beyotime Institute of Biotechnology) at room temperature for 15 min. Following washing twice with PBS, migratory cells were observed and imaged at ×200 magnification using an inverted optical light microscope (Olympus Corporation) and the number of cells was quantified for analysis.

Tube formation assay

For the tube formation assay, 96-well plates were coated with Matrigel (BD Biosciences) and incubated at 37°C for 30 min. CMVECs were seeded (1×104 cells/well) into the 96-well plates and treated with H/R. After culturing at 37°C for 24 h, capillary-like tubes were observed and imaged at ×200 magnification using an inverted optical light microscope (Olympus Corporation). Tube length was quantified using ImageJ v1.8.0 software.

Statistical analysis

Data are presented as the mean ± SD. All experiments were conducted with at least three independent repeats. Comparisons among multiple groups were analysed using one-way ANOVA followed by Bonferroni's post hoc test. Statistical analyses were performed using SPSS software (version 22.0; IBM Corp.). P<0.05 was considered to indicate a statistically significant difference.

Results

Ad-hTK1/hTIMP1 significantly ameliorates myocardial injury and improves cardiac function in myocardial I/R model rats

Compared with the control vector, Ad-hTK1/hTIMP1 injection notably increased the protein expression levels of hTK1 and hTIMP1 in rat hearts (Fig. S1A), which demonstrated that hTK1 and hTIMP1 were expressed in rat hearts after gene delivery. Moreover, the H&E staining results demonstrated that myocardial cells in sham rats were well-arranged and displayed intact muscle fibres, whereas myocardial cells were irregularly arranged and obvious necrosis was observed in the myocardium following myocardial I/R injury (Fig. 1A). Injection with Ad-hTK1/hTIMP1 partly ameliorated histopathological alterations in myocardial I/R model rats. Furthermore, the Masson and Sirius red staining results displayed obvious collagen deposition in the myocardium following myocardial I/R, which was notably reduced by Ad-hTK1/hTIMP1 (Fig. 1A). Furthermore, the results demonstrated that I/R treatment significantly increased myocardial infarct size compared with sham rats (Fig. 1B), whereas Ad-hTK1/hTIMP1 significantly decreased myocardial infarct size in myocardial I/R model rats. The results also demonstrated that LVFS and LVEF in myocardial I/R model rats were significantly reduced compared with sham rats, but these alterations were significantly reversed by Ad-hTK1/hTIMP1 (Fig. 1C and D). The aforementioned results indicated that Ad-hTK1/hTIMP1 significantly alleviated myocardial injury and improved cardiac function in myocardial I/R model rats.

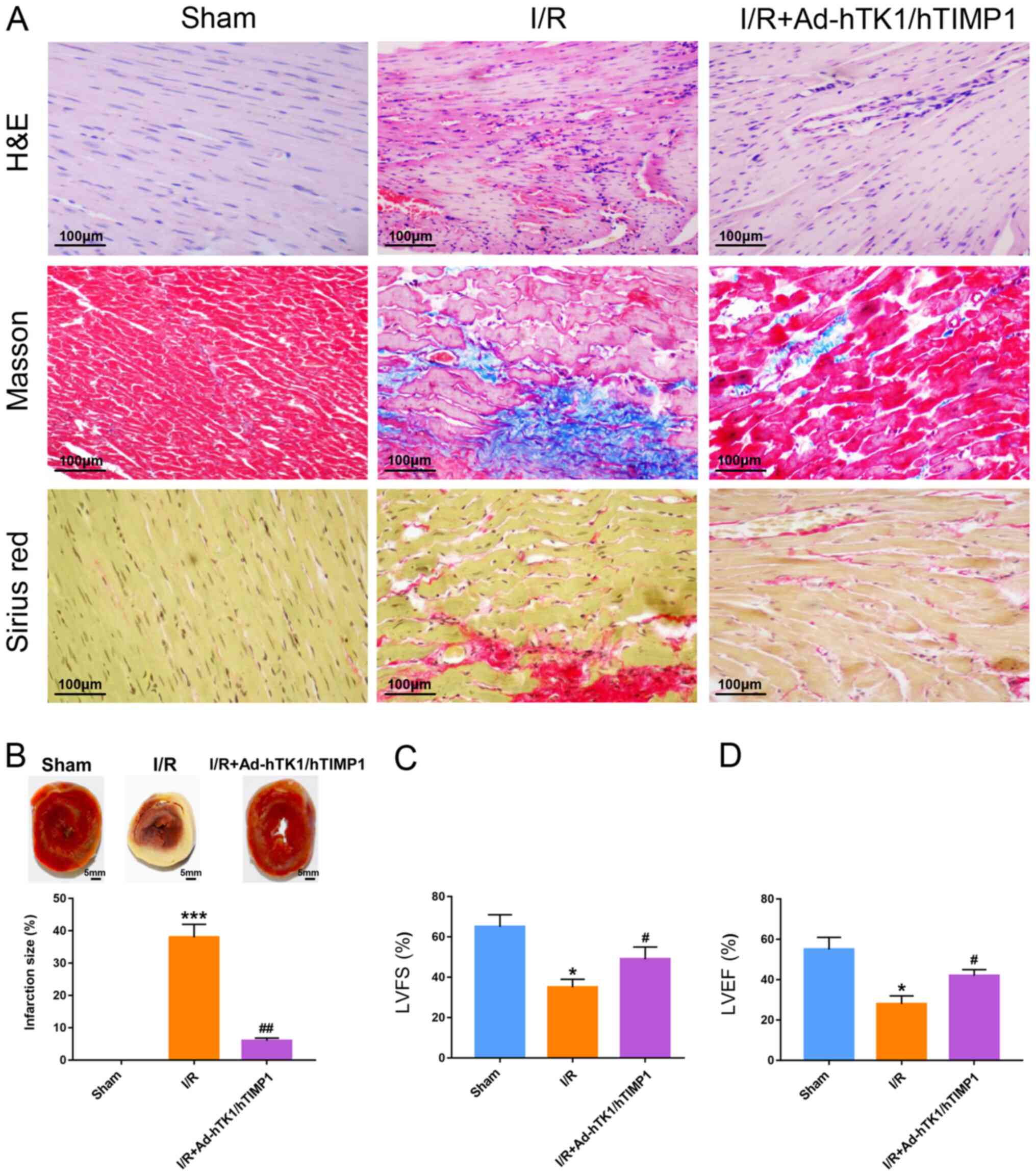

Figure 1. Ad-hTK1/hTIMP1 significantly ameliorates myocardial injury and improves cardiac function in myocardial I/R model rats. (A) H&E, Masson and Sirius red staining were performed on cardiac tissue sections of rats in the sham, I/R and I/R + Ad-hTK1/hTIMP1 groups. Blue in Masson-stained sections and red in Sirius red-stained sections represent collagen deposition. Scale bar, 100 µm. (B) Myocardial infarction size was measured via triphenyl-tetrazolium-chloride staining. Scale bar, 5 mm. Echocardiographic measurement of the two cardiac function parameters (C) LVFS and (D) LVEF. *P<0.05 and ***P<0.001 vs. Sham; #P<0.05 and ##P<0.01 vs. I/R. Ad, adenovirus; hTK1, human tissue kallikrein 1; hTIMP1, human tissue inhibitors of matrix metalloproteinase 1; I/R, ischemia/reperfusion; LVFS, left ventricular fractional shortening; LVEF, left ventricular ejection fraction.

Ad-hTK1/hTIMP1 promotes microvessel formation, and reduces MMP2 and MMP9 expression levels in myocardial I/R model rats

The microvessels in rat hearts were detected via CD31 immunofluorescence staining (Fig. 2A). The fluorescence density of microvessels in the myocardium of myocardial I/R model rats was significantly lower compared with sham rats, and was significantly enhanced following Ad-hTK1/hTIMP1 treatment (Fig. 2B). Furthermore, Ad-hTK1/hTIMP1 markedly increased the number of vWF-positive cells in the myocardium of myocardial I/R model rats (Fig. 2C). The results also indicated that compared with the sham group, I/R treatment significantly increased MMP2 and MMP9 mRNA and protein expression levels, and Ad-hTK1/hTIMP1 significantly downregulated MMP2 and MMP9 expression levels in myocardial I/R model rats (Fig. 2D-F).

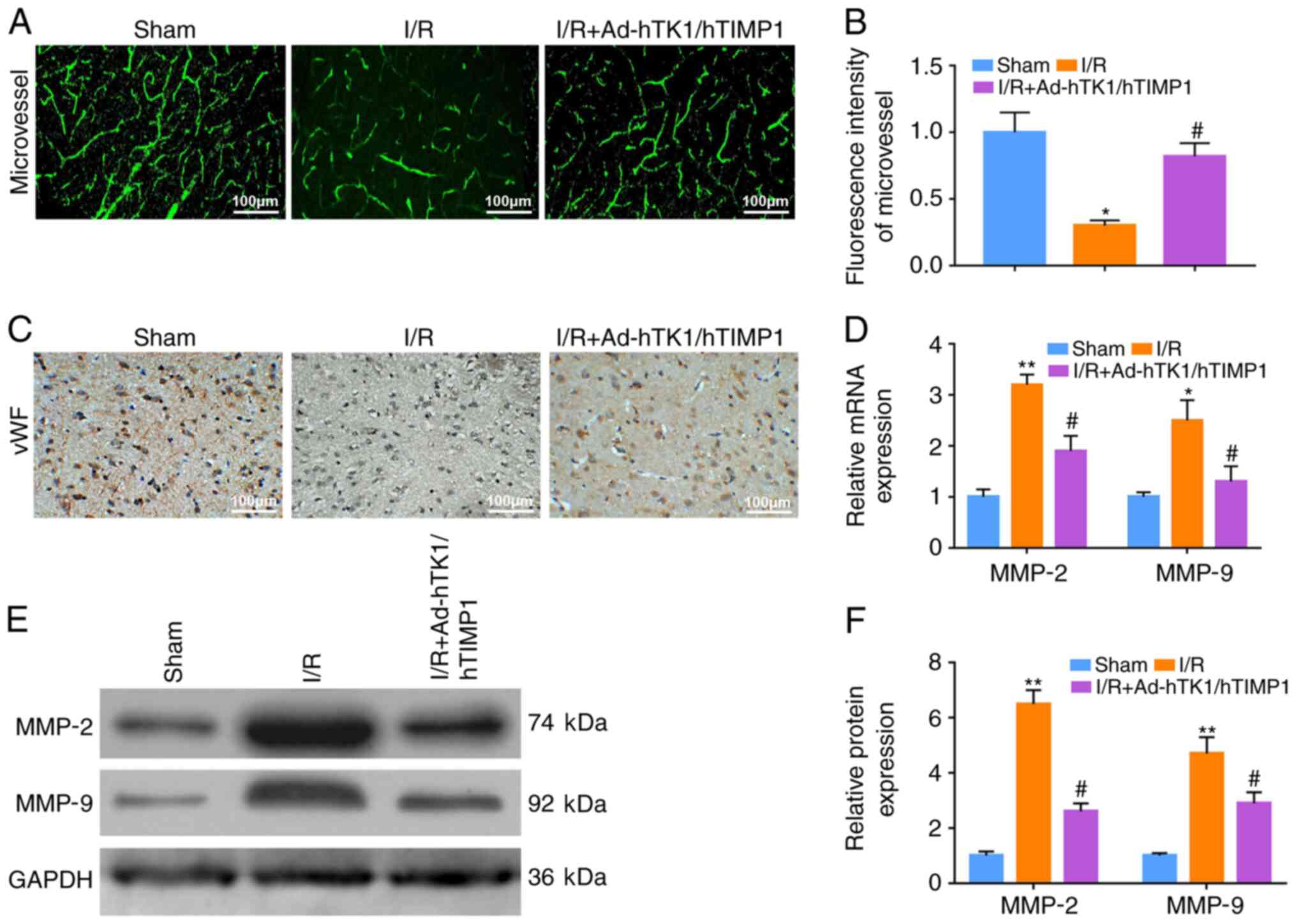

Figure 2. Ad-hTK1/hTIMP1 promotes microvessel formation, and reduces MMP2 and MMP9 expression levels in myocardial I/R model rats. Microvessels in the myocardium of rats in the sham, I/R and I/R + Ad-hTK1/hTIMP1 groups were (A) detected via immunofluorescence staining using an anti-CD31 primary antibody and (B) quantified. Scale bar, 100 µm. (C) Immunohistochemical staining of vWF-positive cells in the myocardium of rats in the sham, I/R and I/R + Ad-hTK1/hTIMP1 groups. Scale bar, 100 µm. (D) MMP2 and MMP9 mRNA expression levels in rat hearts. MMP2 and MMP9 protein expression levels in rat hearts were (E) determined via western blotting and (F) semi-quantified. *P<0.05 and **P<0.01 vs. Sham; #P<0.05 vs. I/R. Ad, adenovirus; hTK1, human tissue kallikrein 1; hTIMP1, human tissue inhibitors of matrix metalloproteinase 1; MMP, matrix metallopeptidase; I/R, ischemia/reperfusion; vWF, von Willebrand Factor.

Ad-hTK1/hTIMP1 significantly reduces oxidative stress in myocardial I/R model rats

Subsequently, serum levels of oxidative stress biomarkers were measured. The results indicated that GSH serum levels, and SOD, CAT and GST activities in myocardial I/R model rats were significantly decreased compared with sham rats. However, Ad-hTK1/hTIMP1 significantly reversed I/R-induced effects on oxidative stress in myocardial I/R model rats (Fig. 3A-D). Compared with sham rats, the serum level of MDA in myocardial I/R model rats was significantly increased, which was significantly reduced by Ad-hTK1/hTIMP1 (Fig. 3E). The results indicated that Ad-hTK1/hTIMP1 significantly reduced oxidative stress in myocardial I/R model rats.

Figure 3. Ad-hTK1/hTIMP1 significantly reduces oxidative stress in myocardial I/R model rats. Measurement of serum levels of oxidative stress biomarkers, including (A) GSH, (B) SOD, (C) CAT, (D) GST and (E) MDA, in rats in the sham, I/R and I/R + Ad-hTK1/hTIMP1 groups. *P<0.05 and **P<0.01 vs. Sham; #P<0.05 vs. I/R. Ad, adenovirus; hTK1, human tissue kallikrein 1; hTIMP1, human tissue inhibitors of matrix metalloproteinase 1; I/R, ischemia/reperfusion; GSH, glutathione; SOD, superoxide dismutase; CAT, catalase; GST, glutathione-S-transferase; MDA, malondialdehyde.

Ad-hTK1/hTIMP1 significantly enhances H/R-treated CMVEC proliferation, migration and tube formation

Following transfection with Ad-hTK1/hTIMP1, the protein expression levels of hTK1 and hTIMP1 in CMVECs were notably increased compared with the control vector (Fig. S1B), demonstrating the successful transfection of Ad-hTK1/hTIMP1 in CMVECs. Subsequently, the cell model with H/R treatment was established in CMVECs. Compared with the control group, CMVEC proliferation in the H/R group was significantly suppressed, whereas Ad-hTK1/hTIMP1 significantly enhanced proliferation in H/R-treated CMVECs (Fig. 4A). Furthermore, H/R treatment notably inhibited CMVEC migration at 48 h compared with the control group, and Ad-hTK1/hTIMP1 considerably attenuated the inhibitory effect of H/R treatment (Fig. 4B). Furthermore, the Transwell assay results demonstrated that compared with the control group, the number of migratory CMVECs was significantly decreased following treatment with H/R, which was significantly increased by Ad-hTK1/hTIMP1 (Fig. 4C and D). Additionally, compared with the control group, tube lengths in the H/R group were significantly reduced, which was significantly ameliorated by Ad-hTK1/hTIMP1 (Fig. 4E and F).

Figure 4. Ad-hTK1/hTIMP1 significantly enhances H/R-treated CMVEC proliferation, migration and tube formation. The cell model with H/R treatment was established in CMVECs. (A) CMVEC proliferation was detected by performing the MTT assay. (B) CMVEC migration was assessed by conducting wound healing assays. The area between the two red lines indicates the wound area. Scale bar, 200 µm. CMVEC migration was also (C) measured by performing a Transwell assay and (D) quantified. Scale bar, 100 µm. CMVEC tube formation was (E) assessed by conducting a tube formation assay and (F) quantified. Scale bar, 100 µm. *P<0.05 and **P<0.01 vs. Control; #P<0.05 vs. H/R. Ad, adenovirus; hTK1, human tissue kallikrein 1; hTIMP1, human tissue inhibitors of matrix metalloproteinase 1; H/R, hypoxia/reoxygenation; CMVEC, cardiac microvascular endothelial cells; I/R, ischemia/reperfusion.

Ad-hTK1/hTIMP1 significantly decreases intracellular ROS production and γ-H2A.X expression in H/R-treated CMVECs

The ratio of green fluorescence/nuclei staining of the H/R group was significantly higher compared with the control group, indicating that intracellular ROS production in CMVECs was significantly enhanced following H/R treatment (Fig. 5A). However, Ad-hTK1/hTIMP1 significantly reduced intracellular ROS production in H/R-treated CMVECs (Fig. 5B). Furthermore, the relative protein expression levels of γ-H2A.X in H/R-treated CMVECs were significantly increased compared with the control group. By contrast, γ-H2A.X expression levels in H/R-treated CMVECs were significantly decreased by Ad-hTK1/hTIMP1 (Fig. 5C and D).

Figure 5. Ad-hTK1/hTIMP1 significantly decreases intracellular ROS production and γ-H2A.X expression levels in H/R-treated CMVECs. (A) Measurement of intracellular ROS (green fluorescence) in CMVECs. Nuclei were labelled using DAPI (blue fluorescence). Scale bar, 100 µm. (B) The ratio of green fluorescence/nuclei staining was quantified. γ-H2A.X and H2A.X protein expression levels in CMVECs were (C) determined via western blotting and (D) semi-quantified. **P<0.01 vs. Control; #P<0.05 vs. H/R. Ad, adenovirus; hTK1, human tissue kallikrein 1; hTIMP1, human tissue inhibitors of matrix metalloproteinase 1; ROS, reactive oxygen species; H/R, hypoxia/reoxygenation; CMVEC, cardiac microvascular endothelial cells; H2A.X, H2A.X variant histone; TBP, TATA binding protein.

Discussion

Collagen deposition due to an imbalance of myocardial ECM deposition and degradation following myocardial I/R injury may lead to myocardial fibrosis, which may induce myocardial pathological remodeling and decrease cardiac function (21). MMPs and their inhibitors, TIMPs, have been reported to be vital regulators in ECM remodelling (22). A previous study reported that a substantial increase in MMP9 and MMP2 expression levels was positively correlated with the degree of left ventricular fibrosis in a mouse model of pressure overload (23). Additionally, a previous study demonstrated that MMP9 and MMP2 expression levels were significantly increased in myocardial I/R model mice compared with sham mice (24). In the present study, compared with sham rats, MMP9 and MMP2 mRNA and protein expression levels were significantly increased following myocardial I/R injury, but significantly reduced following Ad-hTK1/hTIMP1 injection. Meanwhile, a notable decrease in collagen deposition in the myocardium of myocardial I/R model rats following Ad-hTK1/hTIMP1 treatment was also observed in the present study, which may be attributed to exogenous TIMP1. In addition, a previous study reported that exogenous hTK1 gene delivery decreases infarct size and improves cardiac function following myocardial I/R injury by limiting post-infarct ventricular remodeling via inhibition of NF-κB activation (25). Furthermore, hTK1-modified mesenchymal stem cells have been demonstrated to exhibit enhanced beneficial effects on cardiac injury following MI, which are primarily manifested as promoting cardiomyocyte survival, inhibiting ventricular remodeling and improving cardiac function (9). The aforementioned results indicated the protective role of hTK1 gene against cardiac injury in ischemic heart diseases. Consistently, the present study indicated that Ad-hTK1/hTIMP1 significantly ameliorated myocardial injury, decreased infarct size and improved cardiac function following myocardial I/R injury. Therefore, the results suggested that Ad-hTK1/hTIMP1 displayed its protective effects of alleviating cardiac injury and preventing cardiac remodeling after myocardial I/R injury via the co-expression of hTK1 and hTIMP1 genes.

I/R can cause vascular endothelial injury via a number of different mechanisms, including pH change induced cytotoxicity, oxidative stress and inhibition of endothelial nitric oxide synthase (26). According to the American College of Cardiology/American Heart Association guidelines, clinical treatments that minimize microvascular damage should be prioritized when attempting to protect the injured myocardium (27). Therefore, any treatment that can promote angiogenesis may be an effective therapeutic strategy for myocardial I/R injury. It has been previously reported that exogenous TK1 administration can significantly enhance vascular density in the peri-infarction region following myocardial infarction (28) or cerebral cortex infarction (29). TIMP1 has also been reported to facilitate blood vessel formation via inhibiting MMP9 in vitro (30). Consistently, the present study demonstrated that co-treatment of hTK1 and hTIMP1 genes significantly increased the microvessel density in the myocardium of myocardial I/R model rats. It was also demonstrated that the number of vWF [a biomarker of angiogenesis (31)]-positive cells was significantly increased by Ad-hTK1/hTIMP1 in the myocardium of myocardial I/R model rats. Furthermore, in vitro experiments demonstrated that Ad-hTK1/hTIMP1 significantly ameliorated H/R-induced suppression of CMVEC proliferation and migration. Ad-hTK1/hTIMP1 also significantly increased tube formation in H/R-treated CMVECs. The results of the present study indicated the prominent effects of co-expression of hTK1 and hTIMP1 genes on promoting angiogenesis following I/R injury, which may serve a key role in improving myocardial I/R injury.

Oxidative stress is an important pathological process that contributes to myocardial I/R injury (32) and can damage all components of the cell, including DNA, proteins and lipids (33). Previous research has reported that any treatment that can reduce oxidative stress may attenuate myocardial I/R injury (34–36). It has been previously reported that hTK1 can improve erectile dysfunction of streptozotocin-induced diabetic model rats and attenuate salt-induced renal fibrosis via inhibition of oxidative stress (8,37). Furthermore, a previous study demonstrated that free TIMP1 and magnetic nanoparticle-bound TIMP1 significantly reduced ROS production in HIV-infected neuroblastoma cells (38). In the present study, Ad-hTK1/hTIMP1 significantly reduced oxidative stress levels in myocardial I/R model rats and H/R-treated CMVECs. γ-H2A.X is H2A.X (a specialized histone H2A variant) phosphorylated at Ser 139 via ATM serine/threonine kinase and ATR serine/threonine kinase (39). γ-H2A.X is widely considered as a marker of DNA damage (40,41). The results of the present study demonstrated that Ad-hTK1/hTIMP1 significantly decreased γ-H2A.X expression in H/R-treated CMVECs, indicating reduced DNA damage in H/R-treated CMVECs following transfection with Ad-hTK1/hTIMP1, which may be attributed to decreased oxidative stress. The aforementioned results demonstrated that co-expression of hTK1 and hTIMP1 genes may ameliorate myocardial I/R injury via suppressing oxidative stress.

The present study demonstrated the protective effects of co-expression of hTK1 and hTIMP1 genes against myocardial I/R injury. However, a limitation of the present study was that only the preliminary protective effects of Ad-hTK1/hTIMP1, including promoting angiogenesis and suppressing oxidative stress, were investigated; therefore, the in-depth mechanisms underlying hTK1 and hTIMP1 expression in myocardial I/R injury require further investigation.

In conclusion, the present study demonstrated that co-expression of hTK1 and hTIMP1 genes displayed significant protective effects in myocardial I/R injury via promoting angiogenesis and suppressing oxidative stress. Therefore, co-expression of hTK1 and hTIMP1 may serve as a potential therapeutic strategy for myocardial I/R injury.

Supplementary Material

Supporting Data

Acknowledgements

Not applicable.

Funding

The present study was supported by the Sailing Fund of Fujian Medical University (grant no. 2018QH1136).

Availability of data and materials

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

SH performed the in vivo experiments and drafted the manuscript. MC performed the in vitro experiments. HY and KL analysed the data. YG and PZ designed the study and revised the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

All animal experiments were conducted in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals (15), and approved by the Institutional Ethics Committee for Laboratory Animal Care of Fujian Provincial Hospital (approval no. K2019-01-038).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
