Introduction

Lung cancer treatment continues to present difficulties and survival rates remain low, despite research efforts. Chemotherapy is the primary form of treatment for lung cancer; however, its response rate is low, and complete recovery is rare (1,2). Thus, the development of a more efficacious therapy for lung cancer is urgently required. Autophagy is a type of programmed cell death that occurs in both physiological or pathophysiological environments (3,4). Autophagy is the mechanism by which protein conversion and the removal of aging or damaged organelles occurs; this helps maintain cellular homeostasis (5,6). Autophagy is also known to be involved in cell survival. However, excessive autophagy or improper activation can lead to apoptosis. Autophagy is believed to play an important role in the incidence of tumors; it is also considered to have a role in primary tumorigenesis. Additionally, it is known to maintain cell survival in tumors via survival pathways during periods of stress, such as during tumor progression or chemotherapy (7–9). The protein p53 is an ‘intracellular gatekeeper’ that protects the cell from various stress signals, and p53 is a mutant gene in most cancer cells that is activated by DNA damage, cancer gene activation, hypoxia and other stresses (10,11). It is involved in cell cycle inhibition, apoptosis, aging, metabolism, differentiation, inhibition of blood vessel formation, and autophagy regulation (12–14). Cisplatin is the most widely used chemotherapy drug for lung cancer and has powerful anticancer effects. However, it has many side-effects. Therefore, in an attempt to reduce these side-effects, we confirmed the anticancer effect of low-dose cisplatin, and examined the effects of these low-doses on autophagy and apoptosis. To ascertain whether p53 influences autophagy and apoptosis, we compared the role of p53 in lung cancer cell lines of wild-type p53 and null-type p53.

Materials and methods

Cell lines

The wild-type p53 NCI-H460 and null-type p53 NCI-H1299 lung cancer cell lines were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA).

Reagents

RPMI-1640, antibiotics, trypsin and fetal bovine serum (FBS) were obtained from Gibco-BRL (Grand Island, NY, USA). 24- and 48-well plates, along with 6 and 10-cm diameter dishes, were purchased from Nunc (Thermo Fisher Scientific, Roskilde, Denmark). Cisplatin (0.5 mg/ml) was obtained from Ildong Pharmaceutical Co., Ltd. (Seoul, Korea). Propidium iodide (PI), 3-methyladenine (3-MA), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), and acridine orange (AO) were purchased from Assay Designs (Ann Arbor, MI, USA). Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) antibody and p53 were obtained from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA). Secondary antibody was obtained from Amersham (Buckinghamshire, UK). Polyvinylidene fluoride (PVDF) membrane, and enhanced chemiluminescent (ECL) kit were purchased from Millipore Co. (Billerica, MA, USA).

Cell culture

NCI-H460 and NCI-H1299 cells were cultured with RPMI medium supplemented with 10% FBS, 1% antibiotics, and 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES). Cells were incubated in 5% CO2 at 37ºC. The medium was replaced every 24 h. Experiments were conducted with cells in the log phase. The viability of the cultured cells was measured after 24 h of treatment with cisplatin at 5 μM (LD20) and 20 μM (LD50).

Cell viability

Cell viability was determined with MTT assays. Cells were seeded in 24-well plates at a density of 1×104 cells and incubated for 24 h. After treatment with cisplatin (5 μM) in the presence or absence of 3-MA (10 mM), MTT (5 mg/ml) was added to each well and incubated in 5% CO2 at 37ºC for 4 h. Crystals were dissolved in 200 μl dimethyl sulfoxide (DMSO). The absorbance of the solution was measured spectrophotometrically at 570 nm with a microplate ELISA reader (Thermo Scientific). The absorbance of formazan formed in control cells was considered as showing 100% cell viability, and the positively stained cells with MTT were expressed as the percentage of control cells.

Morphological observations

To observe the cell morphology after cisplatin treatment, H460 and H1299 cells were cultured in a 24-well plate. They were then treated with 5 and 20 μM cisplatin for 24 and 48 h. After the treatment, the medium was removed and washed twice with phosphate buffered saline (PBS) (pH 7.4). It was then treated with 300 μl crystal violet solution (0.05% crystal violet, 3.7% paraformaldehyde) for 5 min at room temperature and then washed twice with PBS. The nucleus and the cytoplasm were then observed under a microscope (Olympus, Japan).

Assay for autophagy detection

Autophagy was detected by measuring the expression levels of LC3-II protein and by using AO stain to detect acidic vesicular organelles (AVOs) within the cytoplasm. After adding AO (1 μg/ml), the cells were incubated in 5% CO2 at 37ºC for 15 min. Next, the cells were washed with PBS. The number of AO-stained cells was observed under a microscope (Olympus, Japan).

LC3 protein was detected by western blot analysis. The cells were treated with cisplatin (5 μM) in the presence or absence of 3-MA (10 mM) for 24 h. After treatment, each cell was harvested and washed twice with ice-cold PBS and lysed in lysis buffers (50 mM HEPES, pH 7.4, 150 mM NaCl, 1% deoxycholate, 1 mM EDTA, 1 mM PMSF, 1 μg/ml aprotinin). After incubation for 1 h on ice, the cells were centrifuged at 10,000 rpm for 30 min at 4ºC, and the supernatants were collected. The protein concentration was determined using the Bradford method. For western blot analysis, equal amounts of total protein were loaded onto 10 or 15% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and then transferred onto a PVDF membrane. The PVDF membrane was blocked with 5% skimmed milk in PBS for 20–90 min. After washing in PBS, immunoblots were analyzed using specific primary antibodies. The membrane was then washed with PBS and treated with secondary antibodies for 1 h. Proteins were then visualized using an ECL kit.

Quantitative analysis of apoptosis and autophagy

To quantitatively analyze apoptosis and autophagy, the cells were plated in 6-well plates and incubated for 24 h. They were then treated with cisplatin (5 μM) in the presence or absence of 3-MA (10 mM). After 24 h of treatment, the cells were harvested using trypsin and were then washed twice in PBS. Subsequently, they were treated with Annexin V/fluorescein isothiocyanate (FITC) (0.5 μg/ml final concentration) combination, PI (2 μg/ml final concentration), and apoptosis detection kit (Assay Designs), for 10 min at room temperature. The cells were then immediately examined using a flow cytometer (FACSVantage flow cytometer; Becton-Dickinson Immunocytometry System, San Jose, CA, USA) following the addition of 250 μl binding buffer. Analysis was performed using CellQuest software (Becton-Dickinson, Franklin Lakes, NJ, USA). To quantitatively analyze autophagy, the cells were plated in 6-well plates and incubated for 24 h. The cells were then treated with cisplatin (5 μM) in the presence or absence of 3-MA (10 mM). After 24 h of treatment, the cells were stained with AO (1 μg/ml) for 15 min at 37ºC, harvested with trypsin and subsequently washed with PBS. We then added 500 μl FACS buffer (1% FBS in PBS). The cells were immediately counted by flow cytometry (FACSVantage flow cytometer) after addition of 250 μl binding buffer. Analysis was performed using CellQuest software.

Statistical analysis

The experiment was performed thrice independently, with the means ± standard deviation (SD) recorded. Results were analyzed using the Student’s t-test. p<0.05 was considered to indicate a statistically significant difference.

Results

Detection of wild-type p53 expression in the NCI-H460 and NCI-H1299 cell lines

We confirmed wild-type p53 protein expression after treatment of NCI-H460 cell lines with 5 μM cisplatin in the presence or absence of 3-MA (10 mM), an autophagy-specific inhibitor. We found that wild-type p53 was not expressed after treatment with 5 μM cisplatin in the presence or absence of 3-MA in NCI-H1299 cell lines (Fig. 1).

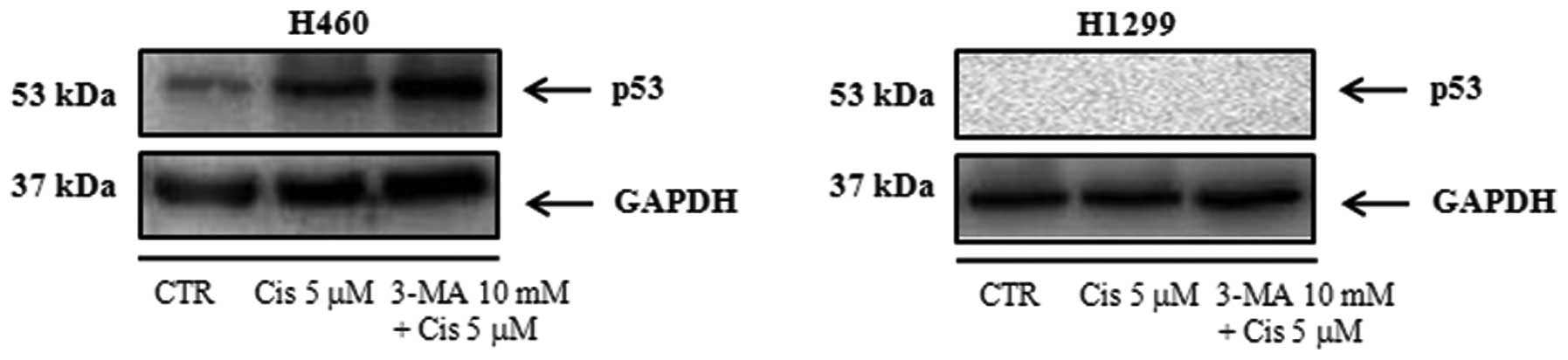

Figure 1 Expression of p53 protein in H460 and H1299 cells. H460 and H1299 cells were treated with 5 μM cisplatin with or without 10 mM 3-MA for 24 h. Expression of p53 protein was confirmed by western blot analysis. GAPDH was used as an equal loading control.

Cell viability decreases by low-dose cisplatin in H460 and H1299 cell lines

We investigated cell death by treating both cell lines with 5 μM cisplatin in the presence or absence of 10 mM 3-MA. The cell viability was measured by an MTT assay. For the H460 cell line, cell viability in the group treated with 5 μM cisplatin was 81.54%, lower than that in the control group. This further decreased to 46.02% in the presence of 10 mM 3-MA. Cell viability was further decreased by autophagy inhibition. In the H1299 cell line, cell viability in the group treated with 5 μM cisplatin was 81.33%, lower than that in the control group, and it further decreased to 41.71% in the presence of 10 mM 3-MA. However, there was no difference in cell viability between cisplatin and 3-MA pretreatment in H460 and H1299 cell lines (Fig. 2).

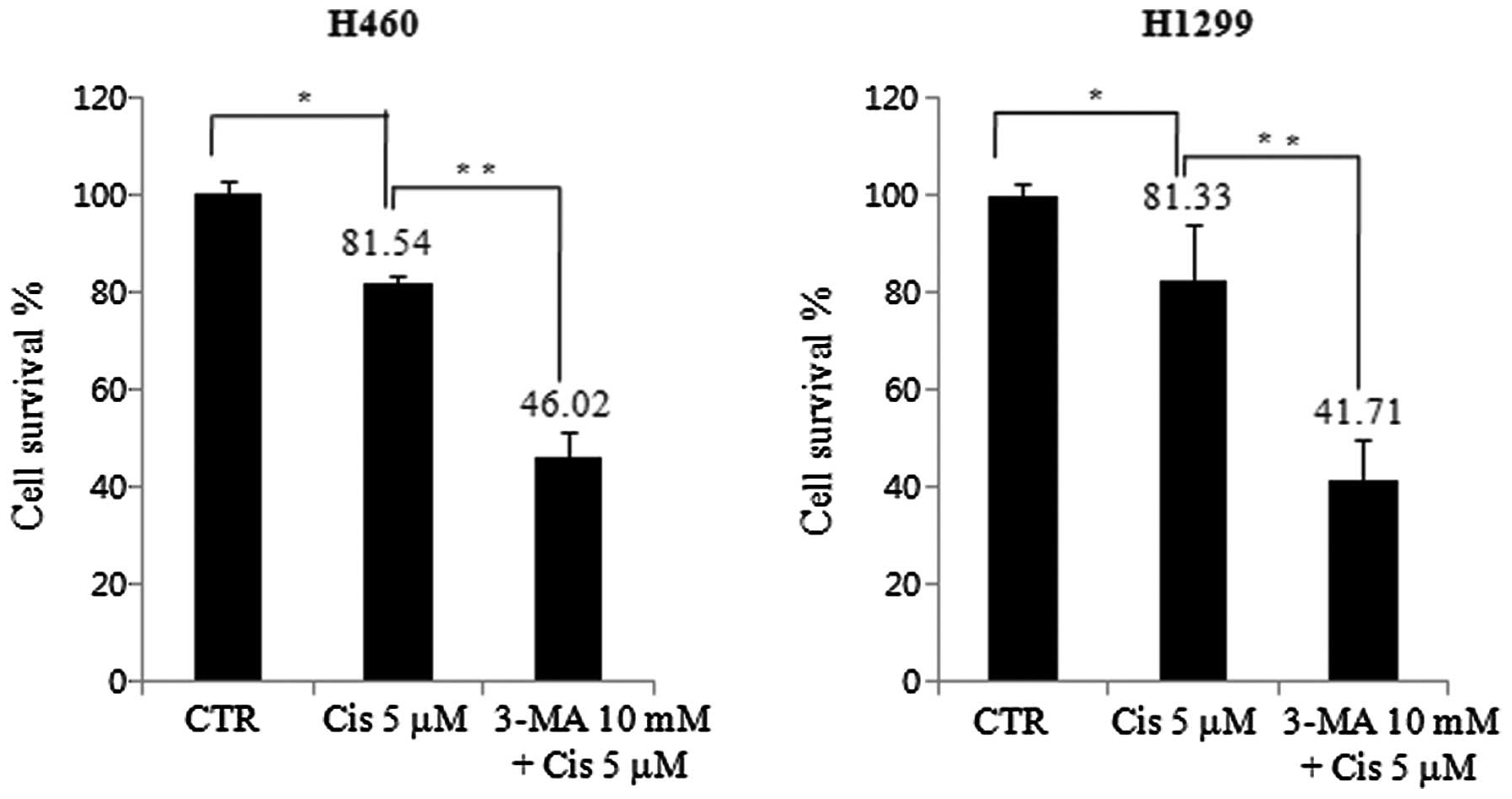

Figure 2 Effect of cisplatin-induced cell death on H460 and H1299 cells. H460 and H1299 cells were seeded at 5×104 cells/well in 48-well flat-bottomed plates and incubated overnight at 37ºC. They were then treated with 5 μM cisplatin for 24 h. The viability of the untreated cells was regarded as 100%. Cell viability was measured by an MTT assay. Values represent means ± SD (n=3). *p<0.05, **p<0.01.

Observation of morphological characteristics and biodynamics analysis of autophagy

After 24 h, autophagosomes, the morphological characteristics of autophagy, were observed in cells treated with 5 μM cisplatin. After 48 h, the number of autophagosomes observed increased. Cells treated with 20 μM cisplatin showed low autophagosome formation after 24 h compared with those treated with 5 μM cisplatin. After 48 h, no autophagosomes were observed in the cells treated with 20 μM cisplatin.

LC3-I is present in the cytoplasm, and LC3-II, which is formed during autophagy, is present in the autophagosome. LC3-I is converted to LC3-II during the initiation of autophagy. Thus, LC3 is a marker of autophagosome formation. In the H460 cell lines treated with 5 μM cisplatin, autophagosome-incorporated LC3-II protein expression increased from 12 to 24 and 48 h, compared with the control. Therefore, autophagy increased during this period. However, in the H1299 cell lines, LC3-II protein expression did not change compared with the control. Therefore, in the H1299 cell lines, no change in autophagy was observed (Fig. 3).

Figure 3 Morphological phenomena and LC3-II protein expression of autophagy in cisplatin-treated lung cancer cells. (A) Direct observation of cells treated with 5 and 20 μM cisplatin for 24 and 48 h in H460 cells. Magnification, ×200. Samples were examined under a light microscope. (B) H460 and H1299 cells were treated with 5 μM cisplatin for 12, 24 and 48 h. Expression of LC3-II protein was detected by western blot analysis. GAPDH was used as an equal loading control.

Quantitative measurements of apoptosis and autophagy in cisplatin-treated NCI-H460 and NCI-H1299 cell lines

For quantitative measurement of apoptosis, we stained the cell lines with Annexin V and PI after treatment with 5 μM cisplatin for 24 h, followed by analysis using flow cytometry. A 5.9-fold increase in apoptosis was observed in the H460 cell lines of wild-type p53. In the control group, 2% more apoptosis was observed and 11.18% more apoptosis was observed in the group treated with 5 μM cisplatin. In the H1299 cell lines with null-type p53, apoptosis increased by 7.62-fold. In the control group, a 3.86% increase in apoptosis was observed along with a 29.45% increase in the 5 μM cisplatin group. Thus, more apoptosis was observed in the p53 null cell line groups than in the p53 wild-type cell line groups (Fig. 4).

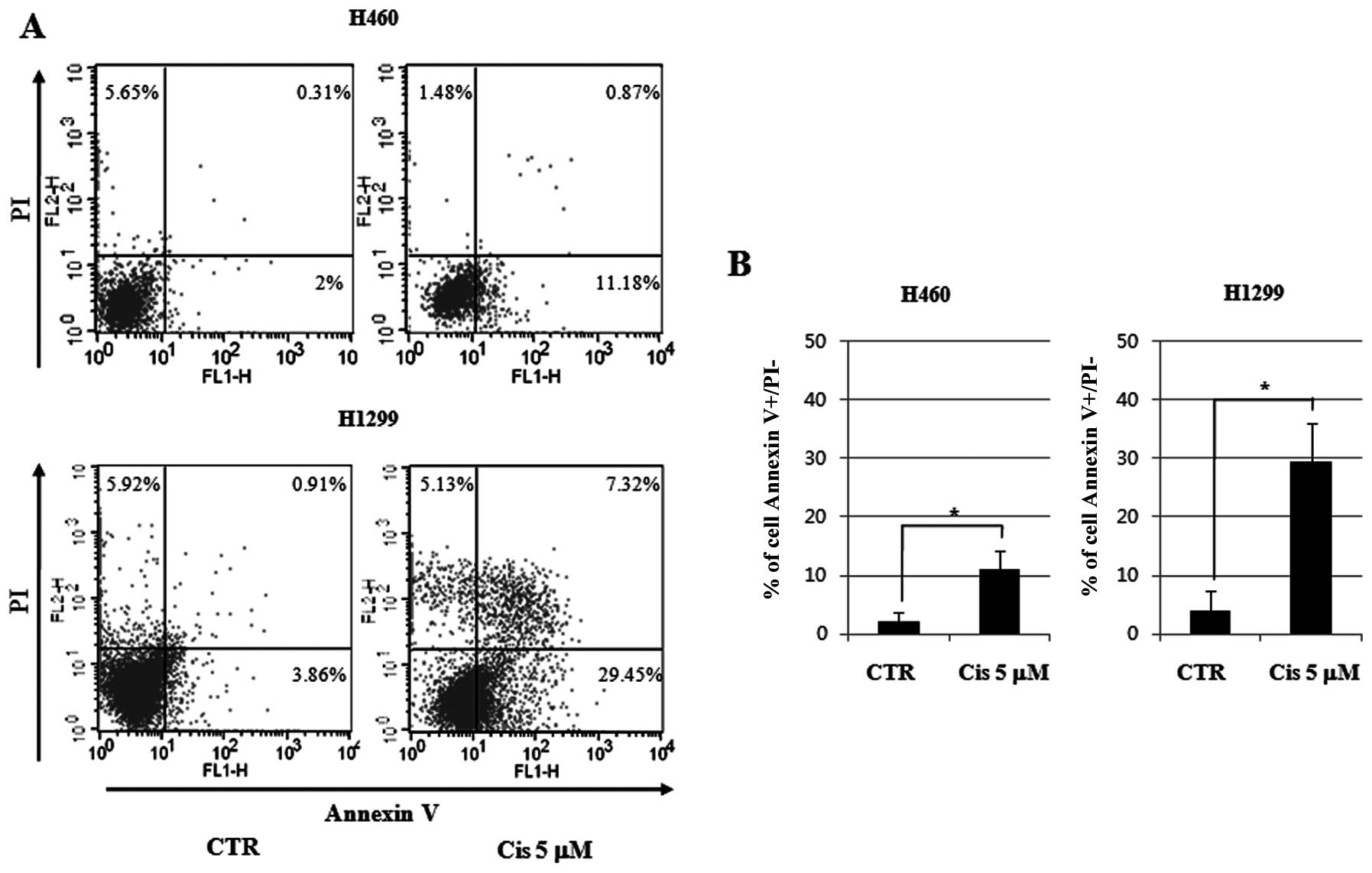

Figure 4 Increase in apoptosis with low-dose cisplatin treatment in H460 and H1299 cells. (A) H460 and H1299 cells were treated with 5 μM cisplatin for 24 h. Annexin V and PI staining were used to identify apoptotic and necrotic cells. FACS analysis of apoptotic cells using Annexin V and PI indicated that the Annexin V (+) and PI (−) stained populations were apoptotic cells. Representative FACS plots are shown; stains were performed in 3 independent experiments with similar results unless otherwise indicated. (B) Apoptotic cell population is expressed as a % of the total cell population. *p<0.05.

For quantitative measurement of autophagy, we analyzed AVOs by flow cytometry in the cell lines treated with 5 μM cisplatin for 24 h. A 12.49-fold increase in autophagy was observed in the H460 cell lines of wild-type p53. In the control group, autophagy increased by 3.3%, and in the 5 μM cisplatin group, it increased by 41.22%. A 6.67-fold increase was observed in the H1299 cell lines of null-type p53. In the control group, autophagy increased by 7.4%, and in the 5 μM cisplatin group, it increased by 49.39%. Therefore, autophagy was induced more in the p53 wild-type cell lines than in the p53 null-type cell lines (Fig. 5). These results suggest that cisplatin-treated p53 wild-type cells play a role in inducing autophagy and inhibiting apoptosis.

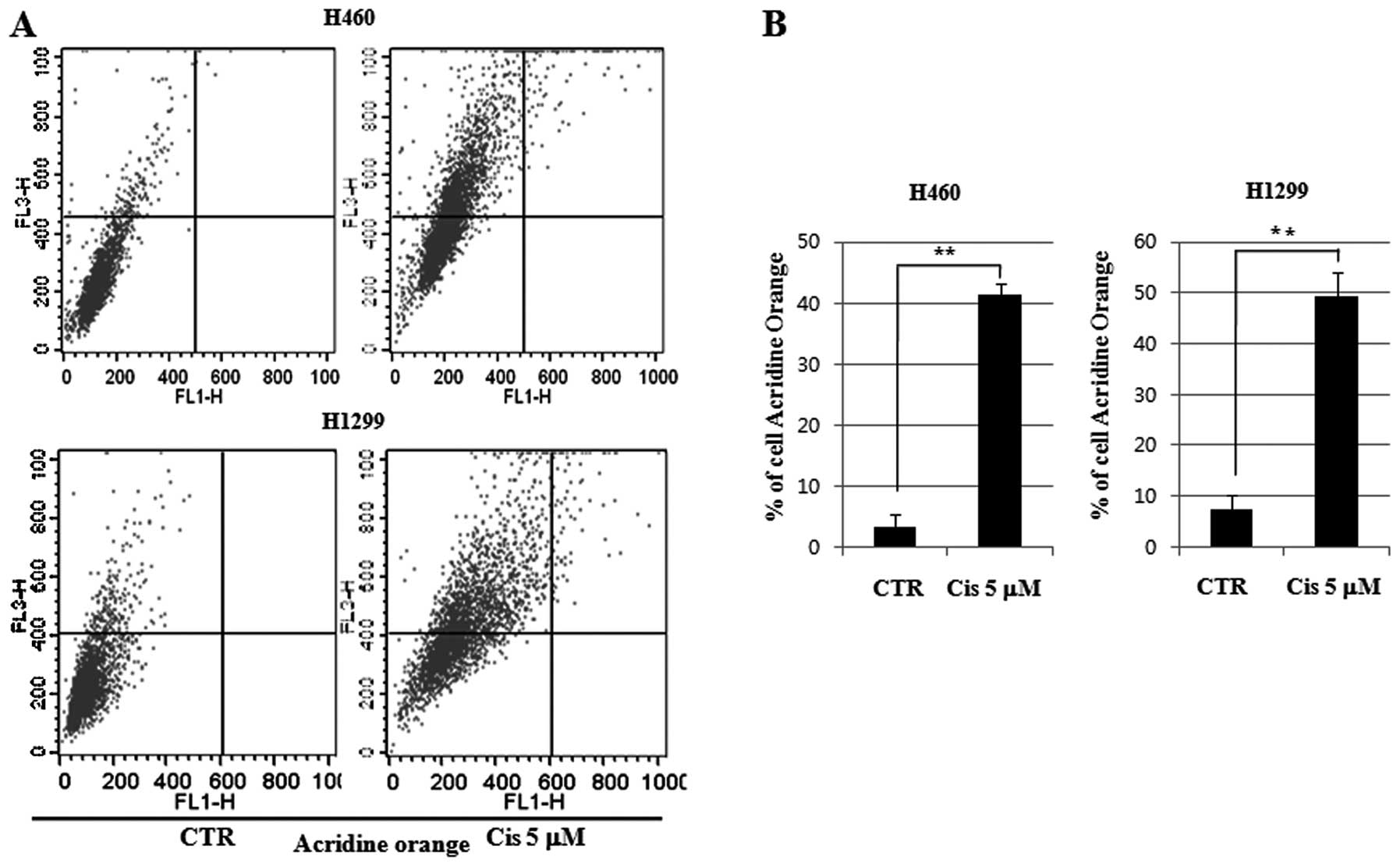

Figure 5 Increase in apoptosis in low-dose cisplatin-treated H460 and H1299 cells. (A) H460 and H1299 cells were treated with 5 μM cisplatin for 24 h. Acridine orange staining was used to identify autophagic cells by FACS. Representative FACS plots are shown. Staining was performed in 3 independent experiments with similar results, unless otherwise indicated. (B) Acridine orange-positive cell population is expressed as a % of the total cell population. **p<0.01.

Quantitative measurements of cisplatin-induced apoptosis and autophagy after 3-MA treatment in H460 and H1299 cell lines

The 5 μM cisplatin-treated cell lines with 3-MA pretreatment for 24 h were stained with Annexin V and PI, and subjected to flow cytometry. A 3.72-fold increase in apoptosis in the p53 wild-type H460 cell line was observed. An 11.18% increase was observed in the 5 μM cisplatin group, and a 43.92% increase was observed in the 5 μM cisplatin group that was pretreated with 3-MA. In the H1299 cell line of p53 null-type, a 1.98-fold increase in apoptosis was observed. A 29.45% increase was observed in the 5 μM cisplatin group, and a 58.47% increase was observed in the 5 μM cisplatin group that was pretreated with 3-MA. The p53 wild-type cell lines induced twice as much apoptosis as the p53 null-type cell lines (Fig. 6).

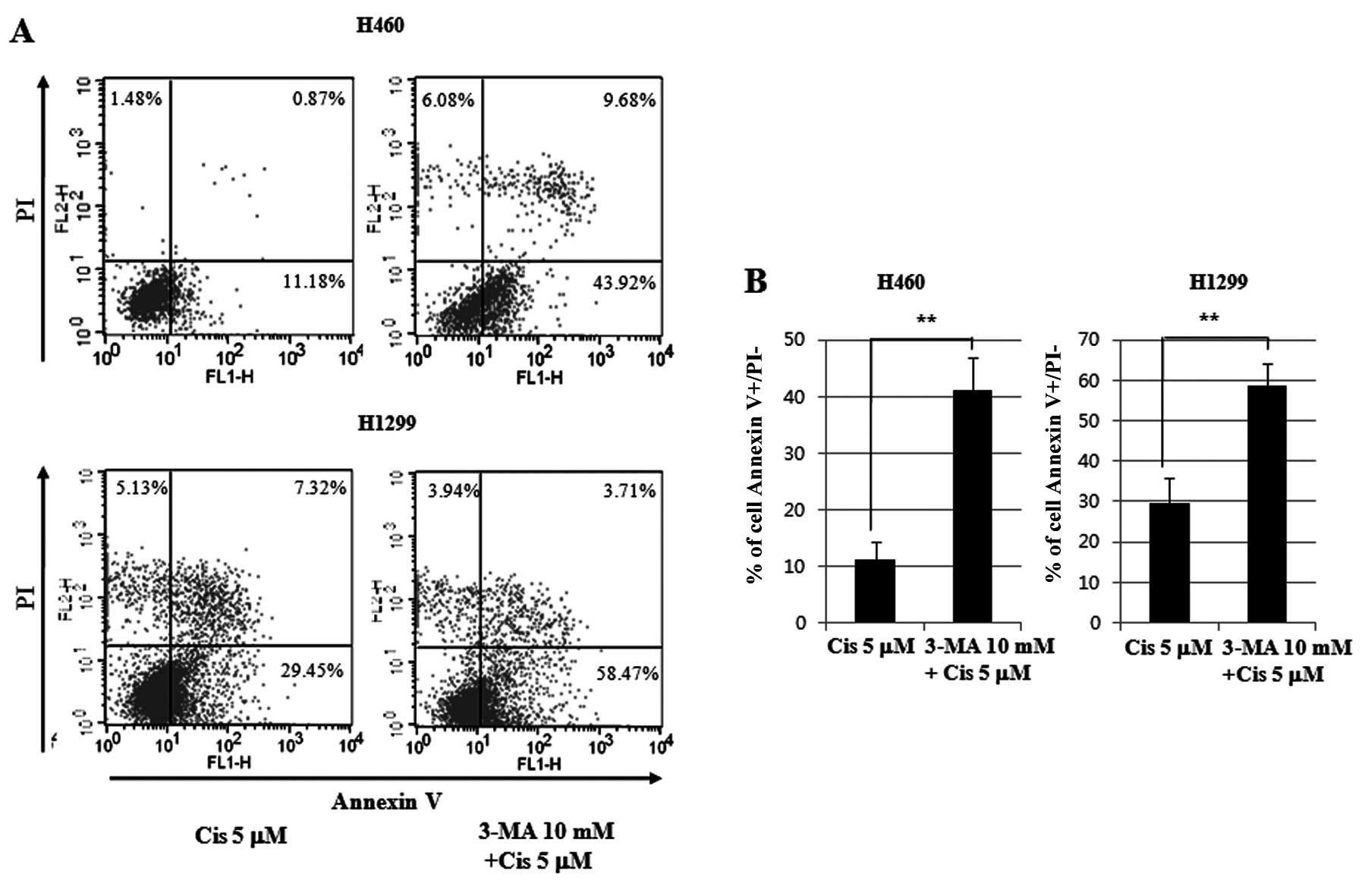

Figure 6 Increase in apoptosis in H460 and H1299 cell lines treated with low-dose cisplatin and pretreated with 3-MA. (A) H460 and H1299 cells were treated with 5 μM cisplatin for 24 h. Annexin V and PI staining were used to identify apoptotic and necrotic cells. FACS analysis of apoptotic cells using Annexin-V and PI indicated that the Annexin-V (+) and PI (−) stained populations were apoptotic cells. Representative FACS plots are shown. Staining was performed in 3 independent experiments with similar results, unless otherwise indicated. (B) Apoptotic cell population is expressed as a % of the total cell population. **p<0.01.

To measure autophagy, the 5 μM cisplatin-treated cell lines with 3-MA pretreatment for 24 h were again stained with Annexin V and PI, and subjected to flow cytometry. A 5.57-fold decrease in autophagy in the p53 wild-type H460 cell line was observed. A 41.22% decrease was observed in the 5 μM cisplatin group, and a 7.4% decrease was observed in the 5 μM cisplatin group that was pretreated with 3-MA. In the H1299 cell line of p53 null-type, a 1.83-fold decrease in autophagy was observed. A 49.39% decrease was observed in the 5 μM cisplatin group, and a 26.88% decrease was observed in the 5 μM cisplatin group that was pretreated with 3-MA. The p53 wild-type cell lines reduced autophagy 3-fold more than the p53 null-type cell lines (Fig. 7). Therefore, we concluded that p53 inhibited low-dose cisplatin-induced autophagy and induced apoptosis.

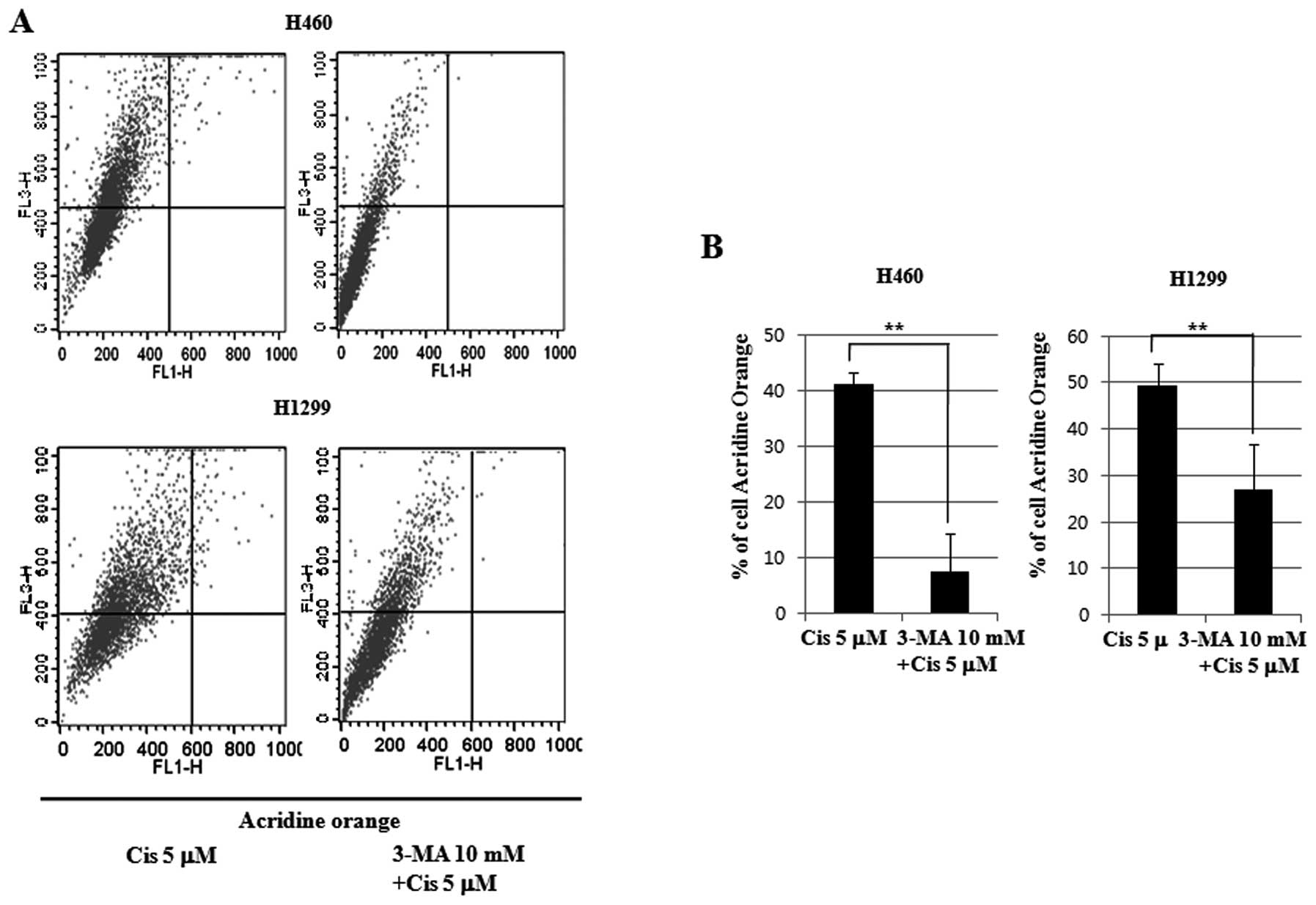

Figure 7 Reduction in autophagy in H460 and H1299 cell lines treated with low-dose cisplatin and pretreated with 3-MA. (A) H460 and H1299 cells were treated with 5 μM cisplatin for 24 h. Acridine orange staining was used to identify autophagic cells by FACS. Representative FACS plots are shown. Staining was performed in 3 independent experiments with similar results, unless otherwise indicated. (B) Acridine orange-positive cell population is expressed as a % of the total cell population.

Discussion

At the time of diagnosis, many cases of lung cancer are considered inoperable due to infiltration of the surrounding tissue by cancer cells. Treatment of lung cancer by chemotherapy and radiation therapy presents difficulties, and, therefore, prognosis for lung cancer is often bleak. However, the discovery and subsequent adoption of cisplatin in the 1980s helped improve survival rates of patients with lung cancer. New second-generation anticancer drugs were developed in the 1990s, but they have yet to produce satisfactory results.

Research has recently started to focus on targeted therapies. However, anticancer treatment is still restricted to cisplatin for local progression of lung cancer, despite the fact that the use of cisplatin causes suffering and often results in treatment being stopped due to toxicity, low white blood cell counts, thrombocytopenia symptoms, vomiting and neurological toxicity, among other side-effects.

Therefore, some patients choose to undergo anticancer treatment using non-cisplatin based chemotherapy for local lung cancer progression. However, these are often less effective than cisplatin treatments. Furthermore, targeted therapies often only show significant results in some patients. Many clinicians regulate the dose intensity of cisplatin so as to reduce the effects of toxicity. However, low-dose treatments sometimes have minor effects.

Research has shown that autophagy affects signal transduction. Autophagy and apoptosis have already prompted much research in cancer. However, the role of autophagy in cell survival or apoptosis remains to be clarified. Autophagy assists cell survival by helping cancer cells resist radiation therapy, chemotherapy and low-nutrient environments. However, apoptosis helps contribute to cancer cell suicide and death on exposure to chemotherapy or radiation. These paradoxical features are a point of debate as to whether autophagy is a friend or foe (15–17). Without autophagy, genome damage caused by metabolic stress is mostly unhindered. Furthermore, autophagic defects are associated with increased tumorigenesis. However, it is not possible to conclude that cancer cell extirpation occurs via autophagy induction or inhibition (18). The number of discrepancies related to the role of autophagy in cell death and cancer presents difficulties. Animal experiments have shown that autophagy increases tumor cell survival during periods of metabolic stress. However, it has also been shown to prevent tumors, necrosis and inflammation. In this case, the tumor-suppressing effects of autophagy had a greater effect than the cell survival mechanisms promoted by autophagy. In other animal experiments, treatment-induced apoptosis and tumor extinction increased when chloroquine was used to inhibit autophagy. The combination therapy of chloroquine and the histone deacetylase inhibitor SAHA has a multiplier effect in killing imatinib-refractory chronic myeloid leukemia cells. This protective function supports the therapeutic use of autophagic inhibitors for cancer treatment (19–22). Autophagosomes in the cytoplasm were observed at 24 and 48 h in cell lines treated with low-dose (5 μM) cisplatin in a previous study. The conversion of LC3-I into LC3-II within the cytoplasm increases over time. In this study, we investigated the role of p53 in autophagy induction in wild-type p53 NCI-H460 cell lines and null-type p53NCI-H1299 cell lines treated with low-dose cisplatin. No difference was observed in the viability of H460 and H1299 cells treated with cisplatin and pretreated with 3-MA. However, a difference between apoptosis and autophagy was observed. After treatment with 5 μM cisplatin, apoptosis increased by 5.59-fold in the wild-type p53 H460 cell line compared to the control group, and apoptosis in the null-type p53 H1299 cell lines increased by 7.62-fold.

For autophagy, a 12.49-fold increase after 5 μM cisplatin treatment was observed in the wild-type p53H460 cell line compared to the control group, and autophagy in the null-type p53 H1299 cell line increased by 6.69-fold. Autophagic activity in the null-type p53 H1299 cell lines was twice that of the wild-type p53 H460 cell lines. On the basis of this result, we conclude that wild-type p53 has a role in autophagic induction and apoptosis inhibition when treated with low-dose cisplatin. In addition, after 3-MA pretreatment and 5 μM cisplatin treatment, apoptosis increased by 3.92-fold in the wild-type p53 H460 cell line compared to the control group. In the null-type p53 H1299 cell line, apoptosis increased by 1.98-fold. Apoptotic activity in the null-type p53 H1299 cell lines was twice that of the wild-type p53 H460 cell lines. After 3-MA pretreatment and 5 μM cisplatin treatment, autophagy decreased 5.57-fold in the wild-type p53H460 cell lines and decreased by 1.83-fold in the null-type p53 H1299 cell lines. Autophagic activity decreased thrice as much in the null-type than in the wild-type p53 cell line. This result suggests that p53-induced apoptosis also inhibited autophagy induced by low-dose cisplatin. However, this result does not clarify the role of p53. Therefore, further studies are required to ascertain how 3-MA-pretreated and cisplatin-treated cells affect apoptosis and autophagy.

Acknowledgements

This study was supported by a grant from the Korea Health 21 R&D Project (Ministry of Health, Welfare and Family Affairs, Republic of Korea, A010251).
