Introduction

Recombinant Ganoderma lucidum immunomodulatory protein (rLZ-8), expressed using a Pichia yeast eukaryotic expression system (1–3), was the first member of the fungal immunomodulatory protein (FIP) family discovered in mushrooms. It has been shown that rLZ-8 enjoys a promising prospect as a new class I drug, since it induces apoptosis in K562 and HL60 cells and acts as an immunomodulating protein in a variety diseases, including in the non-obese diabetes mouse model and in immunomodulation of food-induced allergic reactions (4–14). However, rLZ-8 has a MW of only 13 kDa and its dynamic properties, such as the half-life, are not satisfactory, which enormously limits its clinical application (15–19).

In this study, we explored a strategy to overcome the natural shortcomings of rLZ-8 using conventional PEGylation technology to prolong its half-life and to enhance its stability (20–27). We optimized the modification and purification process, successfully prepared the single-point modification product and carried out an initial characterization of the association between the modification sites and the activity of the modified product. This study has provided insights into the structure-activity relationship of rLZ-8 and has also laid a foundation for the development of long-acting formulations of rLZ-8.

Materials and methods

Instruments and reagents

The following instruments/instrument systems were used in this study: HPLC System (Shimadzu, Japan); AKTA Explorer 100 protein purification workstation (GE Healthcare, Franklin Lakes, NJ, USA); ultrafiltration cup (GE Healthcare); gel imager (Tanon, Shanghai, China); SDS-PAGE electrophoresis system (GE Healthcare); electrospray ionization source high-resolution tandem mass spectrometer (ESI-Q/TOF, Applied Biosciences, Carlsbad, CA, USA) and laser desorption time-of-flight mass spectrometry (MALDI-TOF/TOF, Applied Biosciences); Hiload 16/70 Superdex™ 75 gel column (GE Healthcare). Methoxy-PEG-succinimidyl propionate mPEG-SPA (5 kDa) was purchased from YareBio (Shanghai, China), and the recombinant Ganoderma lucidum immunomodulatory protein (rLZ-8) was obtained from our laboratory.

Modification optimization

Method

Optimization of the output of the single-point modification reaction was carried out by altering one single effect factor and keeping other factors the same in multi-level repeated trials. The effect of each factor on the conformation of reaction products was analyzed using SDS-PAGE and high-performance liquid chromatography (HPLC).

Effect of pH and ionic strength

The modification of rLZ-8 with mPEG-SPA (1:12, mol:mol) was carried out in a series of buffer systems at varying pH, namely pH 4.0, 5.0, 6.0, 7.0 or 8.0, and then in pH 8.0 phosphate buffer with varying ionic strengths, at 0.025, 0.05, 0.1 or 0.2 M, at room temperature for 2 h, away from light. The results were analyzed by SDS-PAGE followed by gel imaging after staining with barium iodide and Coomassie Brilliant Blue.

Effect of reaction time and temperature

In order to address the effect of time and temperature on the modification reaction, rLZ-8 and mPEG-SPA (1:12, mol:mol) were incubated together in a phosphate buffer system (0.1 M, pH 8.0) at 4, 16, 25 and 37°C, and sampled every 0.5 h for analysis by HPLC, up to 2.5 h.

Effect of molar ratio of rLZ-8 and mPEG-SPA

rLZ-8 and mPEG-SPA in a phosphate buffer system (0.1 M, pH 8.0) at molar ratios of 1:1, 1:3, 1:6, 1:12 and 1:24, were mixed at room temperature for 2 h, away from light. HPLC and SDS-PAGE with barium iodide or Coomassie Brilliant Blue staining were used to monitor the reaction products.

Purification and identification of the desired target product

The target product was purified using a Hiload 16/70 Superdex 75 gel chromatographic column with 0.05 M phosphate buffer containing 0.15 M NaCl (pH 7.0) and a flow rate of 1 ml/min. After equilibrating the column with the phosphate buffer for 2 column volumes (120 ml), iso-concentration elution was applied for another 1.5 column volumes, with peak collection at every 2 ml and detection wavelengths of 280, 254 and 215 nm. Every peak was detected using SDS-PAGE and HPLC and the retention times of the confirmed peaks were recorded.

Measurement of the biological activity of the target product

A lymphocyte transformation test (BrdU reagent box) was performed according to the manufacturer's instructions in order to determine the biological activity of rLZ-8 and mPEG-SPA-rLZ-8. The lymphocyte transformation test is based on the fact that lymphocytes stimulated by certain antigens transform and proliferate when re-exposed to the same antigens. The biological activity of antigens is measured by monitoring the proliferation of stimulated cells, and by measuring the incorporation of BrdU into replicating DNA. A chromophore coupled to an anti-BrdU antibody enables spectrophotometric detection of proliferating cells.

Analysis of the initial characteristics of the target product Detection of protein content

We used the Lowry method to measure the protein concentration of the reaction product according to the guidelines of the Chinese Pharmacopoeia 2010 Appendix VIB.

Validation of molecular weight and modification site

Firstly, the sample (in the form of dry powder) was placed into 50 mM NH4HCO to prepare a 1 mg/ml sample solution. A 20-μl aliquot of the sample solution was then diluted to obtain a 10-mM solution by adding 100 mM dithiothreitol (DTT) and heating at 56°C for 1 h. After cooling the mixture to room temperature, 250 mM indole-3-acetic acid (IAA) was added to obtain a 25-mM sample solution and this mixture was protected from light for 1 h. After completion of this step, 0.5 μg Trypsin was added and the sample was digested at 37°C for 12 h. Finally, the reaction was ended by adding 1 μl of 10% trifluoroacetic acid (TFA). The digestion products and matrix were mixed at a proportion of 1:3 and dried atmospherically. The peptide mass was detected by PMF analysis in order to identify the PEGylated site on rLZ-8 in the following modes: the mass spectra for the 500–4000 m/z range were determined in the reflection positive ion mode and the 1000–10000 m/z range was determined in the linear positive ion mode.

Results

Modification optimization

Effect of pH and ionic strength

The results of SDS-PAGE analysis of the PEGylation reaction mixture following barium iodide staining are shown in Fig. 1. As the figure indicates, no modification reaction (indicated by the appearance of higher-MW bands) occurred until pH 5.0, and a weak reaction occurred between pH 5.0 and 7.0. When the pH was >8, the reaction was more efficient and numerous modification products were detected. By contrast, variation of ionic strength hardly affected the modification reaction. Therefore, we chose pH 8.0 as the reaction pH in further studies.

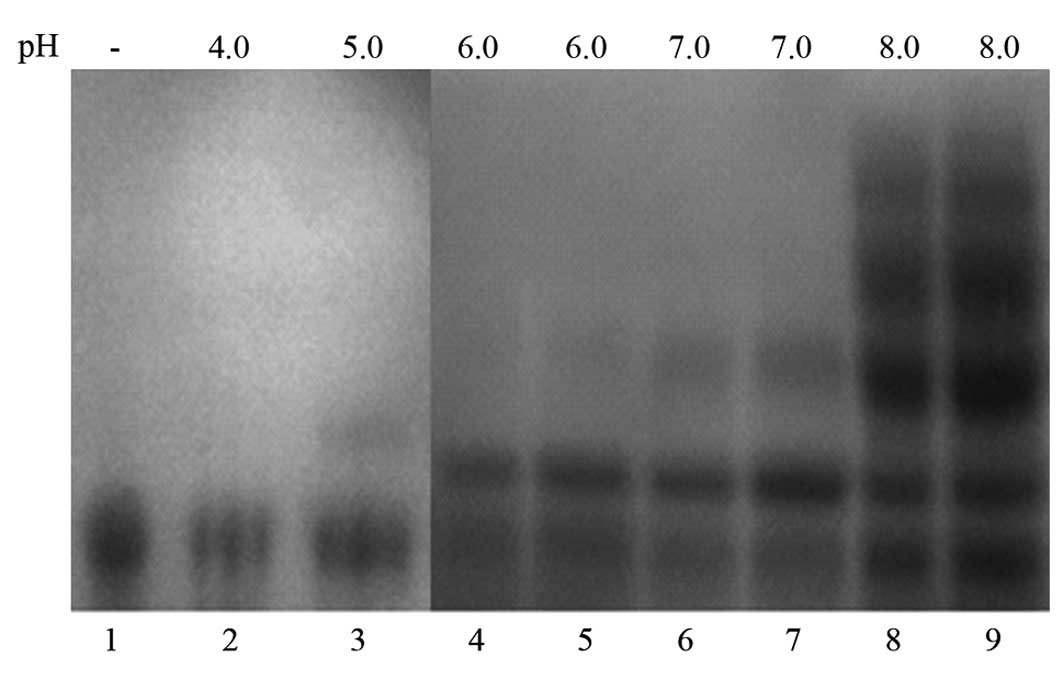

Figure 1 SDS-PAGE of PEGylation reaction mixture, with the reaction performed with phosphate buffers of the indicated pH. Lanes: 1, mPEG-SPA alone; 2, reaction mixture in pH 4.0; 3, reaction mixture in pH 5.0; 4 and 5, reaction mixture in pH 6.0; 6 and 7, reaction mixture in pH 7.0; 8 and 9, reaction mixture in pH 8.0.

Effect of reaction time and temperature

The reaction products were single and relatively unstable at 0.5 h, which indicates the reaction was still in progress (Fig. 2A). Between 1 and 2.5 h, the reaction results appeared to be similar (as shown in Fig. 2B-E) and the reaction products did not change significantly (Fig. 3), indicating that the reaction had reached equilibrium after 1 h. Additionally, the experiment was undertaken at room temperature, since temperature did not have a significant effect on the reaction products (data not shown). As a result, we chose room temperature and 2 h as the reaction conditions.

Figure 2 Size exclusion chromatography (SEC)-high-performance liquid chromatography (HPLC) analysis of the modification reaction mixture at (A) 0.5 h, (B) 1 h, (C) 1.5 h, (D) 2 h and (E) 2.5 h after incubation at room temperature.

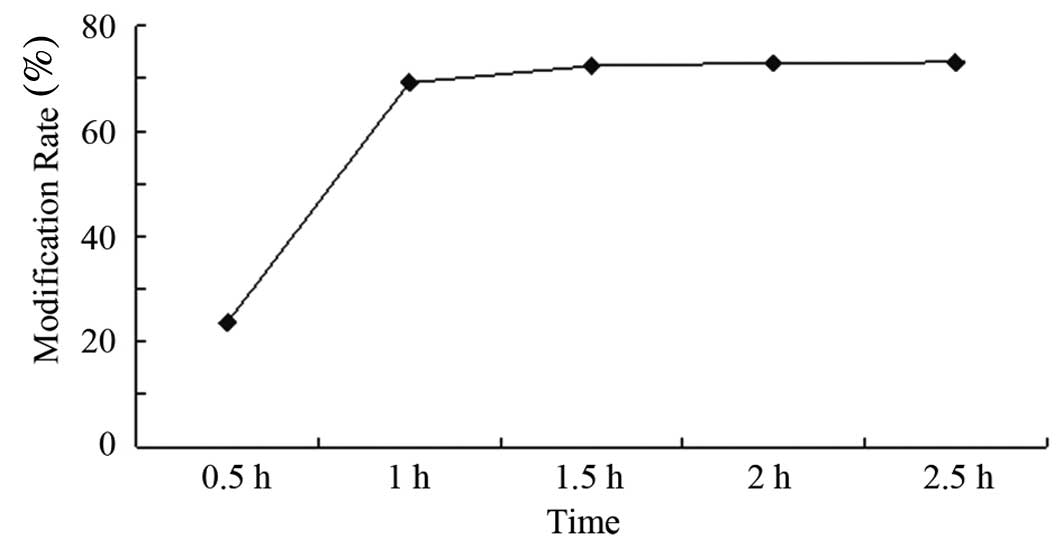

Figure 3 Rate of modification of rLZ-8 with mPEG-SPA at various time points.

Effect of molar ratio of rLZ-8 and mPEG-SPA

Fig. 4 illustrates how the molar ratios of rLZ-8 to mPEG-SPA influenced the modification reaction. The modification products became increasingly varied (as indicated by the less discrete appearance of the higher-MW bands) when the molar ratio of rLZ-8 to mPEG-SPA was decreased. Only one type of modification product occurred at the molar ratio of 1:1, so each modification product occupies 100% of the product, with the exception of the remaining unmodified rLZ-8. When the molar ratio was 1:24, there were four modification products and each one contributed to 18.57% of the total mixture (Figs. 4 and 5). For ease of purification, a molar ratio of 1:1 was chosen for single-point modification.

Figure 4 SDS-PAGE analysis of the modification reaction at various molar ratios of rLZ-8 to mPEG-SPA. (A) Barium iodide staining of the SDS-PAGE gel. (B) Coomassie Brilliant Blue staining of the SDS-PAGE gel. Lanes: 1, MW marker; 2, rLZ-8; 3–6, molar ratio of rLZ-8 to mPEG-SPA in the reaction mixture was 1:1, 1:6, 1:12 and 1:24, respectively.

Figure 5 Histogram of the modification rate of reaction mixtures with various molar ratios of rLZ-8 to mPEG-SPA. P1, percent of mono-mPEG-modified rLZ-8 in the modification mixture; P2, percent of mPEG-modified rLZ-8 in the modification mixture.

Purification and identification of the target product

As shown in Fig. 6A and Fig. 7, only one type of modification product occurred at a molar ratio of 1:1. According to the molecular sieve principle, the purity of the purification product may reach 99% after being purified using a Superdex 75 gel chromatographic column, a result that we also observed when using this chromatographic purification method (Fig. 6B).

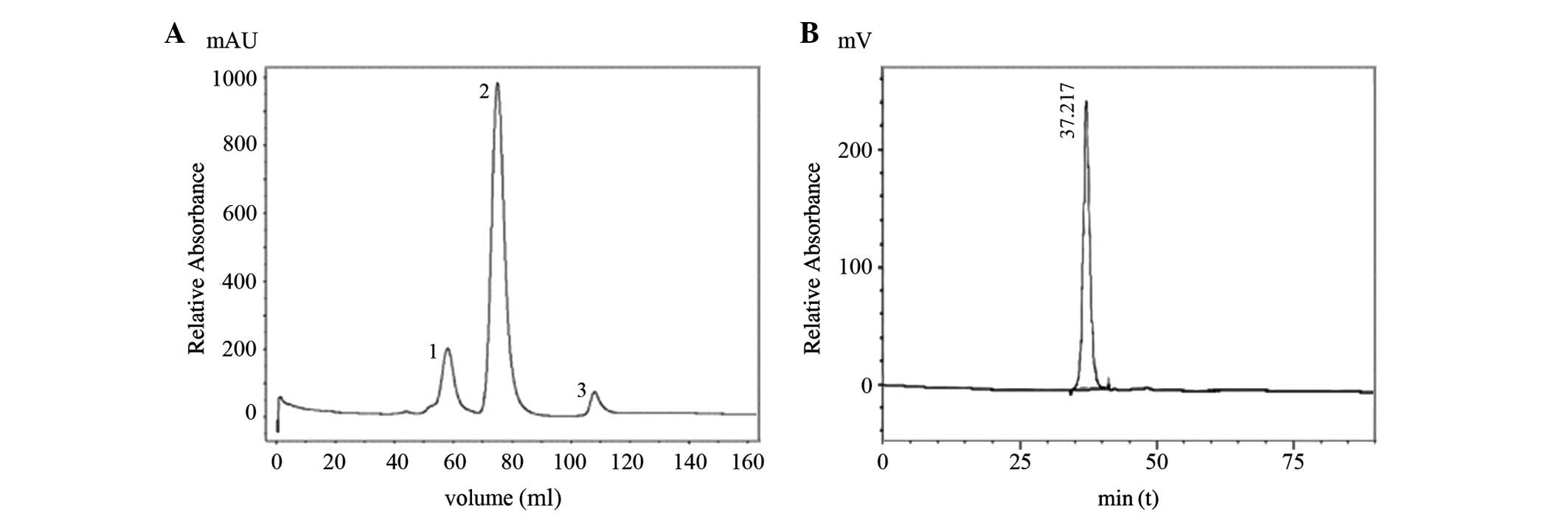

Figure 6 Preparation and purification of mPEG-SPA-rLZ-8 with size exclusion chromatography (SEC). (A) Purification of modification reaction mixture by Superdex 75 (1, target protein; 2, rLZ-8; 3, by-products); (B) High-performance liquid chromatography (HPLC) of target protein after purification.

Figure 7 SDS-PAGE analysis of various absorption peaks by Superdex 75 purification. (A) Barium iodide staining of SDS-PAGE gel. (B) Coomassie Brilliant Blue staining of SDS-PAGE gel. Lanes: 1, MW marker; 2, rLZ-8; 3, mPEG-SPA; 4, modification mixture; 5, the first half of peak 1 (shown in Fig. 6A); 6, the last half of peak 1 (shown in Fig. 6A); 7, peak 2 (shown in Fig. 6A); 8, peak 3 (shown in Fig. 6A).

Biological activity of the purified target product

The biological activities of rLZ-8 and PEG-rLZ-8 (as assessed using a BrdU incorporation assay) are shown in Fig. 8. When modified by PEG, the activity of the modification products of rLZ-8 decreased as expected.

Figure 8 BrdU assay for determining the biological activity of rLZ-8 and PEG-rLZ-8. The incorporation of BrdU was measured in the lymphocyte transformation test using rLZ-8 (▲) and PEG-rLZ-8 (□) as the antigens. The plotted optical density (OD) value is indicative of the amount of BrdU incorporated into replicating DNA in the stimulated lymphocytes.

Preliminary analysis of the characteristics of target products

Detection of protein content

The Lowry method was used to determine the concentration of protein in the modification product due to its outstanding linear correlation, both before and after modification. The amount of rLZ-8 decreased from 5 to 0.96 mg following the modification and purification process.

Validation of molecular weight and modification site

Several points were considered in order to correctly identify the modification site. Firstly, the PEG-peptide may not match the expected peptide mass fingerprint (PMF) and those that match usually represent unPEGylated peptides in the modification sample. Secondly, the PEGylated site is always located at the N-terminus or on a Lys side chain. Thirdly, PEGylated Lys is usually intractable to enzymatic cleavage, in which case, when Lys is modified at least one uncleaved site is always included, and the margin between the PEG-peptide and PEG should be close to the theoretical MW of the peptide, while the MS/MS peak shape of the PEG-peptide should be consistent with that of PEG.

From the data, we conclude that Lys is not the PEGylated site, as all Lys in the PEG-protein matched the PMF and the molecular weight of the PEG-peptides were close to that of PEG. Therefore, we concluded that the PEGylated site did not fall within the 75–111 amino acid fragment of rLZ-8 (this fragment is 4205.9858 Da). In the determination of the PMF of the PEG-protein, N-terminal peptides with and without the M fragment (SDTALIFR) were observed, so the PEGylated site is estimated to be at the N-terminus, as the falling off of M in the process is not expected to affect the correspondence in MW between the peptides and the PMF (Fig. 9). Furthermore, the margin of the MW between PEG-peptides and PEG are relatively close to M, which provides further evidence that the PEGylated site is located at the N-terminus.

Figure 9 MS/MS analysis of PEG and PEG-peptide molecular weight.

Discussion

In this study, we established a strategy for modifying rLZ-8 using mPEG-SPA and evaluated the effect of various reaction parameters on the modification reaction. The pH of the reaction buffer was the determining factor in the modification reaction, and the modification reaction could not be carried out under acidic conditions. The desired reaction products were recovered in pH 8.0 phosphate buffer solution; however, the molar ratio of rLZ-8 to mPEG-SPA was also an important factor affecting the reaction products. A molar ratio of 1:1 yielded a single-site modification product, and the composition of the reaction products became more and more complex as the amount of mPEG-SPA was increased. When the molar ratio was >1:12, there were four species of products, of ~66, 44, 30 and 17.9 kDa. The reaction temperature had almost no effect on the modification reaction, and the reaction reached equilibrium after 1 h. From these data, we concluded that the best conditions to obtain a single-site modified product are: 0.05 M, pH 8.0 phosphate buffer solution, a 1:1 molar ratio of rLZ to mPEG-SPA, and stirring at room temperature for 2 h, protected from light.

PEG modification sites are generally at the N-terminus or on Lys side chains. The structural analysis of rLZ-8 (17) revealed that the active form of rLZ-8 is a non-covalently bonded dimer and that each monomer contains 6 Lys. Therefore, in theory, one rLZ-8 molecule may combine with 1–7 mPEG-SPA molecules, but the mPEG can only modify the N-terminus of the protein. Since mPEG-SPA has long-chain branches and is sticky, the greater the amount of mPEG-SPA that combines with the protein, the greater the reduction in activity, and the more complex the product composition is likely to be. In this study, we focused on optimizing reaction conditions to obtain a single-site modified product.

The MW of the single-site modified product is ~17.9 kDa, so we selected the Superdex 75 separation column to purify the modification reaction mixture. Purification results revealed that the modified products can be separated completely from the unreacted rLZ-8 and that the small molecule byproducts can be removed. Moreover, the single-site modified products were of high purity and the excess rLZ-8 could be recycled and reused in the experiment. Separation and purification of a variety of modified products in excess of mPEG-SPA is more difficult, and further studies are required to optimize recovery of other modification products.

An in vitro assay for assessing the biological activity of the single-site modified product indicated that mPEG-SPA altered the efficacy of the protein in a lymphocyte transformation assay. Additional in vivo experiments should be carried out to determine the pharmacokinetic properties, such as the half-life and effective dose, of the modified rLZ-8. Such detailed analysis is likely to facilitate the clinical application of modified products such as PEGylated rLZ-8.
