Introduction

Cancer cells grow more rapidly than tumoral blood vessels (1). This characteristic of cancer cells induces an intra-tumoral hypoxia (2) that in turn decreases the growth of cancer cells. When cancer cell growth is decreased, so is the cell’s sensitivity to oncologic therapies (3,4).

Mammalian cells produce energy primarily by oxidative phosphorylation (OXPHOS) and to a lesser extent by glycolysis. Cancer cells have increased glucose transporters, glycolytic enzymes and the proteins that inhibit OXPHOS. As a result, cancer cells have high levels of glycolysis and low levels of OXPHOS. Therefore, cancer cells switch their primary pathway of energy production from OXPHOS to glycolysis. This phenomenon was first described by Warburg (5) and is known as the Warburg effect. Mechanisms of the Warburg effect are poorly defined and may involve the transcription factor hypoxia-inducible factor-1 (HIF-1) (6).

HIF-1 comprises α and β subunits (7). Upon biosynthesis, HIF-1α is hydroxylated in the presence of oxygen and is then degraded in proteasomes (8). Thus, normal mammalian cells have HIF-1β but not HIF-1α. When cells are subjected to hypoxia, however, HIF-1α is stabilized and associated with HIF-1β. Thus, intra-tumoral hypoxia appears to be causally responsible for HIF-1α expression that is seen in different cancer cells (6). In addition, cancer cells may have an increased HIF-1α production (9). When cancer cells produce more HIF-1α than they can degrade, HIF-1α is accumulated. HIF-1α expression increases glucose transporters, glycolytic enzymes, and the inhibitors of OXPHOS. Therefore, cancer-induced HIF-1α plays a key role in the Warburg effect (10–13).

As the first step of glycolysis, glucose is phosphorylated by hexokinase to produce glucose-6-phosphate (G-6-P). Next, G-6-P is converted to fructose-6-phosphate by phosphoglucose isomerase (PGI). In cancer cells, the predominant form of hexokinase is hexokinase-2 (HK-II) that is attached to the outer membrane of the mitochondria (12). Inhibition of HK-II not only decreases energy production but also impairs the mitochondria in cancer cells. Several HK-II inhibitors have been developed, including 2-deoxy-D-glucose (2-DG) and 3-bromopyruvate (3-BrPA) (14–25).

After 2-DG is transported in cancer cells by overexpressed glucose transporters, it is phosphorylated by HK-II to produce 2-DG-6-phosphate (2-DG-6-P). However, this product cannot be metabolized further, so it accumulates in cancer cells and inhibits HK-II by allosteric feedback. Meanwhile, non-phosphorylated 2-DG competes with glucose for binding to HK-II, and the substrate competition inhibits HK-II as well. Furthermore, 2-DG-6-P competes with G-6-P for binding to PGI, and the second substrate competition inhibits PGI (14). Unlike 2-DG, 3-BrPA is an alkylating reagent that inactivates HK-II and dissociates the enzyme from the mitochondria (21). When 2-DG or 3-BrPA is used alone or in combination with other anticancer drugs, cancer cells are inhibited (15–25). However, it is unclear whether 2-DG and 3-BrPA have enhanced anticancer effects when they are used together. Here, we addressed this question in MiaPaCa2 and Panc-1 pancreatic cancer cells.

When cells are subjected to hypoxia, they undergo biological changes to adapt themselves to the hypoxic conditions. Whilst many of the hypoxia-induced changes are mediated by HIF-1α, some hypoxia-induced changes may be independent of HIF-1α (26). In the present study, we studied wild-type (wt) MiaPaCa2 and Panc-1 cells when they were incubated under hypoxic (HIF-1α-positive) or normoxic (HIF-1α-negative) conditions and we also studied MiaPaCa2 and Panc-1 variants that had HIF-1α-specific small interfering RNA (siRNA) and were devoid of HIF-1α in both normoxia and hypoxia. By comparing data from the different cells, we differentiated the hypoxia-induced changes that were dependent on HIF-1α from those that were independent of HIF-1α. In different experiments, we measured cell population, determined intracellular ATP and fumarate, and assessed the expression of HIF-1α, HK-II, Cu/Zn-superoxide dismutase (SOD1), and poly(ADP-ribose) polymerase (PARP).

Materials and methods

Pancreatic cancer cells

Wt MiaPaCa2 and Panc-1 cells were obtained from the American Type Culture Collection (Rockville, MD, USA). The MiaPaCa2 and Panc-1 cells that had HIF-1α-specific siRNA (namely si-MiaPaCa2 and si-Panc-1) were prepared as we previously described (10). In different assays, cells were plated in different vessels and were cultured at 37°C in 5% CO2 and 95% air (normoxia), using Dulbecco’s modified Eagle’s medium with 10% fetal bovine serum. When cells were 80% confluent, they were subjected to experimental incubation in which they were exposed to 2-DG (#D3179; Sigma) and 3-BrPA (#16490; Sigma) in normoxia or hypoxia. Hypoxic incubation (1% O2, 5% CO2 and 94% N2) was set up as previously described (10).

Western blotting

Whole-cell proteins were extracted using RIPA lysis and extraction buffer (Thermo Scientific). In some experiments, nuclear proteins were extracted (10). Proteins were separated on 8% SDS gel and transferred to PVDF membranes. HIF-1α was determined either in nuclear proteins using a monoclonal anti-HIF-1α antiserum (#610958; BD Biosciences) or in whole-cell proteins using a polyclonal antiserum (#100-449; Novus). HK-II, SOD1 and PARP were determined in whole-cell proteins, using antisera from Santa Cruz Biotechnology Inc., (#6521), StressMarq Biosciences Inc., (SPC-115C/D) and Cell Signaling Technology (#9532). Topo1, β-actin and glyceraldehyde 3-phosphate dehydrogenase (GAPDH) were determined as loading controls, using antisera from TopoGEN, Inc., (#2012-2) and Abcam (#8227 and #9483). Secondary antisera were produced by Amersham (#NA931 and #NA934) and Chemicom (#AP106P). Each protein was assayed at least 3 times.

MTT viability assay

Cells in 96-well plates were exposed to: i) 2-DG alone (0.3–18 mM), ii) 3-BrPA alone (50–200 μM), iii) both 3-BrPA (50–200 μM) and 2-DG (1 mM), or iv) neither 2-DG nor 3-BrPA (control) for 22 h in normoxic or hypoxic conditions. After a solution of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT, 5 mg/ml) was added (10 μl/well), all cells were incubated in normoxia for 2 h. The cells were dissolved in isopropanol with 4 mM HCl, and MTT values were read in a spectrophotometer using a wavelength of 570 nm.

Other assays

MiaPaCa2 cells were plated either in 24-well plates for ATP assay or in Petri dishes for fumarate assay. During experimental incubation, cells were exposed for 4 h to 2-DG alone (4 mM), 3-BrPA alone (25 μM), both 2-DG (1 mM) and 3-BrPA (25 μM), or neither 2-DG nor 3-BrPA. ATP and fumarate were determined using BioVision kits #354 and #633 (Mountain View, CA, USA). Proteins were determined using a BCA assay kit.

Statistical analysis

Data are the means ± SEM. When three or more groups were involved, results were analyzed using analysis of variance followed by the Student’s t-test. When two groups were involved, the Student’s t-test was used. P<0.05 was considered to indicate statistically significant differences.

Results

HIF-1α expression in studied cells

Wt-MiaPaCa2 and wt-Panc-1 cells expressed HIF-1α in hypoxia but not normoxia (Fig. 1A). As a result of RNA interference, HIF-1α expression was completely inhibited in hypoxic si-MiaPaCa2 cells and largely inhibited in hypoxic si-Panc-1 cells (Fig. 1B). Neither si-MiaPaCa2 cells nor si-Panc-1 cells had HIF-1α in normoxia (data not shown).

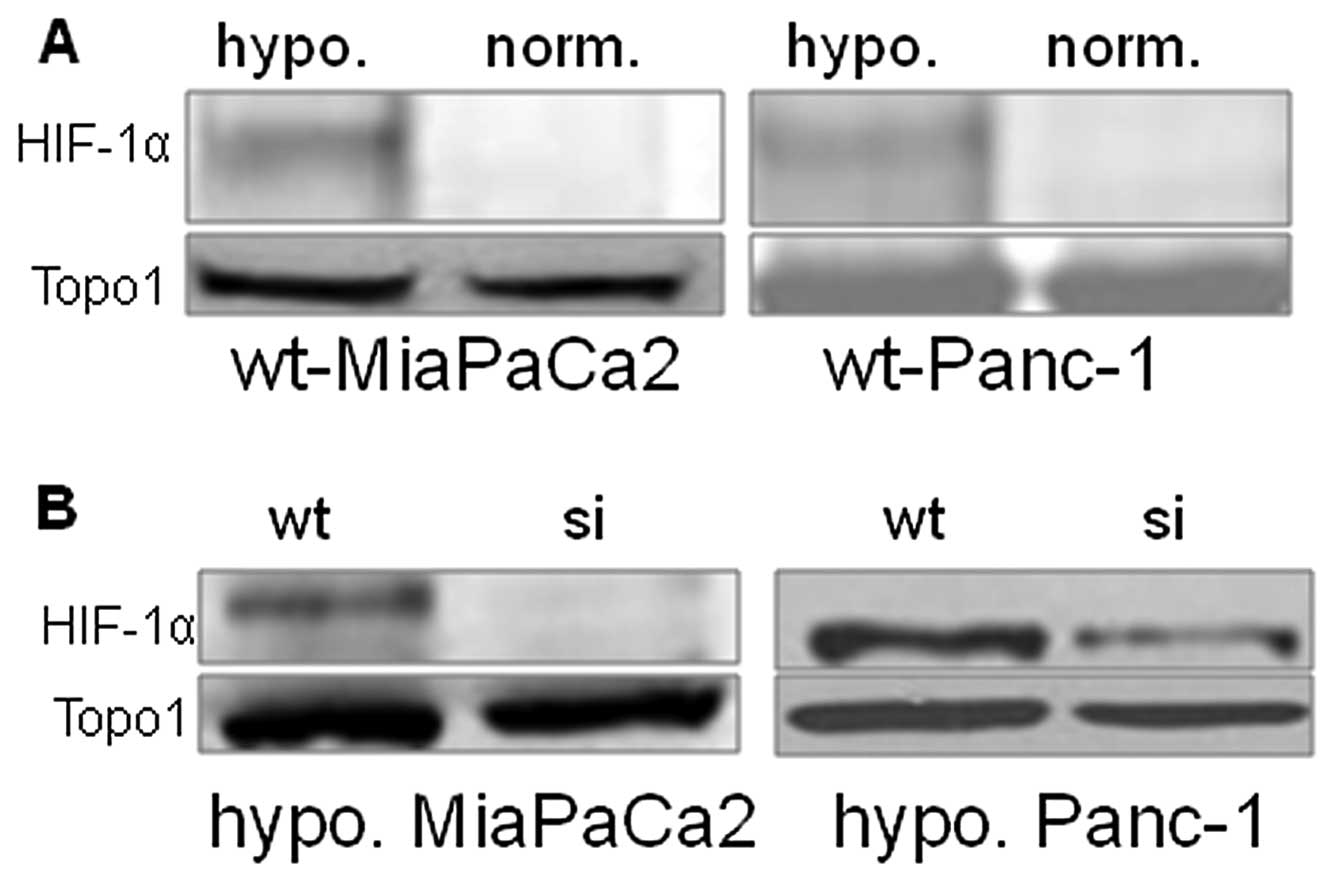

Figure 1 HIF-1α was determined by western blot analysis, using Topo1 as a loading control. (A) HIF-1α in wild-type (wt) MiaPaCa2 and Panc-1 cells that were cultured under hypoxic or normoxic conditions. (B) HIF-1α in hypoxic si-MiaPaCa2 and si-Panc-1 cells, using hypoxic wt cells as positive controls.

Effects of 2-DG and 3-BrPA on cell viability

Given that neither wt-MiaPaCa2 nor si-MiaPaCA2 cells had HIF-1α in normoxia, these normoxic cells were essentially identical in terms of HIF-1α expression. Thus, although these normoxic cells (i.e., wt and si cells) were incubated separately during MTT assay, data from them were pooled and are shown in the same groups. As shown in the left panel in Fig. 2A, normoxic MiaPaCa2 cells were decreased by each of the four 2-DG concentrations tested (0.3-, 1-, 4- and 18-mM). In hypoxia, however, significant decreases were seen when si-MiaPaCa2 and wt-MiaPaCa2 cells were exposed to the two highest 2-DG concentrations but not the lower ones (Fig. 2A). Thus, the lowest effective dose of 2-DG for hypoxic MiaPaCa2 cells (4 mM) was higher than that for normoxic cells (0.3 mM), which suggests that hypoxia decreased 2-DG sensitivity. When cell-inhibiting effects of 2-DG were compared across different cell types, 18 mM 2-DG induced greater cell decrease in hypoxic MiaPaCa2 cells, than in normoxic ones (Fig. 2A). When different types of Panc-1 cells underwent the same 2-DG treatment, they were all decreased by the two highest concentrations of 2-DG (4 and 18 mM). Thus, normoxic Panc-1 cells were less sensitive to 2-DG than normoxic MiaPaCa2 cells, as reported in a previous study (15). In addition, 18 mM 2-DG decreased Panc-1 cells more in hypoxia, than in normoxia (Fig. 2B).

Figure 2 (A) MiaPaCa2 and (B) Panc-1 cells were exposed to 0–18 mM 2-DG in normoxia or hypoxia for 22 h. After MTT was added, all cells were incubated in normoxia for 2 h. MTT values were determined to measure the size of the cell population. Assays were performed for ≥14 times in MiaPaCa2 cells and ≥10 times in Panc-1 cells. Each time, cell cultures were prepared in triplicates. Data were calculated using control-cell (0 mM 2-DG) values as 100%. *P<0.05, **P<0.01 and ***P<0.001. #Significant difference (P<0.001) between indicated hypoxic cells and their normoxic counterparts.

When used alone, 50 μM 3-BrPA did not decrease any MiaPaCa2 cells (Fig. 3A-C). When 50 μM 3-BrPA was combined with 1 mM 2-DG, however, significant decreases were seen in hypoxic wt- and si-MiaPaCa2 cells (Fig. 3B and C). When 3-BrPA was increased to 100–200 μM, all MiaPaCa2 cells were decreased, and the cell decrease was further augmented by additional 2-DG (Fig. 3A-C). When Panc-1 cells were subjected to the same assay, results were similar to those seen in MiaPaCa2 cells (Fig. 3D-F).

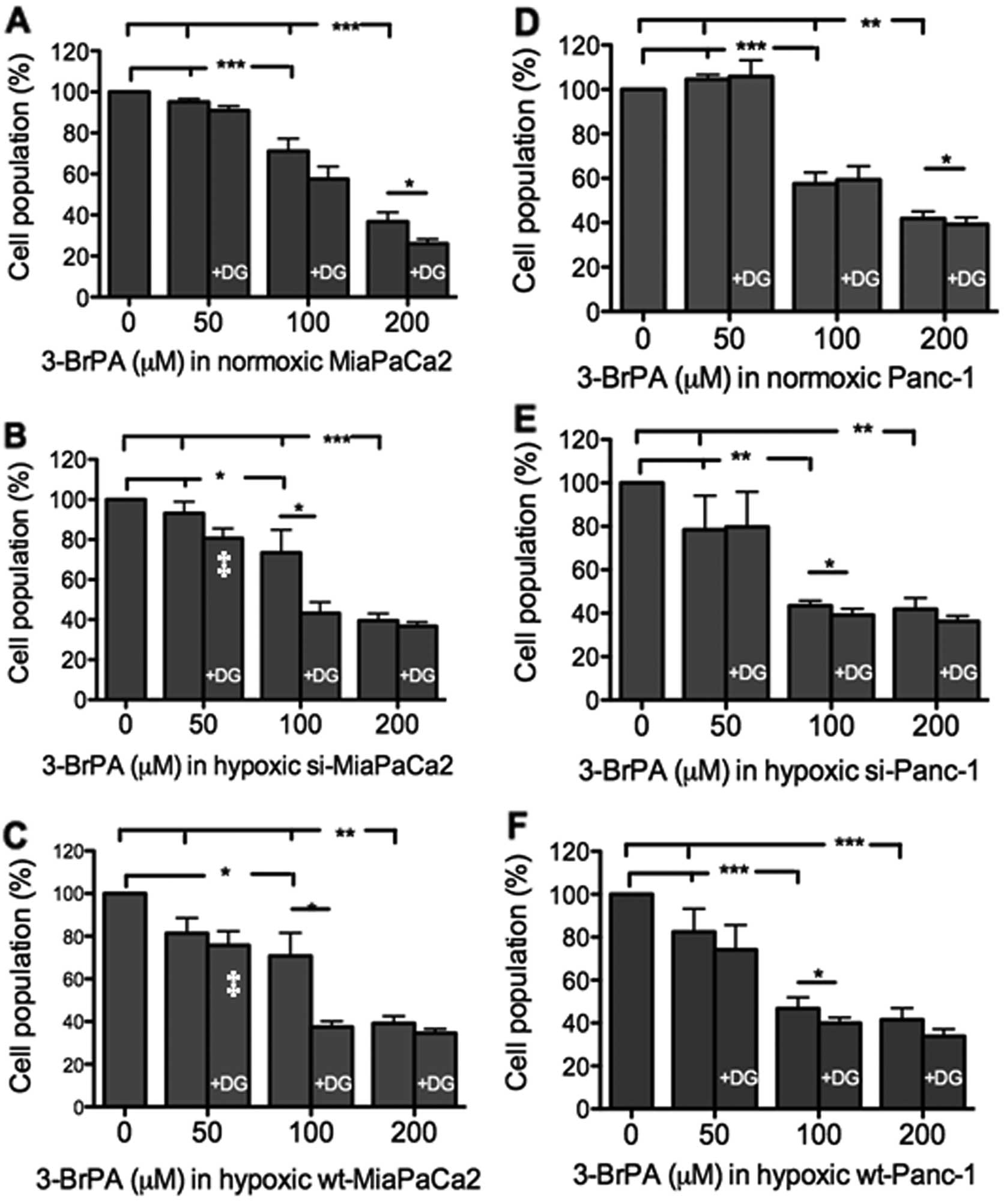

Figure 3 (A–C) MiaPaCa2 and (D–F) Panc-1 cells were treated with 3-BrPA (50–200 μM) in the absence and presence of additional 2-DG (1 mM). Control cells were treated without 2-DG and 3-BrPA. Please see the Fig. 2 legend for details. *P<0.05, **P<0.01 and ***P<0.001. ‡Significant difference (P<0.001) between indicated cells and controls (0 μM 3-BrPA).

Mechanisms underlying the cell decrease induced by 2-DG and 3-BrPA

Separate use of 2-DG and 3-BrPA significantly decreased ATP in hypoxic si-MiaPaCa2 cells but not in any wt-MiaPaCa2 cells (Fig. 4A). When 3-BrPA and 2-DG were combined, significant decreases in ATP were seen in all cell types (Fig. 4A). When HIF-1α and HK-II were determined in hypoxic wt-MiaPaCa2 cells, we found that 2-DG decreased HIF-1α in a moderate manner but had no effects on HK-II (Fig. 4B). By contrast, 3-BrPA decreased HIF-1α profoundly in both the absence and presence of 2-DG, and also decreased HK-II in the same cells (Fig. 4B). When fumarate was determined in hypoxic wt-MiaPaCa2 cells, we found that 3-BrPA increased this mitochondrial metabolite in both the absence and presence of 2-DG (Fig. 4C).

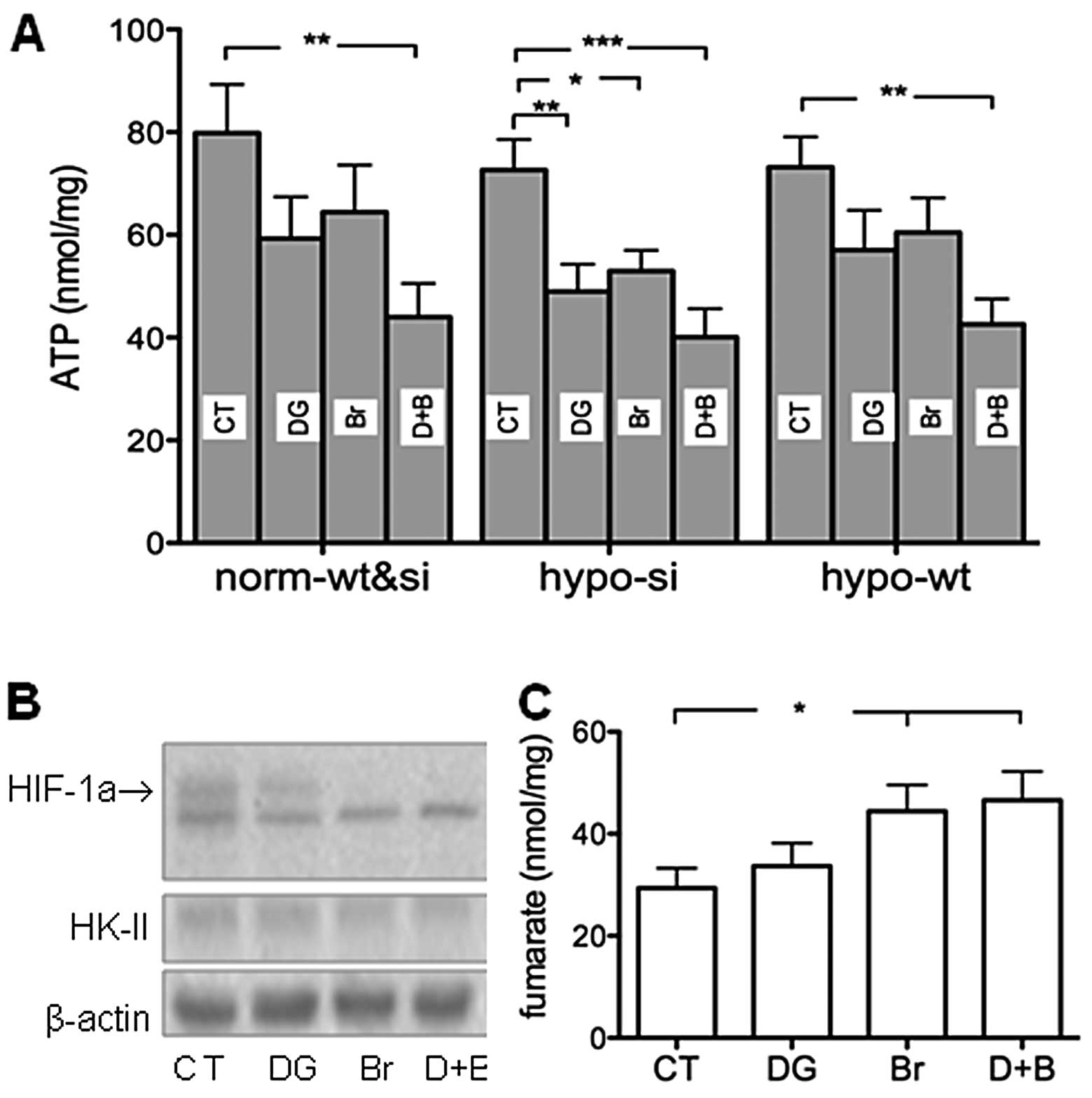

Figure 4 Three types of MiaPaCa2 cells underwent a 4-h exposure to 2-DG alone (4 mM, DG), 3-BrPA alone (25 μM, BP), both 2-DG (1 mM) and 3-BrPA (25 μM) (D+B), or neither 2-DG nor 3-BrPA (CT). (A) ATP, (B) HIF-1α, HK-II, and (C) fumarate were determined. ATP and fumarate data were normalized with protein contents (in mg). *P<0.05, **P<0.01 and ***P<0.001.

2-DG did not change SOD1 in any cells tested, whereas 3-BrPA decreased this antioxidant enzyme in both the absence and presence of 2-DG (Fig. 5A). Furthermore, the SOD1 decrease was more pronounced in two HIF-1α-negative cell types, than in hypoxic wt-MiaPaCa2 cells (Fig. 5A). When PARP was determined, we used an antiserum that recognized both full-length PARP (116 kDa) and a cleaved PARP molecule (c-PARP, 89 kDa). 2-DG did not change PARP contents, whereas 3-BrPA decreased PARP and c-PARP in both the absence and presence of 2-DG (Fig. 5B).

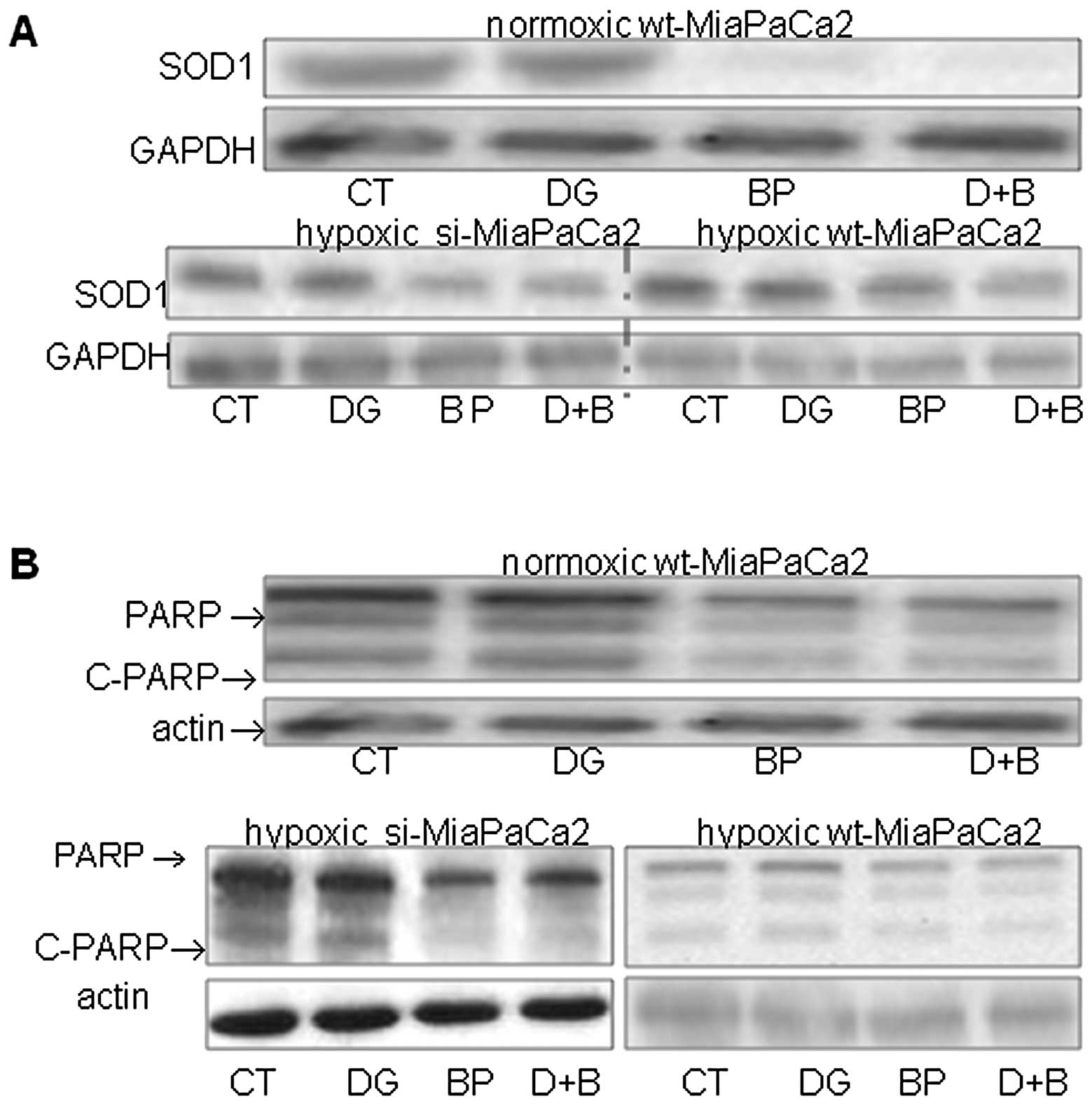

Figure 5 Three types of MiaPaCa2 cells underwent a 4-h exposure to 2-DG alone (4 mM, DG), 3-BrPA alone (25 μM, BP), both 2-DG (1 mM) and 3-BrPA (25 μM) (D+B), or neither 2-DG nor 3-BrPA (CT). (A) SOD1 and (B) PARP were determined by western blot analysis, using GAPDH and β-actin as loading controls. c-PARP, cleaved PARP.

Discussion

When different cancer cells were exposed to 2-DG or 3-BrPA in previous studies, exposure times ranged from 6 to 96 h, with 24 h being the usual choice (15–18, 20–24). In the MTT assay, we exposed cells to 2-DG and 3-BrPA for 24 h. The 2-DG and 3-BrPA concentrations we used were comparable to those used by others (15–18, 20–24).

When cancer cells are stressed by hypoxia, they increase glucose transporters and glycolytic enzymes to augment energy production by glycolysis. Thus, hypoxia may decrease the sensitivity of cancer cells to the reagents that inhibit glycolysis by substrate competition and/or by allosteric feedback. This may explain why hypoxic MiaPaCa2 cells were less sensitive to 2-DG than their normoxic counterparts. Markedly, the hypoxia-induced decrease in 2-DG sensitivity was seen in both wt- and si-MiaPaCa2 cells, which suggests that the decrease in 2-DG sensitivity was independent of HIF-1α.

In a previous study, hypoxic conditions downregulated more than 100 genes in mouse fibroblasts, with many of the genes being related to cell viability (26). This suggests that hypoxia has negative effects on cell viability. Normally, these negative effects may be masked by hypoxia-induced beneficial effects on cell biology, such as increased glycolysis and energy production. When antiglycolytic reagents completely inhibit glycolysis, however, the hypoxia-induced effects on cell viability are revealed. This explains why 18 mM 2-DG decreased cells to greater extents in hypoxia, than it did in normoxia.

When 3-BrPA was used alone in 50 μM, it did not affect the tested cells. However, when 50 μM 3-BrPA was combined with 1 mM 2-DG, hypoxic MiaPaCa2 cells were decreased. Of note, 1 mM 2-DG did not decrease the hypoxic cells when it was used independently. Thus, concurrent use of 2-DG (1 mM) and 3-BrPA (50 μM) decreased the lowest effective doses of both reagents. When 3-BrPA was used in higher concentrations (100–200 μM), its anticancer effects were also augmented by the additional 2-DG. Since 2-DG and 3-BrPA inhibit glycolysis by different molecular mechanisms (14), these mechanisms might cooperate when the two antiglycolytic reagents are used simultaneously.

When stressed by hypoxia, HIF-1α-negative si-MiaPaCa2 cells were unable to increase glycolysis adequately. This may explain why separate use of 2-DG and 3-BrPA only decreased ATP in the HIF-1α-negative cells. When glycolysis was completely inhibited by concurrent use of 2-DG and 3-BrPA, however, significant decreases in ATP were seen in all cell types. Thus, the present ATP data suggest that HIF-1α helped cells maintain ATP contents.

HIF-1α in hypoxic wt-MiaPaCa2 cells was moderately inhibited by 2-DG and profoundly inhibited by 3-BrPA. The mechanisms underlying the HIF-1α inhibition are unclear. However, the data suggest that 2-DG and 3-BrPA compromised cancer cells not only by inhibiting glycolysis but also by decreasing HIF-1α expression. In 3-BrPA-treated cells, the HIF-1α decrease may be responsible for the concomitant decrease in HK-II expression.

In cancer cells, defects in the mitochondria may increase mitochondrial metabolites such as fumarate and succinate (29). As a result, these metabolites may exit mitochondria and accumulate in the cytosol. Since fumarate and succinate inhibit HIF-1α degradation, their accumulation in the cytosol may be associated with an increased HIF-1α expression (29). In the present study, however, 3-BrPA was seen to both increase fumarate and decrease HIF-1α. Thus, it appears that fumarate did not play a key role in HIF-1α expression by MiaPaCa2 cells. The increase in fumarate may be a result of impairments in the mitochondria of the 3-BrPA-treated cells. In a recent study, 3-BrPA was shown to inhibit mitochondrial respiration in hepatocellular carcinoma cells (26).

Whole-cell SOD1 levels are an index of mitochondrial integrity (30). In the present study, SOD1 was decreased in 3-BrPA-treated cells, which suggests that 3-BrPA impaired the mitochondria (27). Furthermore, 3-BrPA-induced SOD1 decreases were more pronounced in two HIF-1α-negative MiaPaCa2 cell types, than in hypoxic wt-MiaPaCa2 cells. This suggests that HIF-1α protected mitochondria from 3-BrPA-induced damages. Apoptosis and necrosis are two cell-death modalities. When cancer cells undergo apoptosis, they show decreased PARP and increased c-PARP (28). When cancer cells undergo necrosis, their PARP contents are normal or decreased, and their c-PARP contents are not increased (22,31). In this light, the present PARP data suggest that 3-BrPA killed MiaPaCa2 cells by necrosis. In a previous study, 3-BrPA was found to induce necrosis in melanoma cells (32).

In summary, the present study shows that concurrent use of 2-DG and 3-BrPA increases anticancer effects of these antiglycolytic reagents; it also demonstrates that hypoxia and HIF-1α regulate 2-DG and 3-BrPA effects. Addition of an HIF-1α inhibitor to combined 2-DG and 3-BrPA may further increase the anticancer effects of these antiglycolytic reagents.
