Introduction

Prostate cancer has a high cancer incidence and mortality worldwide (1). Metastasis occurs in over one-third of patients leading to a poor prognosis despite the use of surgery, chemotherapy and radiotherapy (2–4). Thus, it is essential to develop efficient anticancer agents to inhibit metastasis. Invasion, as a key step of metastasis, contributes to cancer progression. The development of anti-invasion drugs is therefore an important strategy to combat prostate cancer.

Dietary intake of cruciferous vegetables was demonstrated to reduce the risks of various types of cancer (5–7). Previous findings have shown that the potential anti-carcinogenic properties of cruciferous vegetables result from sulforaphane (SFN), which is a strong anticancer component (8–11). SFN may suppress cancer progression via a few anti-proliferative mechanisms (12–15). In a previous study, we found that SFN inhibited invasion in human glioblastoma cells through activation of the ERK1/2 signaling pathway (16). However, whether SFN inhibits invasion in human prostate cancer cells remains to be determined. Thus, these effects and the signaling pathways underlying invasion inhibition should be investigated.

Extracellular signal-regulated kinases (ERK1/2) have been shown to have pivotal roles in cell proliferation, differentiation, apoptosis and invasion (17–21). The ERK1/2 pathway triggered oncogene and tumor-suppressor gene expression depending on the time and strength of ERK1/2 activation (17,21,22). It has been indicated that transient ERK1/2 phosphorylation (5–15 min stimulation) resulted in cell proliferation, migration and invasion. By contrast, sustained (>15 min stimulation) activation of ERK1/2 exhibited the opposite effects (17,21–25). Previous results demonstrated that human chorionic gonadotropin β (hCGβ) promoted cell migration and invasion in human glioblastoma and prostate cancer cells by increasing the expression and activity of MMP-2, resulting from the sustained activation of ERK1/2 (26,27). It was also found that the sustained phosphorylation of ERK1/2 by SFN contributed to the suppression of migration and invasion in human glioblastoma cells (16). Thus, in the present study, we investigated whether SFN inhibited invasion in human prostate cancer cells via sustained activation of ERK1/2 and the downstream signaling.

Cadherins, a superfamily of transmembrane glycoproteins, mediate calcium-dependent cell adhesion (28). E-cadherin, a hallmark of epithelial-mesenchymal transition (EMT), belongs to the classic cadherin subfamily and is thought to maintain cell polarity and strengthen intercellular adhesion and acts as a suppressor of invasion. Downregulation of E-cadherin is frequently observed in various metastatic human epithelial cancers (29). It was reported that E-cadherin expression was linked to ERK1/2 activation in tumor cell migration and invasion (30–32). In the present study, we investigated whether E-cadherin was regulated through SFN-induced ERK1/2 phosphorylation in human prostate cancer cells.

The cellular adhesion molecule CD44 is a transmembrane glycoprotein and an EMT marker correlated with breast, prostate, colon, head and pancreatic cancers (33). CD44 isoforms (CD44v) are produced through alternative splicing of the CD44v precursor mRNA (33). Altered expression or dysfunction of CD44 variant 6 (CD44v6) is involved in the aggressive behavior of various types of cancer and correlates with poor prognosis in human malignancies such as breast, leukemia, gastric and colorectal cancer (34–37). Additionally, SFN-induced ERK1/2 phosphorylation contributed to CD44v6 expression in human glioblastoma cells (16). Therefore, we hypothesized that SFN regulates CD44v6 via the activation of ERK1/2 in human prostate cancer cells.

The extracellular matrix (ECM) and basement membranes are crucial barriers against the invasion of malignant cells (38). Matrix metalloproteinases (MMPs) are undoubtedly associated with tumor invasion (39). MMP-2, which is involved in the degradation of type IV collagen and gelatin, is expressed at elevated levels in ovarian, uterine, breast, prostate cancer and melanoma (40–42). Previous results showed that ERK1/2 phosphorylation decreased the expression and activity of MMP-2 in glioblastoma cells (16). Thus, SFN may regulate MMP-2 through the ERK1/2 signaling pathway and contribute to the suppression of invasion in human prostate cancer cells.

In summary, in the present study we investigated the potential of SFN to suppress invasion and identified the underlying molecular mechanisms. Particularly, we aimed to determine key target proteins and establish more powerful strategies to prevent and treat prostate cancer.

Materials and methods

Reagents

D, L-SFN was purchased from Sigma (St. Louis, Mo, USA). RPMI-1640 culture medium was purchased from Hyclone (Logan, UT, USA). Fetal bovine serum (FBS) and penicillin-streptomycin were purchased from Invitrogen-life Technologies (Carlsbad, Ca, USA). Dimethyl sulfoxide (DMSO) was purchased from AppliChem GmbH (Darmstadt, Germany). An MTS assay kit was purchased from Promega (Madison, WI, USA). Transwell plates used for the invasion assay were purchased from Costar (Corning, Cambridge, MA, USA). Matrigel basement membrane matrix for cell invasion assay was purchased from BD Biosciences (Bedford, MA, USA). PD98059 was purchased from Cell Signaling Technology, Inc. (Shanghai, China). The antibodies, anti-ERK1/2, anti-phospho-ERK1/2 and anti-E-cadherin were purchased from Cell Signaling Technology. Anti-MMP-2 antibody and anti-CD44v6 were purchased from Abcam (Shanghai, China).

Cell culture

The human DU145 prostate carcinoma cell line was purchased from the Cell Resource Center, Peking Union Medical College (CRC/PUMC). The cells were cultured in RPMI-1640 medium supplemented with 10% FBS, 100 U/ml penicillin and 100 U/ml streptomycin at 37°C with 5% CO2 in a standard humidified incubator. The cells were treated with SFN and ERK1/2 inhibitor PD98059 (25 µM) during the logarithmic growth phase for 24 h.

Cell viability assay

DU145 cells were seeded in 96-well plates at 2×103 cells/well. After 12 h, the medium in each well was replaced with the medium containing different concentrations of SFN and the plate was incubated for 24 h. Subsequently, the cell viability was detected using an MTS assay kit according to the manufacturer's instructions. The absorbance values were measured by a BioTek® microplate reader (Synergy™ HT, Winooski, VT, USA) at a wavelength of 490 nm.

Morphological observation

DU145 cells were plated and grown in a 6-well culture plate until they reached 70% confluence. The cells were then washed with phosphate-buffered saline (PBS) and exposed to different concentrations of SFN (0, 5, 10, 15, 20, 25, 30, 35 and 40 µM) for 24 h. Cell morphology was photographed using a digital camera (Olympus, Tokyo, Japan) connected to a phase-contrast microscope (Leica DMIRB, Wetzlar, Germany).

Invasion assay

The Transwell system (24 wells, 8 µm pore size with polycarbonate membrane) coated with Matrigel was used for the in vitro invasion assays. Matrigel was diluted with serum-free RPMI-1640 to a final concentration of 2 mg/ml. The Transwell inserts were rehydrated with pre-warmed serum-free medium at 37°C for 30 min prior to seeding cells. A total of 2×105 cells were suspended in 100 µl serum-free medium and were added to the upper chamber. Medium containing 10% FBS and different concentrations of SFN was then added to the lower chamber, respectively. After 24 h, the cells in the upper chamber were carefully wiped with a cotton swab. The cells invading the lower surface of the filter were fixed with 100% methanol and stained with crystal violet. The invaded cells on the lower surface of the membrane filter were counted in five randomly fields under microscope, and the cell number was analyzed statistically.

Western blot analysis

DU145 cells from different treatment groups were collected and lysed with RIPA (Thermo Scientific, Waltham, MA, USA) containing protease inhibitors (Roche, Mannheim, Germany). The cell lysate was centrifuged at 12,000 rpm for 20 min. Proteins were separated by SDS-PAGE and transferred onto a nitrocellulose membranes via wet transfer. The membranes were blocked in 1.5% BSA in TBS Tween-20 (TBS-T) buffer and then incubated with primary antibody at 4°C overnight. Subsequently, the membranes were incubated with fluorescence-labeled secondary antibody (LI-COR Bioscience, Lincoln, NE, USA). After being washed with TBS-T for 3×5 min each, the membranes were scanned using the Odyssey Infrared Imaging System (LI-COR Bioscience).

Gelatin zymography

Following treatment, the medium with MMP-2 activity was collected from an equal number of cells and was centrifuged at 3,000 rpm for 5 min to remove cell debris. The samples were mixed with non-reduced loading buffer and subjected to a 10% SDS-polyacrylamide gel containing 0.1% gelatin as a substrate at 4°C. After electrophoresis, the gel was rinsed four times with denaturation buffer (2.5% Triton X-100) on a shaker to remove SDS at room temperature and then incubated in developing buffer (50 mM Tris-HCl, pH 7.5, 0.2 M NaCl, 5 mM CaCl2·2H2O, and 0.02% Brij-35, ph 7.6) for 42 h at 37°C. After incubation, the gel was stained using 0.5% Coomassie Brilliant Blue R-250 for 30 min and then destained with destaining solution (50% methanol, 10% acetic acid, 40% ddH2O). Enzyme activity was identified as bright bands against the dark blue background of the substrate.

Statistical analysis

Data are presented as means ± SD. Data were analyzed by ANOVA and subjected to analysis of variance with post-tests for comparison among specific groups. Bonferroni corrections for multiple comparisons against a single group were used. P<0.05 was considered statistically significant. Each experiment was repeated a minimum of three times.

Results

SFN inhibits cell viability in a dose-dependent manner

DU145 cells were incubated with increasing concentrations of SFN (0, 5, 10, 15, 20, 25, 30, 35 and 40 µM) for 24 h. SFN was dissolved in DMSO. The final concentration of DMSO in the medium was <0.01%. The medium containing DMSO without SFN was used in the control group. The cell viability was detected using the CellTiter 96® AQueous One Solution Cell Proliferation Assay kit (Promega). The results showed that SFN significantly inhibited cell viability in a dose-dependent manner at concentrations of 15–40 µM for 24 h (P<0.05, Fig. 1). Thus, a non-toxic concentration (<15 µM) was used as the optimal concentration of SFN for the invasion study.

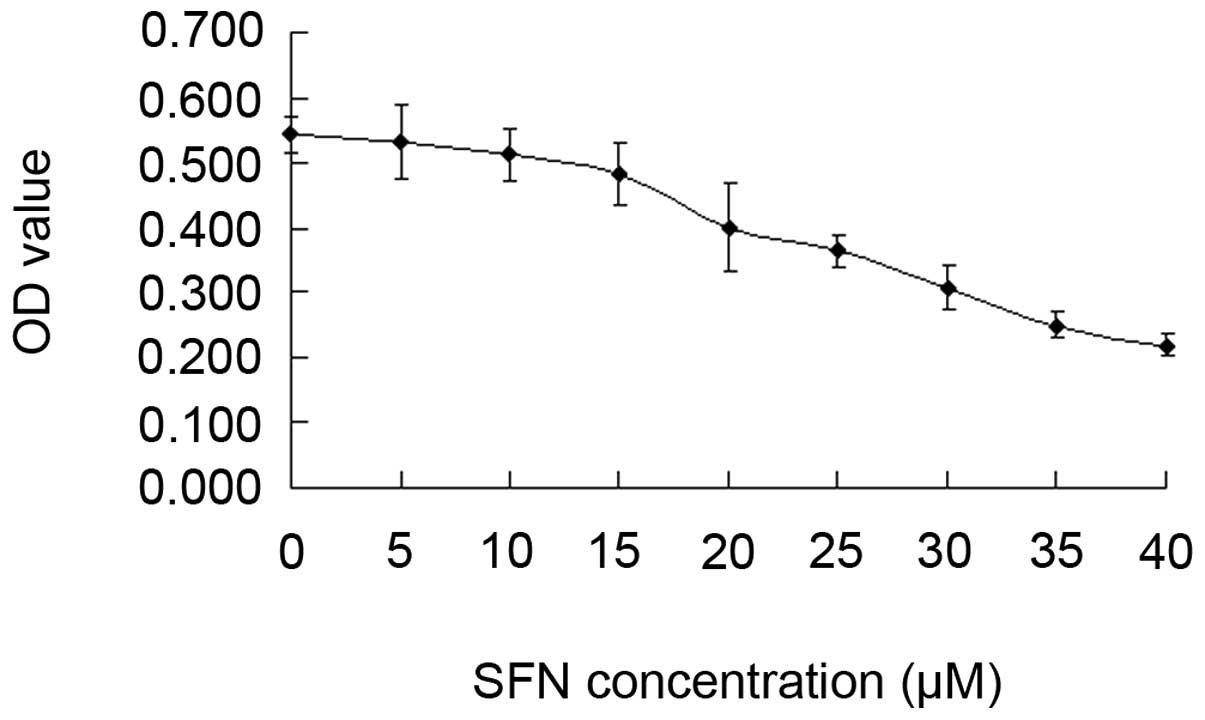

Figure 1 SFN inhibits cell viability. SFN-induced cell viability inhibition was measured by an MTS assay. DU145 cells were incubated in the medium with different concentrations of SFN (0, 5, 10, 15, 20, 25, 30, 35 and 40 µM) for 24 h. Cell viability is shown as the percentage of relative absorbance. Data are presented as mean ± SD from at least three separate experiments. SFN, sulforaphane.

SFN alters cell morphology in a dose- and time-dependent manner

Untreated DU145 cells presented a morphological change with some cell pseudopodia. We found that SFN-treated cells exhibited less pseudopodia and became rounded with the doses and times (Fig. 2). Pseudopodia are required in the migration and invasion of tumor cells. Therefore, we suggested that SFN may inhibit invasion in DU145 cells.

Figure 2 SFN alters cell morphology. Cell shapes were altered when the cells were treated with increasing concentrations of SFN (0, 5, 10, 15, 20 and 25 µM) for 24 h. Morphological observation was recorded by a Leica DMIRB microscope. Magnification, ×100. SFN, sulforaphane.

SFN inhibits cell invasion in a dose-dependent manner

Matrigel-coated Transwells were used to determine the effect of SFN on cell invasion. DU145 cells were treated with different concentrations of SFN (0, 5, 10 and 15 µM). The results showed that SFN significantly reduced cell invasion vs. the control group in DU145 cells (Fig. 3a). In order to determine whether SFN inhibited cell invasion by activating ERK1/2, we continued to treat cells with or without PD98059, the blocker of ERK1/2. The invasive ability of the cells treated with PD98059 and SFN was improved vs. the SFN-only treatment cells (Fig. 3B).

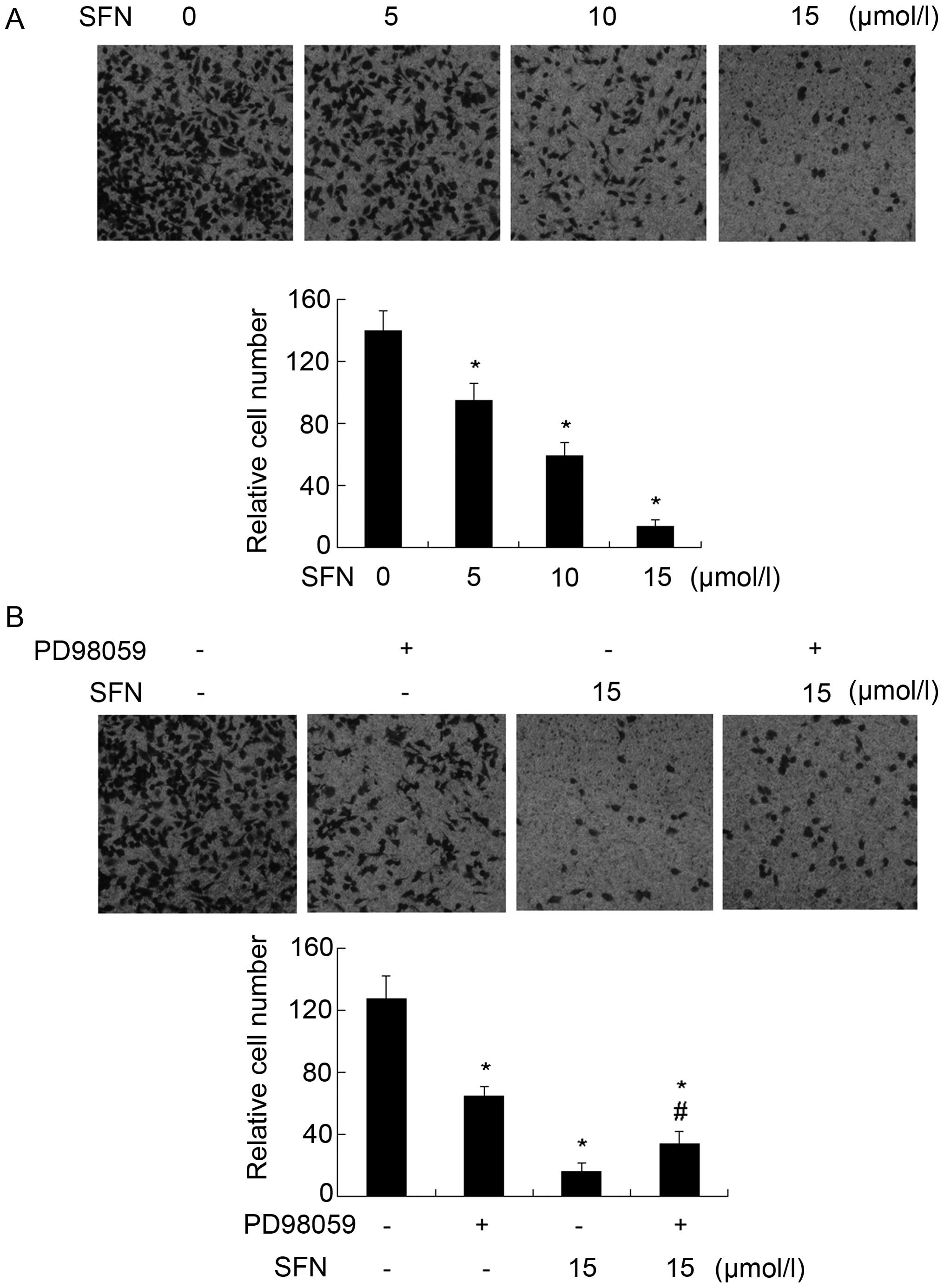

Figure 3 SFN inhibits cell invasion. (A) Cell invasion was assessed by a Matrigel-coated Transwell system. We seeded 2×105 cells in the medium with increasing concentration of SFN (0, 5, 10 and 15 µM) for 24 h. (B) Under the same conditions we incubated the cells with SFN (15 µM) with or without PD98059 to detect the cell invasive ability. *, indicates P<0.05 vs. control group. #, indicates P<0.05 vs. SFN-only group. Data are shown as means ± SD from three separate experiments. SFN, sulforaphane.

SFN activates ERK1/2 in a dose- and time-dependent manner

The ERK1/2 phosphorylation was tested in SFN-treated DU145 cells. SFN was added to the medium at different concentrations (0, 5, 10 and 15 µM) for 24 h. Western blot analysis showed that SFN induced ERK1/2 phosphorylation in a dose-dependent manner (Fig. 4A). We treated the cells with 15 µM SFN at different time-points (0, 12, 24 and 36 h). Western blot analysis revealed that ERK1/2 phosphorylation followed a time-dependent manner and increased to the peak at 24 h (Fig. 4B). PD98059 significantly diminished ERK1/2 phosphorylation and the level of activation was higher than that of the control (0 µM of SFN) (Fig. 4C).

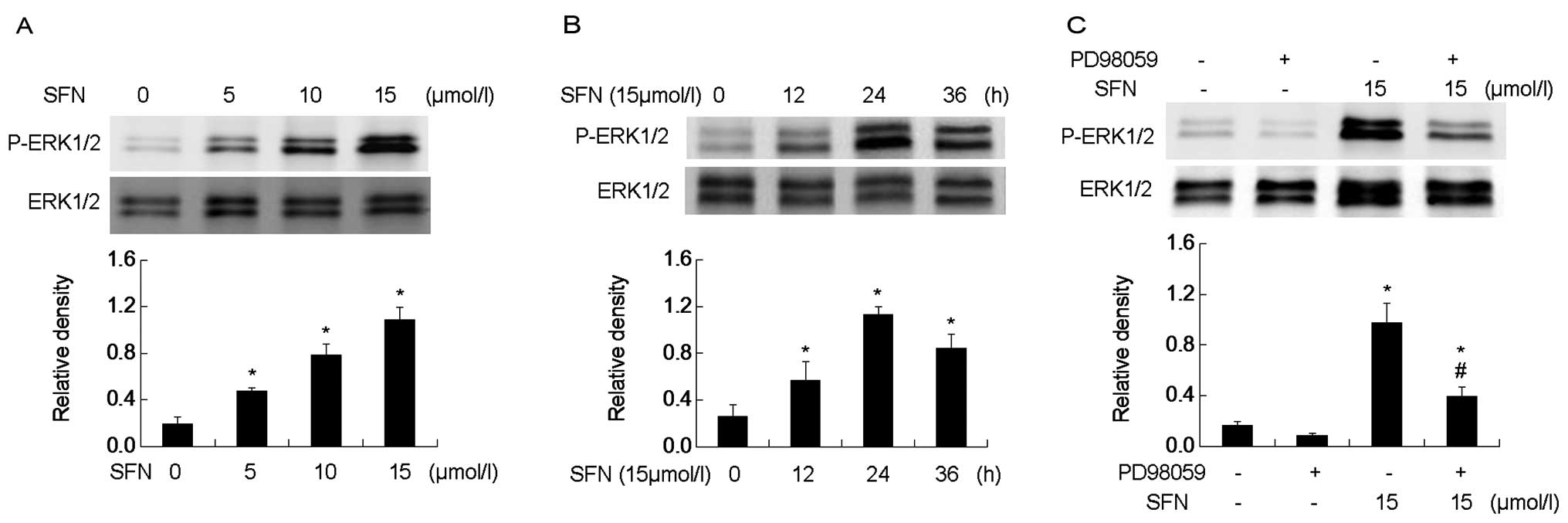

Figure 4 Western blot analysis shows that SFN activated ERK1/2. (A) We treated the DU145 cells in the medium with different concentrations of SFN (0, 5, 10 and 15 µM) for 24 h. (B) We treated the DU145 cells with 15 µM SFN for 0, 12, 24 and 36 h. (C) Prior to adding SFN, we pretreated DU145 cells with PD98059 for 1 h, then incubated cells for 24 h. *, indicates P<0.05 vs. control group. #, indicates P<0.05 vs. SFN-only group. Data were shown as means ± SD from three separate experiments. SFN, sulforaphane.

SFN upregulates E-cadherin by activating ERK1/2

In the present study, we investigated whether SFN regulated E-cadherin in DU145 cells. Western blot analysis showed that SFN upregulated E-cadherin significantly in a dose-dependent manner (Fig. 5A). To clarify whether the increased level of E-cadherin by SFN treatment was caused by phosphorylation of ERK1/2, we pretreated cells with PD98059. Western blot analysis showed that PD98059 significantly abolished the upregulation of E-cadherin triggered by SFN (Fig. 5B). This result indicated that SFN upregulated E-cadherin via sustained ERK1/2 phosphorylation.

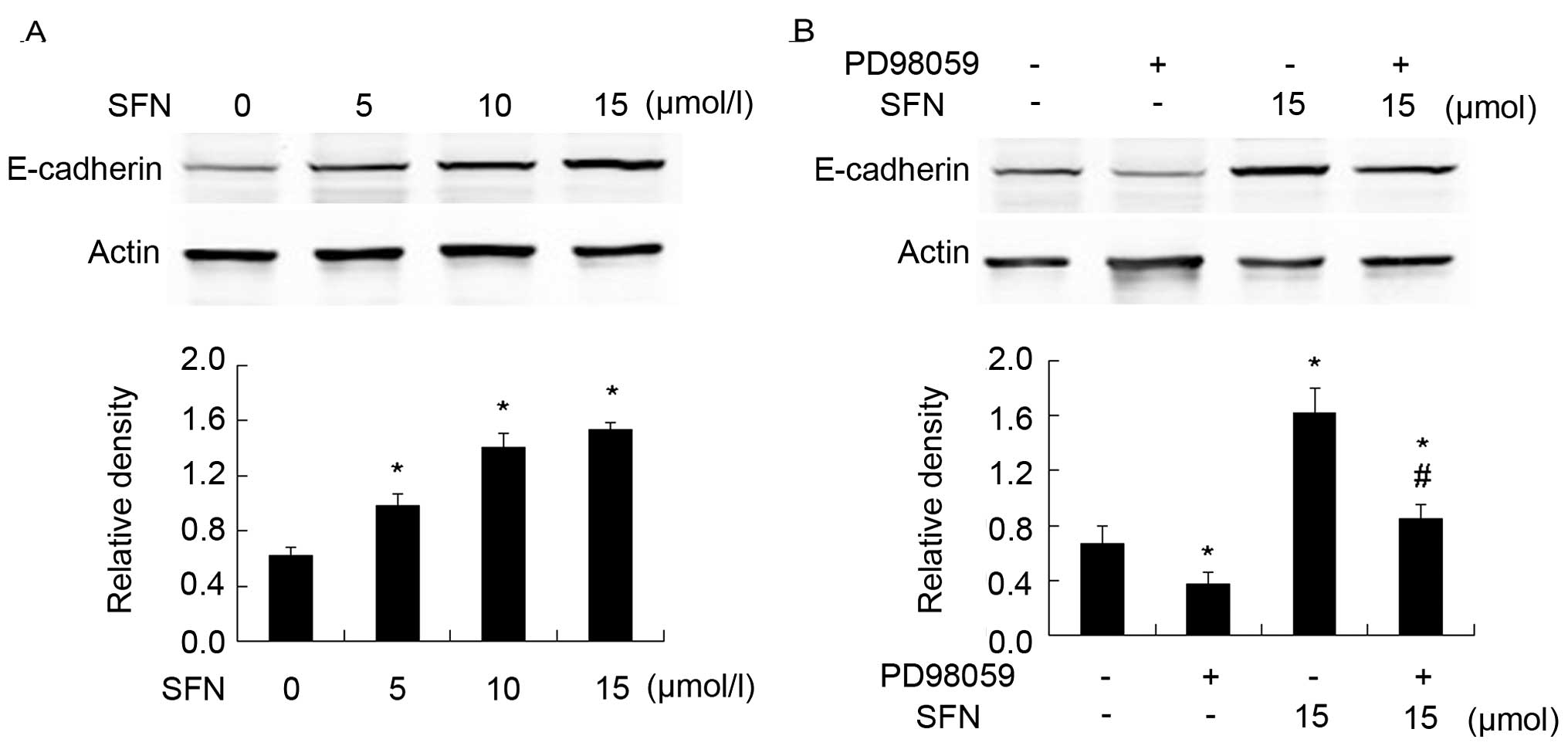

Figure 5 Western blot analysis shows that SFN upregulated E-cadherin by activating ERK1/2. (A) We exposed the cells to different concentrations of SFN (0, 5, 10 and 15 µM) for 24 h. (B) We treated the cells with PD98059 only, SFN (15 µM) only and both PD98059 and SFN (15 µM) for 24 h. *, indicates P<0.05 vs. control group. #, indicates P<0.05 vs. SFN-only group. Data are shown as means ± SD from three separate experiments. SFN, sulforaphane; ERK1/2, extracellular signal-regulated kinases.

SFN downregulates CD44v6 in a sustained manner

Western blot analysis showed that SFN downregulated CD44v6 significantly in a dose-dependent manner (Fig. 6A). The cells were treated with PD98059 to verify whether SFN regulated CD44v6 via ERK1/2 phosphorylation. However, western blot analysis showed that PD98059 was able to reverse the reduction of CD44v6 triggered by SFN (Fig. 6B). This result indicated that SFN markedly downregulated CD44v6 by phosphorylating ERK1/2.

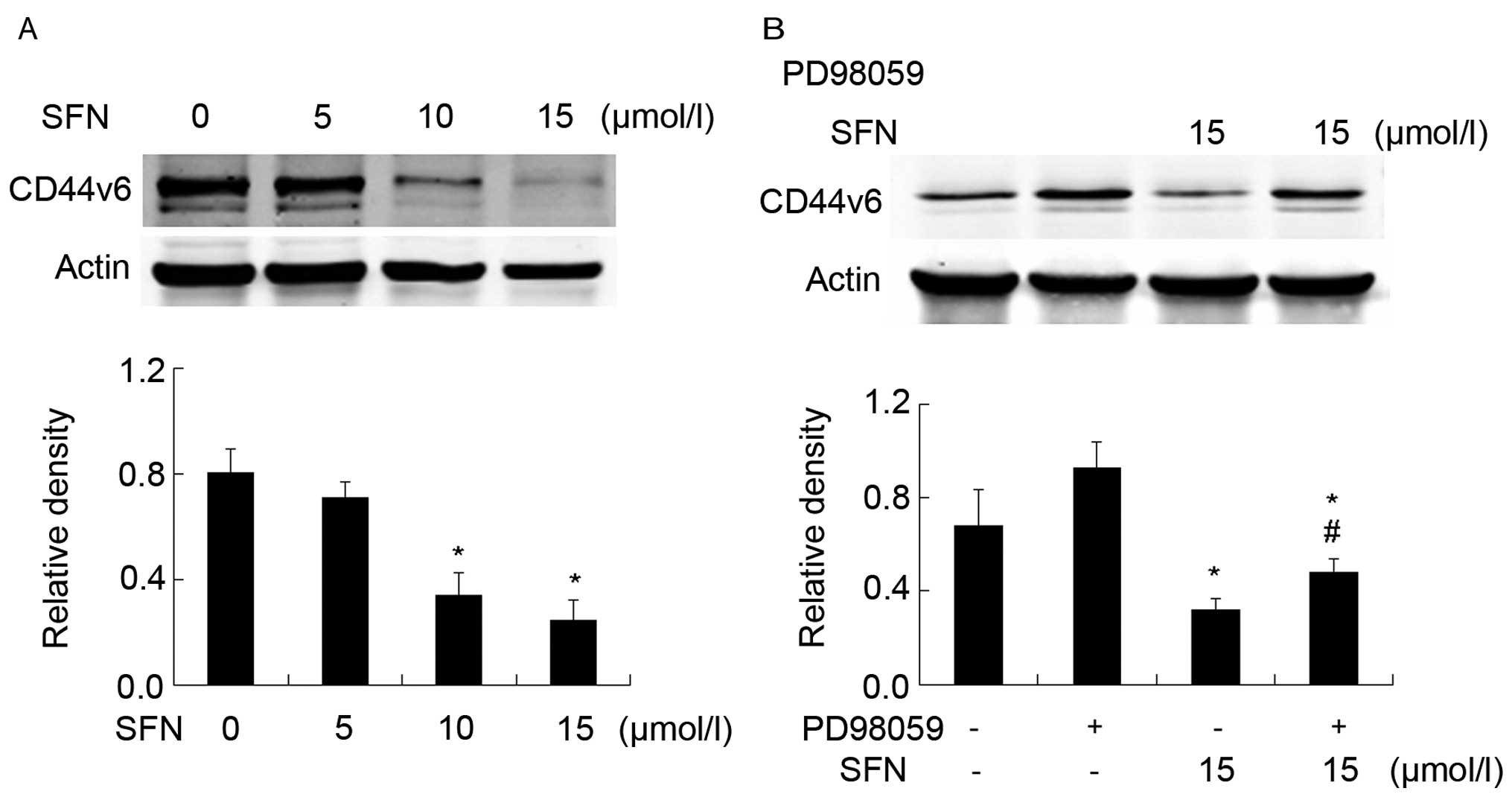

Figure 6 Western blot analysis shows that SFN downregulated CD44v6 by activating ERK1/2. (A) We exposed the cells to different concentrations of SFN (0, 5, 10 and 15 µM) for 24 h. (B) We treated the cells with PD98059 only, SFN (15 µM) only and PD98059 plus SFN (15 µM) for 24 h. *, indicates P<0.05 vs. control group. #, indicates P<0.05 vs. SFN-only group. Data are shown as means ± SD from three separate experiments. SFN, sulforaphane; ERK1/2, extracellular signal-regulated kinases; CD44v6, CD44 variant 6.

SFN downregulates pro-MMP-2 (72 kDa) expression and decreases active MMP-2 (64 kDa) activity

Western blot analysis showed that SFN downregulated pro-MMP-2 expression (Fig. 7A). Gelatin zymography revealed that SFN reduced active MMP-2 in a dose-dependent manner (Fig. 7C). Furthermore, the cells were pretreated with PD98059 to verify whether this regulation of MMP-2 resulted from the phosphorylation of ERK1/2. No obvious variance between SFN-only treatment and PD98059 plus SFN treatment was identified, suggesting that blocking the phosphorylation of ERK1/2 did not eradicate inhibition of MMP-2 expression and activation induced by SFN. Thus, the ERK1/2 signaling pathway was dispensable in the SFN-mediated reduction of MMP-2 expression and activation thereof. (Fig. 7B and D).

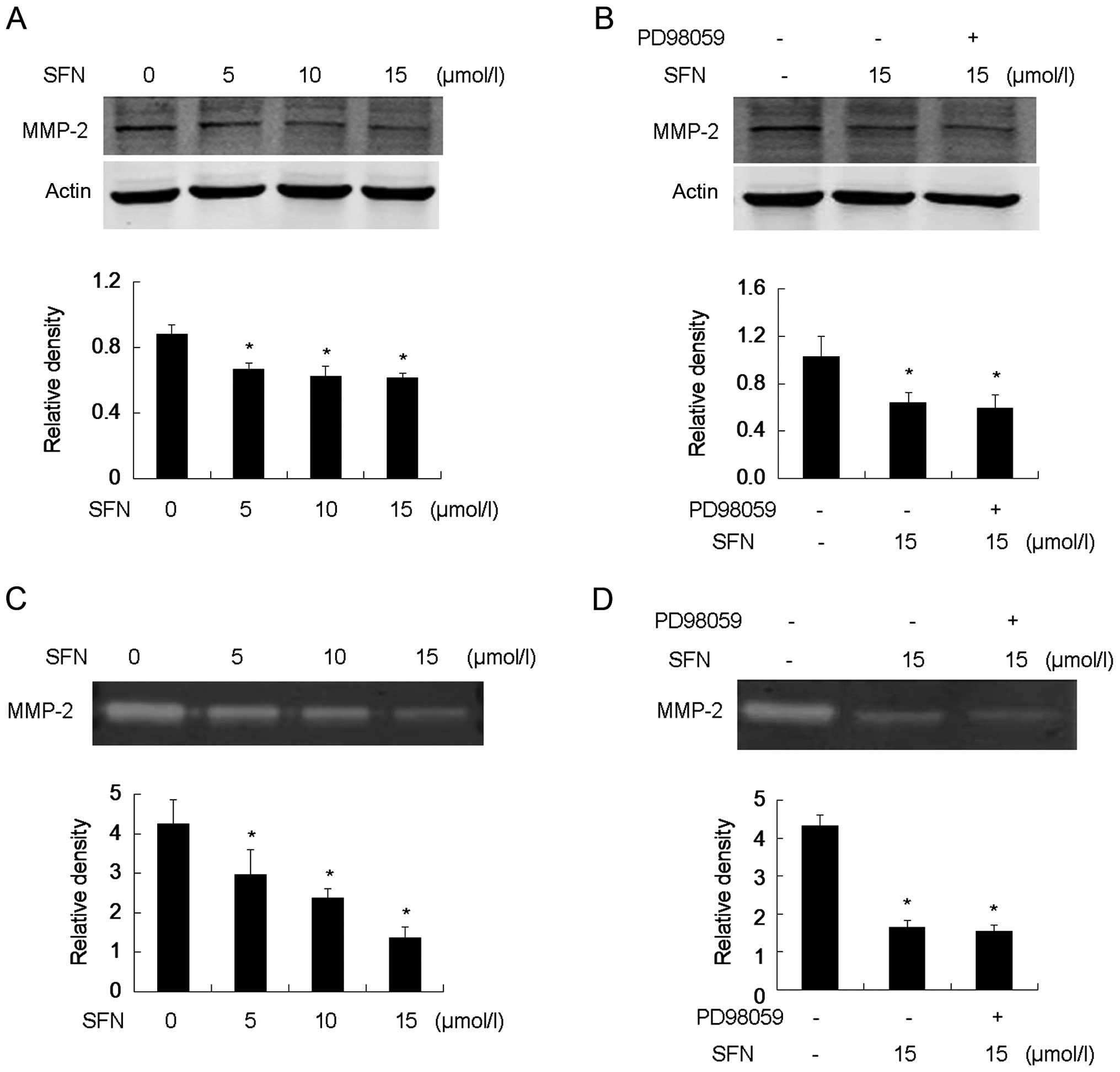

Figure 7 SFN downregulates pro-MMP-2 expression and decreases active-MMP-2 activity. (A) We treated the cells in the medium with different concentrations of SFN (0, 5, 10 and 15 µM) for 24 h. Western blot analysis indicated that SFN downregulated pro-MMP-2 in a dose-dependent manner. (B) We treated the cells with SFN (15 µM) only and both PD98059 and SFN (15 µM) for 24 h. (C) The conditioned medium from the above treatment for gelatin zymography assay was collected. (D) We incubated the cells in serum-free medium with SFN (15 µM) adding or not adding PD98059 for 24 h. *, indicates P<0.05 vs. control group. Data are shown as means ± SD from three separate experiments. SFN, sulforaphane.

Discussion

SFN has been identified as a promising agent in preclinical evaluation and is able to block carcinogenesis effectively. Previous studies have reported that normal human bronchial epithelial and normal prostate epithelial cells are more resistant to SFN-induced apoptosis compared with human lung and prostate cancer cells (9). Although SFN potentially resists metastasis by suppressing cell migration and invasion in some types of cancer, the involved mechanisms remain to be determined (16,43–45).

In the present study, we show that SFN potently inhibited proliferation and invasion in vitro. The results of the MTS assay showed that SFN suppressed proliferation significantly at a concentration of >15 µM. The morphological observation showed that cell pseudopodia were markedly different. These results provide an initial reference to determine the optimal working concentration in invasion study.

The ERK1/2 signaling pathway contributes to tumor occurrence, development and metastasis (17,21,22). Our results indicated that SFN induced ERK1/2 phosphorylation in a dose- and time-dependent manner. We also found that SFN suppressed invasion through the activation of ERK1/2. These data are consistent with those obtained in a previous study (16). One possibility for this activation of ERK1/2 may result from the production of reactive oxygen species (ROS) by participation of SFN (46). SFN administration to prostate cancer cells led to ROS generation, which induced apoptosis and metastatic inhibition (14). In addition, we demonstrated that SFN upregulated E-cadherin and downregulated CD44v6 via the activation of ERK1/2. These two molecules are major players in mediating EMT. EMT is a reversible process, whereby the epithelial cells lose their junctions and polarity, reorganize their cytoskeleton, gain ability of motility, transit into mesenchymal cells and develop an invasive phenotype (30). The functional loss of E-cadherin is the typical characteristic of EMT and this contributes to the destabilization of adheren junctions, as well as tumor invasion and metastasis (20,30,47,48). Therefore, SFN is capable of suppressing the process of EMT by inducing E-cadherin. EMT is manipulated by a group of transcription factors, including SNaIl, zinc-finger E-box-binding (ZEB) and TWIST. TWIST can be phosphorylated by ERK1/2, which promotes its nuclear import and functions, such as controlling the expression of E-cadherin (30). Notably, it has been suggested that MMPs regulate SNaIl and ZEB transcription, and modulate the E-cadherin level (30,44). As a feedback loop, the loss of E-cadherin induced ZEB-dependent MMP-2 level in non-small cell lung cancer (32). Those findings are consistent with our results whereby SFN suppressed cell invasion by inducing E-cadherin and reducing MMP-2 in a dose-dependent manner. We also found that SFN significantly reduced the expression of CD44v6 and PD98059 attenuated the SFN-mediated reduction of CD44v6, suggesting that the downregulation of CD44v6 induced was through ERK1/2 activation. These results were coincident with those in the other studies. Overexpression of CD44v6 was found in primary prostate cancer tissues and metastases, but not in normal prostate tissues (3). It was also shown in the same study that knockdown of CD44v6 by siRNA decreased prostate cancer cell invasive and adhesive ability to hyaluronic acid (HA), suggesting that CD44v6 is an important participant in mediating tumor cell adhesion during metastasis (3). Another study showed that CD44 was a downstream effector of ERK1/2 inducing cell migration and invasion in vitro and tumor growth and metastasis in vivo in human oral cancer (19). It was reported that CD44v6 induced EMT in prostate cancer and the induction of EMT was accompanied by a shift in CD44 isoforms in breast cancer cells (49). Therefore, SFN was suggested to suppress EMT as well as invasion via the downregulation of CD44v6 and upregulation of E-cadherin.

A recent study described that the CD44v6 was found to be positively correlated with MMP-2 in papillary thyroid cancer (50). Furthermore, CD44 promoted invasion by anchoring MMPs on the tumor cell surface and it was cleaved by MMPs in the extracellular of several tumors (51). Emerging evidence indicates that MMPs can induce EMT during tumor development (39). MMP-2 is one of the most distinctive members of this family and facilitates prostate cancer cell invasion. Previous studies have demonstrated that MMP-2 expression is mediated by ERK1/2 (26,27,47,52). In the present study, we found that SFN significantly decreased MMP-2 expression and activity. However, the SFN-triggered inhibition of MMP-2 was not reversed by PD98059. Thus, the downregulation of MMP-2 expression and activity modulated by SFN was not via the ERK1/2 signaling pathway. Following the above observations, the question concerning how SFN regulated MMP-2 expression and activity is raised. One possible mechanism leading to decreased MMP-2 may be that SFN activates or inactivates some transcription factors, such as nuclear factor-κB (NF-κB), SNaIl and ZEB (30,53). In addition, MMPs can also be regulated by their endogenous tissue inhibitors TIMPs, and the proteolytic activity of tumor cells depends on the balance between MMPs and TIMPs (47). Induction of TIMP-1/-2 by SFN has been proven in human bladder cancer cells (44). In this regard, we speculated that the upregulation of TIMP-1/-2 following the treatment of SFN may contribute to the inhibition of MMP-2 activity. More studies focusing on SFN-induced TIMP upregulation should therefore be conducted.

In conclusion, we have demonstrated that SFN suppressed invasion in human DU145 prostate cancer cells by modulating E-cadherin, CD44v6 and MMP-2, which linked to EMT (Fig. 8). Suppression of EMT was demonstrated to be an effective strategy against cancer metastasis (30,47). The results suggested that SFN is a prospective drug to prevent invasion of prostate cancer cells.

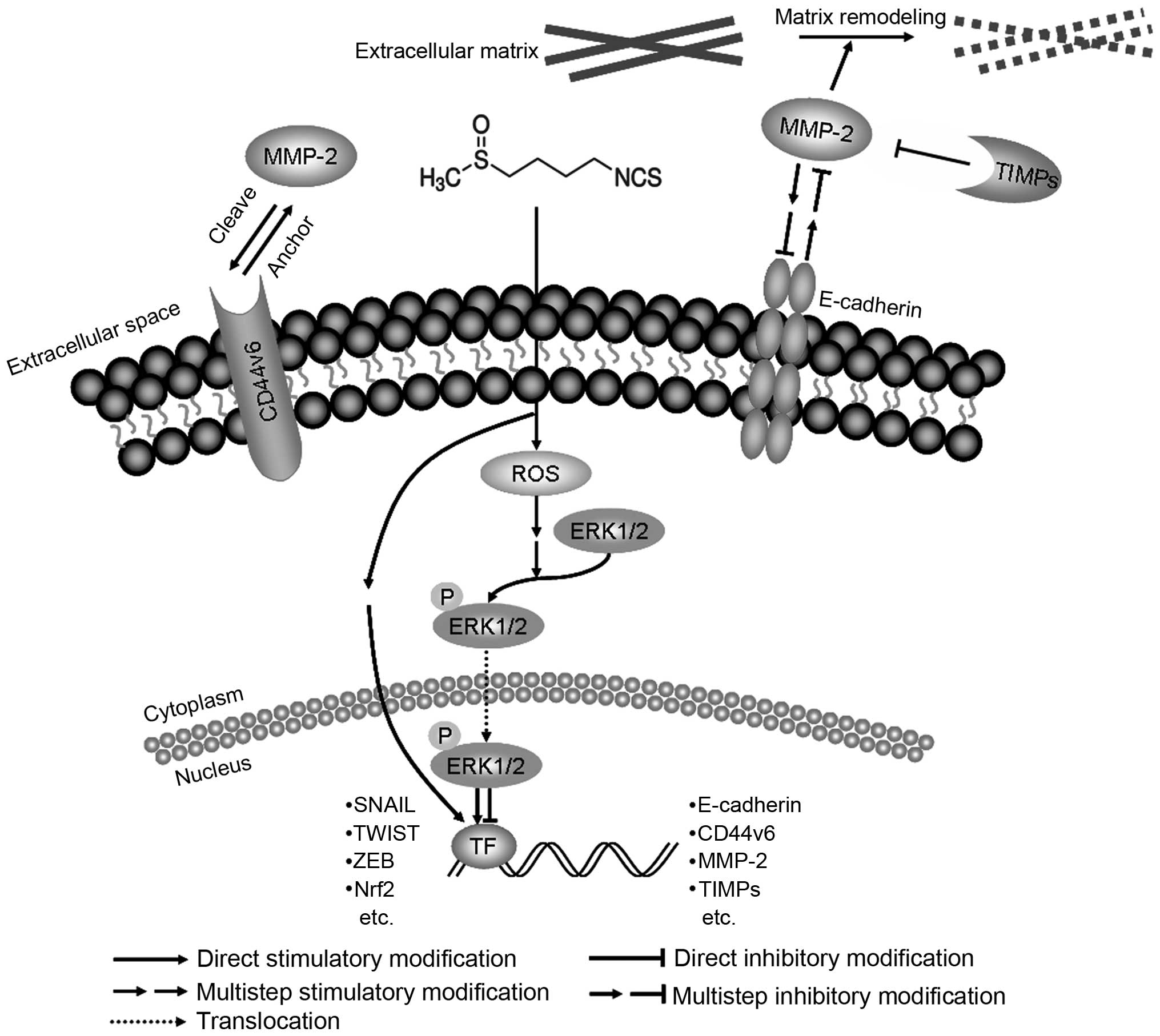

Figure 8 Assumed signaling map for SFN-triggered invasion inhibition. SFN, sulforaphane.

Acknowledgments

The present study was supported by the National Natural Science Foundation of China (grant no. 81272843) and the Beijing Natural Science Foundation (grant no. 7132019). The funders had no role in the study design, data collection and analysis, decision to publish or preparation of the manuscript.
