Low molecular weight heparin suppresses tissue factor-mediated cancer cell invasion and migration in vitro

Introduction

The association between increased tissue factor (TF) expression and aggressiveness of cancer is well established. The expression of TF has been correlated with the histological grade of tumours (1), and the up-regulation of TF expression in cancer cells occurs early during the disease (2). Furthermore, the ability of TF to induce cellular cancer cell proliferation, migration and invasion has been documented (3–7). Heparin treatment of cancer patients has been used as a means of controlling the risk of thrombotic episodes (8), and low molecular weight heparin (LMWH) has been reported to be suitable for the regulation of the procoagulant action of TF (9). There is data that incubation of cancer cell lines with LMWH results in the suppression of TF expression. Additionally, we previously reported a reduction in the levels of circulating TF in the plasma from pancreatic cancer patients receiving prophylactic LMWH (Daltaparin), compared to those not receiving the treatment (10). In this study, we further demonstrated the ability of LMWH to reduce the level of TF antigen and activity in cell lines from five separate tissues; BxPC-3 (pancreatic cancer), MDA-MB-231 (breast cancer), LoVo (colorectal cancer), SKOV-3 (ovarian cancer) and A375 (melanoma). Crucially, we report that the incubation of these cancer cell lines with LMWH (20–2,000 μg/ml) reduces cellular invasion and migration through a TF-mediated mechanism in vitro.

Materials and methods

Cell culture

The pancreatic cell line BxPC-3 (LGC-ATCC, Teddington, UK) was cultured in RPMI-1640 medium, the MDA-MB-231 breast cancer cell line was cultured in Leibovitz's L-15 medium, the LoVo colocarcinoma cell line was cultured in F-12K medium, the SKOV-3 ovarian cancer cell line was cultured in McCoy's 5a medium and the A375 malignant melanoma cell line was cultured in Dulbecco's modified Eagle's medium. All media contained 10% (v/v) foetal calf serum (FCS) and 1% (v/v) antibiotic/antimycotic solution. The expression and activity of TF in these cells was confirmed as below. Cells were supplemented with a range of LMWH concentrations (20–2,000 μg/ml) (Mr ∼3,000) (Sigma Chemical Company Ltd., Poole, UK) with the stock lyophilised reagent containing ∼60 U/mg of heparin activity. A set of BxPC-3 and MDA-MB-231 cells were also transfected with the pCMVXL5-TF plasmid (Origene/Cambridge Bioscience, Cambridge, UK) to overexpress full-length TF and were used alongside in the invasion assays. The transfection of the plasmid was carried out using Lipofectin (Invitrogen, Paisley, UK) according to the manufacturer's instructions and confirmed prior to experiments by measuring increased TF expression.

Measurement of TF antigen and activity

Sets of cells (106) were incubated with a range of LMWH concentrations (0–2,000 μg/ml) for 24 h. The cells were lysed in the presence of a protease inhibitor cocktail (Active Motif, Rixensart, Belgium), and 20 μg of the samples was analysed using a TF-antigen ELISA kit (Affinity Biologicals, Ancaster, Canada) as previously described (14). The TF concentrations were determined against a standard curve prepared simultaneously using recombinant TF (0–200 ng/ml) (American Diagnostica Inc., Stamford, USA). Cellular TF activities were quantified using a chromogenic assay based on measuring the activity of generated thrombin, as previously described (15).

Cell invasion and migration assays

The invasion assay relies on the ability of cells to digest through a thin layer of collagen-IV (1 mg/ml) and traverse a membrane to the lower chamber. Boyden chambers (8 μm pore size) (VWR International Ltd., Leicestershire, UK) were coated with collagen-IV (Sigma). Each cell type (105 in 20 μl of media) was in turn placed in the upper chamber and made up to 250 μl with media containing a range of LMWH concentrations (0–2,000 μg/ml). In addition, samples of BxPC-3 and MDA-MB-231 cells were transfected with pCMV-XL5-TF to overexpress TF and included alongside and treated with LMWH (2,000 μg/ml). Complete media (250 μl), containing 5 μg/ml of bFGF (Sigma), was placed in the lower chamber, and the cells were incubated at 37°C for 24 h. The cells on the upper side of the chamber were then scraped off and the membrane washed with PBS prior to staining with crystal violet solution (Active Motif) for 30 min. The cells were then washed three times with PBS, and 10 fields of view were counted manually. As a quantitative measurement, the cell-associated crystal violet was released from the cells by incubation with 1% (w/v) SDS (200 μl) for 1 h. The samples were diluted to 1 ml, and the absorption was measured at 595 nm. A standard curve was prepared using 0–2×105 cells, which were placed in a 24-well plate, permitted to adhere for 2.5 h and then quantified with crystal violet as above. The correlation between the number of cells and measured absorption in the standard curve was 0.983.

The migration assay employed relies on unhindered transition of cells towards a bFGF-impregnated collagen-I gel in a flat chamber. Collagen-I in acetic acid was diluted to 0.08% (w/v) and neutralised with 1 M NaOH/0.1 M sodium bicarbonate solution. bFGF (2 μg/ml) was then added to the gel, and 20-μl aliquots were placed at one side of 10-mm2 Cultureslides (BD Bioscience, Oxford, UK) and allowed to set, keeping the slide at an angle of 45° to prevent dispersion. After the gels had set into a strip, BxPC-3 cells (2×104 in 20 μl of media) were placed at the opposite side of the Cultureslides and incubated at 37°C, keeping the slide at an angle of 45° until the cells had adhered. The chambers were then supplemented with 200 μl of media containing a range of LMWH concentrations (0–2,000 μg/ml) and incubated at 37°C for 24 h. Following the incubation, the cells were washed with PBS, fixed with 3% (v/v) glutaraldehyde and stained with crystal violet; the distance that the cells migrated from the side where they were seeded out was measured in mm.

Statistical analysis

Unless otherwise stated, all values presented are the mean value from the number of experiments stated, together with the derived standard error of mean. Statistical analysis was carried out using the Statistical Package for the Social Sciences (SPSS Inc., Chicago, IL, USA). One-way ANOVA procedure was used for the analysis of variance of data. Pearson coefficient analysis was used to determine any correlation between the observations.

Results

Influence of LMWH on cellular TF expression and activity

Prior to the study, the expression of TF in all five cell lines was confirmed, and the cells were shown to exhibit a significant amount of TF mRNA, antigen and cell surface activity (Table IA and B). Incubation of the cells with LMWH (20, 200 or 2,000 μg/ml) for 24 h resulted in reduction in the detectable TF antigen and TF activity in all of the cell lines. Furthermore, there were strong correlations between the level of TF antigen and activity in these cells, indicating that the TF present on the cancer cells was active and was not encrypted (Table IC).

Table I. Analysis of the influence of LMWH on TF antigen expression and activity.

Table I.

Analysis of the influence of LMWH on TF antigen expression and activity.

A, TF antigen in ng per 106 cells
LMWH conc. (μg/ml)	BxPC-3	LoVo	MDA-MB-231	SKOV-3	A375
0	112.3±15.5	116.4±14.6	135.0±7.6	94.4±8.9	100.8±4.4
20	81.5±6.0a	96.6±14.6	75.1±8.9a	83.0±6.6	85.5±2.3
200	81.0±8.4a	85.0±17.4a	29.1±3.9a	12.6±8.2a	82.7±3.0
2000	80.2±3.8a	71.5±12.5a	27.2±3.6a	12.6±3.3a	58±6.8a

B, TF activity in equivalent units of TF per 106 cells
LMWH conc. (μg/ml)	BxPC-3	LoVo	MDA-MB-231	SKOV-3	A375
0	250.6±10	432±35	250±16	207±11	±221
20	213.8±12a	385±30	180±25a	205±9	±209
200	195.7±17a	258±13a	160±3a	120±8a	±182
2000	179.8±18a	235±28a	150±7a	100±1a	±143a

C, Correlation between TF antigen and TF activity
	BxPC-3	LoVo	MDA-MB-231	SKOV-3	A375
TF activity vs. TF antigen	0.896	0.949a	0.977a	0.986a	0.962a

[i] Sets of cells (10⁶) were incubated with a range of LMWH concentrations (0–2,000 μg/ml) for 24 h.

[ii] (A) The cells were lysed and analysed by ELISA and TF concentrations were determined from a standard curve prepared alongside. Data represent the average of four experiments measured in duplicates (^ap<0.05 vs. untreated sample).

[iii] (B) The cells were resuspended in PBS (2×10⁵ cells/20 μl) and TF activity was measured using a chromogenic assay. The absorption values were then converted into equivalent concentrations from a standard curve. Data represent the average of four experiments measured in duplicates (^ap<0.05 vs. untreated sample).

[iv] (C) Pearson correlation between cell TF antigen and TF activity was calculated using SPSS package (^ap<0.05).

Influence of LMWH on cell invasion

The rate of invasion of the cells (105) across a collagen-IV-coated membrane in the presence of LMWH (0–2,000 μg/ml) at 24 h (Fig. 1) was reduced over the range of LMWH tested in all cell lines. The greatest inhibition of invasion was observed in BxPC-3 and MDA-MB-231 cells in the presence of 2,000 μg/ml LMWH. Consequently, TF was overexpressed in these cell lines and the influence of LMWH on cell invasion was examined. The overexpression of TF in the BxPC-3 or MDA-MB-231 cells overcame the inhibitory effect of LMWH (2,000 μg/ml) on cell migration (Figs. 1A and 2).

Figure 1. Analysis of the influence of LMWH on cell invasion. Boyden chambers (8 μm) were coated with collagen-IV, and cells (105) were placed in the upper chambers and made up to 250 μl with media containing a range of LMWH concentrations (0–2,000 μg/ml). Media (250 μl) containing 5 μg/ml of bFGF were placed in the lower chambers and incubated at 37°C for 24 h. The number of cells was then analysed [BxPC-3 cells shown in (A) by staining the cells with crystal violet and counting the cells on the bottom of the membrane]. The crystal violet was then released with 1% (w/v) SDS and the absorption of the samples was measured at 595 nm and quantified against a standard curve at 595 nm (B). (A) Micrographs are representative of three experiments; (B) the absorption data from which they were averaged are presented (*p<0.05 vs. untreated sample).

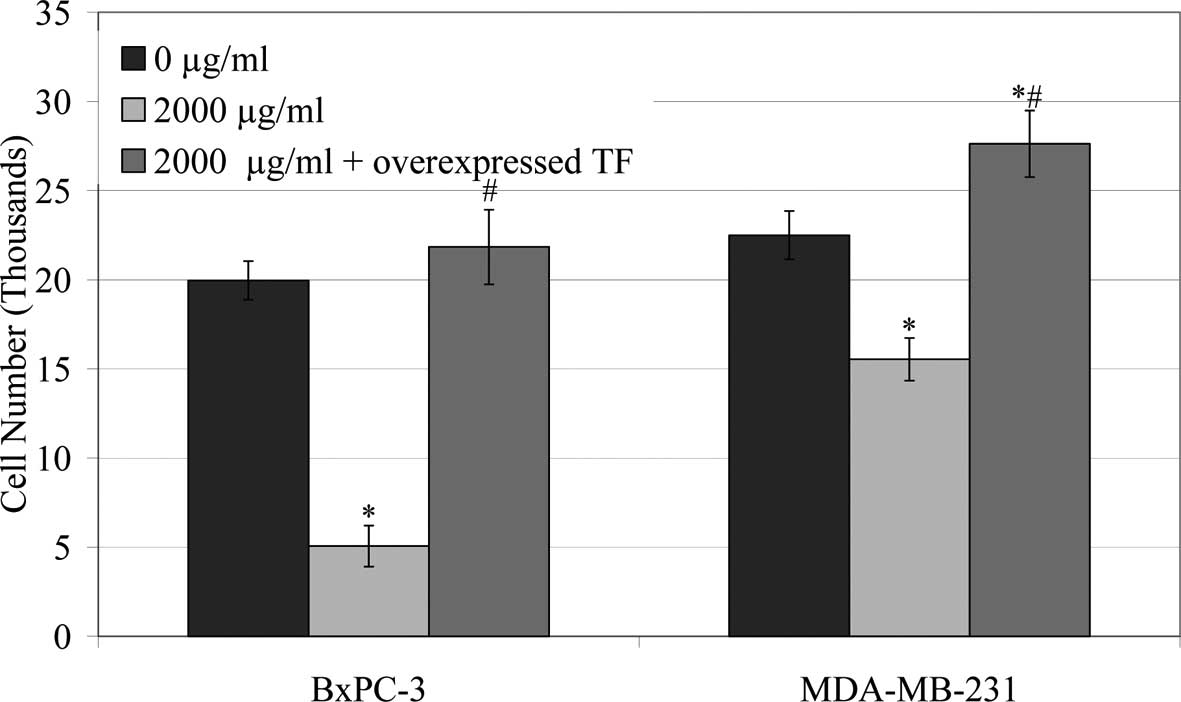

Figure 2. Influence of LMWH on cellular invasion in BxPC-3 and MDAMB-231 cells overexpressing TF. BxPC-3 and MDA-MB-231 cells were transfected with the pCMV-XL5-TF plasmid and permitted to overexpress TF for 48 h prior to assaying. Cells (105) were placed in the upper chambers of collagen IV-coated Boyden chambers and made up to 250 μl with media containing LMWH (2,000 μg/ml). Media (250 μl) containing 5 μg/ml of bFGF were placed in the lower chambers and incubated at 37°C for 24 h. The number of invading cells was then analysed as in Fig. 1 (*p<0.05 vs. respective untransfected/untreated sample; #p<0.05 vs. respective untransfected/LMWH treated sample).

Influence of LMWH on cell migration

The migration rate of cells towards a bFGF-impregnated collagen-I gel was reduced in a concentration-dependent manner in the presence of LMWH (0–2,000 μg/ml) (Fig. 3). There were strong correlations between both cell invasion and cell migration, with TF antigen and activity in all cells tested (Table II).

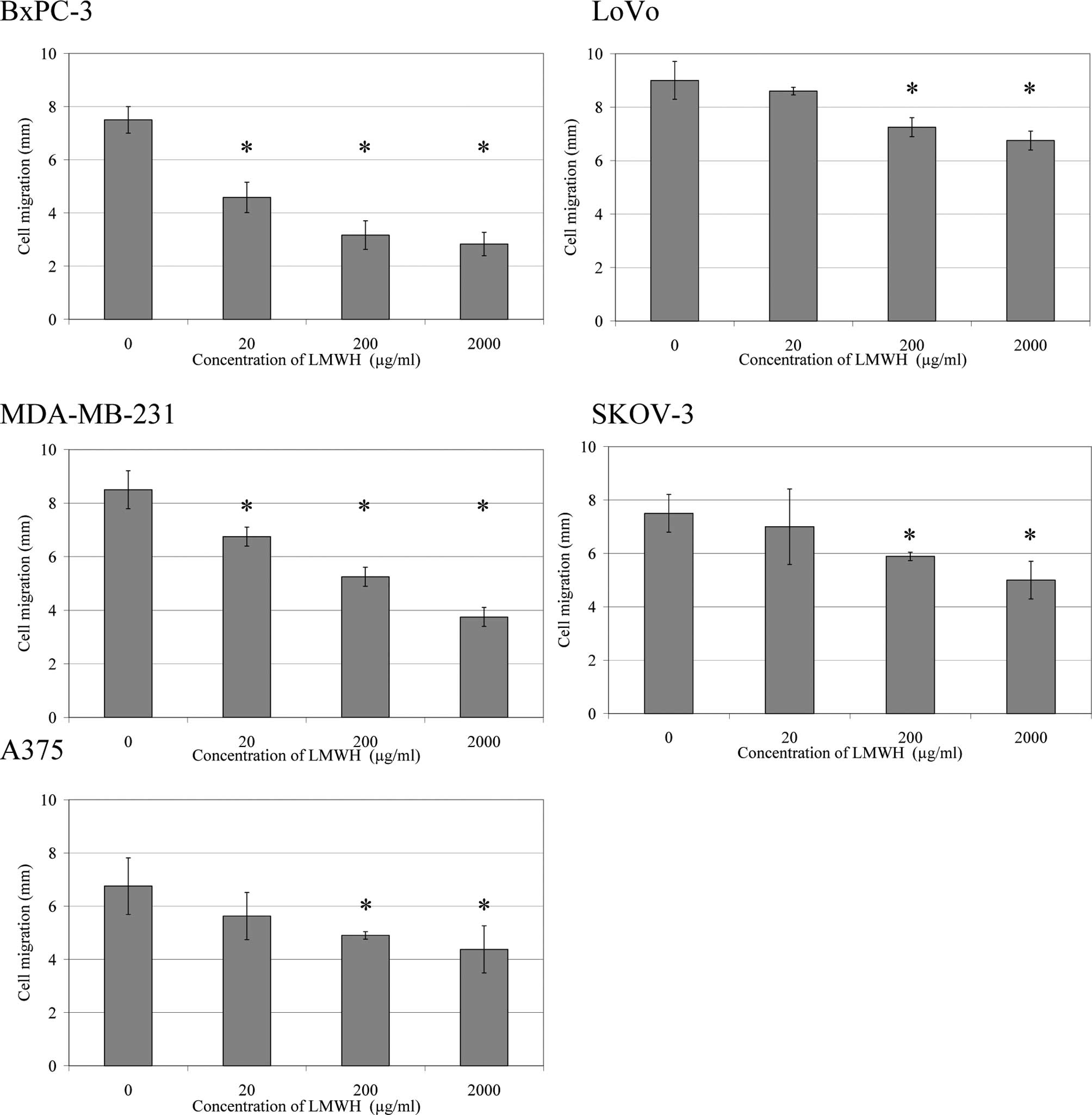

Figure 3. Analysis of the influence of treatment with LMWH on cell migration. Collagen-I gels [0.08% (w/v)] containing bFGF (2 μg/ml) were placed at one side of 10-mm2 Cultureslides, and the slides were kept at an angle of 45° until set. BxPC-3 cells (2×104 in 20 μl of media) were then added to the opposite side of the Cultureslides and kept at an angle of 45° until adhered. The chambers were then supplemented with 200 μl of media containing a range of LMWH concentrations (0–2,000 μg/ml) and incubated at 37°C for 24 h. Following the incubation, the cells were fixed with glutaraldehyde, stained with crystal violet and the migration of cells (mm) was measured. Data represent the average of six experiments (*p<0.05 vs. untreated sample).

Table II. Analysis of the correlation between cell invasion and cell migration with TF antigen and activity.

Table II.

Analysis of the correlation between cell invasion and cell migration with TF antigen and activity.

	BxPC-3	LoVo	MDA-MB-231	SKOV-3	A375
Cell invasion vs. TF antigen	0.990a	0.987	0.994a	0.994a	0.963
Cell invasion vs. TF activity	0.941	0.998a	0.999a	0.813	0.999a
Cell migration vs. TF antigen	0.942a	0.961a	0.941a	0.942	0.922
Cell migration vs. TF activity	0.987a	0.978a	0.931	0.969a	0.918

[i] The Pearson correlation between cell invasion or cell migration, with TF antigen or TF activity was calculated using SPSS package (^ap<0.05).

Discussion

The benefits of LMWH in the treatment of cancer patients have previously been reported (11,12). Moreover, the beneficial effects of anticoagulants in cancer patients do not appear to be due to any direct antitumour effects and have been attributed to the suppression of the release of circulating TF (9,13). Furthermore, data obtained from our previous investigation (Ettelaie et al, unpublished data) suggest that LMWH is capable of down-regulating the expression of TF mRNA through a mechanism which appears to involve the suppression of the transcriptional activity of NF-κB. Incubation of the cells with a range of concentrations of LMWH (20–2,000 μg/ml) resulted in a progressive decrease in cell invasion across a collagen-IV-coated membrane, particularly in BxPC-3 and MDA-MB-231 cells (Fig. 1). The reduction in cell invasion correlated with the decrease in TF antigen and activity following incubation of all cell lines with LMWH (Table II). Furthermore, the cellular invasiveness was restored in the BxPC-3 and MDA-MB-231 cell lines upon overexpression of TF in these cells, even after treatment with LMWH (2,000 μg/ml) (Figs. 1A and 2). Therefore, our data indicate that LMWH may suppress cancer cell invasion through an indirect mechanism, possibly by suppressing TF expression and activity. In support of this observation, the up-regulation of metalloproteases by TF has been documented (16,17). By contrast, the rate of cell migration decreased significantly, even in the presence of a low concentration of LMWH (20 μg/ml), which correlated strongly with reductions in TF antigen and activity (Table II). The ability of TF to induce chemotaxis is well established (3–7). Therefore, it may be suggested that the reduction in TF may contribute to lower rates of metastasis through reduction in cell mobility. In conclusion, the benefits of LMWH therapy may extend beyond the immediate inhibition of coagulation and sustained therapy may be advantageous in limiting the expression of TF which also diminishes the rate of tumour cell invasion.
