Introduction

Paraquat (PQ; 1,1-dimethyl-4,4-bipyridinium dichloride) is an effective herbicide that is widely used in agriculture and is highly toxic to humans (1). As of 2020, >150,000 individuals will succumb each year to accidental or intentional exposure to PQ (2). When PQ is absorbed into the body it can cause damage to the lungs, liver, kidneys, heart and other organs (3,4). The lungs have a strong dopamine uptake system to the extent that PQ, which is chemically similar to polyamines, accumulates mainly in the lungs (5). Therefore, when PQ is absorbed into the bloodstream, it directly causes damage to vascular endothelial cells. It has been demonstrated that PQ exposure induces glutathione redox cycle dysfunction and excessive endothelial albumin permeability in microvascular endothelial cells (6,7). Therefore, identification of therapeutic agents that can maintain the endothelial barrier and attenuate pulmonary microvascular permeability may reduce mortality and improve prognosis, which is of great significance for the clinical treatment of PQ-induced acute lung injury (ALI), but its protective mechanism needs further study. Endothelial cells, the basic building blocks of blood vessels, are involved in and regulate a variety of physiological processes, such as blood and component transport, immune responses and vascular tone (8,9). Multiple causes of endothelial dysfunction accelerate the progression of ALI/acute respiratory distress syndrome (ARDS) (10). It has been demonstrated that vascular endothelial injury can lead to damage to the alveolar-capillary barrier, which in turn leads to increased pulmonary microvascular permeability. The structures of tight junctions (TJs) or adherens junctions (AJs) maintain the integrity of the endothelial barrier (11,12). In ARDS, there is increased permeability of the pulmonary vasculature to circulating fluids, macromolecules and leukocytes due to a severe inflammatory response that disrupts the endothelial barrier, leading to alveolar filling and neutrophilic in-flow. This leads to the high mortality rate of ARDS (13-15).

Anthrahydroquinone-2,6-disulfonate (AH2QDS) is a reducing agent that has previously been demonstrated to bind specifically to PQ to reduce its levels in the body and thereby improve its survival (16-19). Additionally, it has been demonstrated that AH2QDS has a protective effect on the kidney in PQ poisoning (20), and this protective mechanism may be related to cellular oxidative stress, inflammatory injury, endoplasmic reticulum stress and reduced apoptosis; however, its mechanism of action in ALI has not been elucidated.

As an important signal transduction pathway in cells, the phosphatidylinositol-3-kinase (PI3K)/protein kinase B (AKT) signalling pathway is involved in a variety of biological processes, such as proliferation, differentiation and anti-inflammatory processes (21,22). It has been demonstrated that endothelial-type nitric oxide (NO) synthase (eNOS) is a key regulator of vascular growth and endothelial function, and can cause relevant biological effects in endothelial cells and airway epithelial cells, affecting the course of ALI/ARDS (23). NO can be generated by eNOS catalysis. The excessive generation of NO can induce the generation of oxygen free radicals, leading to tissue and organ damage, which serves an important role in the pathophysiology of PQ-intoxicated (24,25). To delve deeply into the critical signaling pathway that PQ induces ALI, Sprague-Dawley (SD) rats were utilized to establish a PQ poisoning model and these rats were carefully divided into control, PQ poisoning and AH2QDS treatment groups. Through detailed comparative analysis with reference genes, enrichment analysis at the gene expression level was conducted. The Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis revealed that the PI3K/AKT signaling pathway exhibited a particularly significant gene enrichment phenomenon in lung tissues after PQ poisoning and AH2QDS treatment, indicating that it may be the primary signaling pathway (19,26). Furthermore, according to current understanding, the specific mechanism of the PI3K/AKT/eNOS signaling pathway in the protective effect of AH2QDS against PQ-induced ALI remains unclear, which precisely constitutes the focus and core of our current study.

In the present study, PQ gavage in rats and PQ treatment of human pulmonary microvascular endothelial cells (HPMECs) were used as in vitro and in vivo models to validate the aforementioned hypothesis. The results suggested that AH2QDS could enhance the proliferation and migration of HPMECs. In addition, AH2QDS reduced inflammatory response and pulmonary microvascular permeability through inactivating the PI3K/AKT/eNOS pathway, thereby attenuating PQ-induced ALI.

Materials and methods

Establishment of the ALI model

A total of 48 male SD rats (7-8 weeks old) with an average weight of 180-200 g were obtained from Changsha Tianqin Biotechnology Co., Ltd., and the rats were kept at Hainan Medical University's Experimental Animal Center using specific pathogen-free standards, with free access to water and food. The animal room was maintained at 22-24°C with a 12/12-h light-dark cycle. All animal experiments are conducted in the Experimental Animal Center of Hainan Medical University. The rats were randomly divided into the following four groups (n=12) after 7 days of acclimation feeding: Control group, PQ group, PQ + AH2QDS group and AH2QDS group (20). To model the poisoning, rats were fasted for 10 h prior to poisoning with reference to previous experiments (19,20). The control group was given 5 ml saline by gavage. The PQ group was administered 200 mg/kg 20% PQ solution per rat by gavage (Henan Lane Pesticide Factory). The PQ + AH2QDS group was given 5 ml AH2QDS by gavage at the molar ratio of PQ:AH2QDS=1:1 (mol:mol) after 2 h of PQ intoxication, which was used to construct the treatment model. The AH2QDS group was administered 5 ml AH2QDS by gavage. To adhere to the principle of humane endpoints, the following measures were taken during the experiment to minimize the use of animals while ensuring the scientific rigor and humanity of the experiment. Firstly, sufficient practice was conducted and the modelling techniques were mastered beforehand to significantly reduce the failure rate of animal modelling, thus ensuring the reliability and validity of the experimental results. Secondly, during all experimental operations, it was ensured that animals were anesthetized to minimize potential pain and discomfort during the experiment. In addition, strict adherence to experimental ethical norms was implemented and clear humanitarian endpoints were formulated, tailored to the objectives of the present study. The specific standards were as follows: i) After 72 h of PQ intervention, as the scientific goals of the research were achieved, there was no need to continue the experiment; ii) when animals suffered from pain that was not caused by the experiment itself and was unexpected before the experiment starts, such as animals with inherent defects; iii) if it was anticipated before the experiment that the animals may suffer from pain, but the degree of pain exceeded expectations during the actual process, such as severe nasal and oral bleeding, severely abnormal behaviour, and other situations; and iv) if the pain of the animals was caused by the experiment itself, and this pain had been anticipated before the experiment started. Once any of the aforementioned standards were observed during the experiment, the animals were immediately euthanized to reduce their suffering. All animals in the present study were euthanized before the end of the experiment once these standards were met, ensuring that no animals would succumb due to any unnecessary reasons during the experimental process. The animal welfare was always upheld and the smooth progress of the experiment was ensured while maintaining the accuracy and reliability of the experimental results. The rats were euthanized using an overdose of sodium pentobarbital (>150 mg/kg) injected intraperitoneally following exposure to PQ for 72 h. When the cessation of the heartbeat and breathing of the rats was confirmed, and there were no reflexes, the death of the experimental animals was confirmed painlessly. Whole lung tissue was excised, dried and weighed. The left lung was placed in 10% paraformaldehyde and the right lung was placed in a cryopreservation tube and stored in a -80°C refrigerator.

The experimental procedures were performed in accordance with the Guide for the Care and Use of Laboratory Animals and approved by the Ethics Committee of the First Affiliated Hospital of Hainan Medical University [approval no. 2020 (Research) No. (97); Haikou, China].

Haematoxylin and eosin (H&E) staining

Rat lung tissue were paraffin-embedded in paraffin after being fixed in 10% formaldehyde at room temperature for 24 h and cut into 4-μm-thick sections. After successful staining with haematoxylin and eosin, pathological changes were detected under a light microscope. Lung tissue damage was quantified using a score of 0 (normal) to 3 (severe) that included alveolar wall oedema, haemorrhage, vascular congestion and polymorphonuclear leukocyte infiltration. As previously reported, lung injuries were categorized according to the sum of the scores (27). Lung injuries were graded on a scale of severity from 0 to 5 (0, normal; 1, mild or very small amount; 2, mild or small amount; 3, moderate or larger amount; 4, severe or large amount; and 5, very severe or extremely large amount).

Evans blue staining

To determine pulmonary vascular permeability, Evans blue solution (2 mg/kg) was injected into the tail vein of rats, and the rats were euthanized 1 h after the injection. Lung tissue was perfused with PBS until the lungs turned white, resected as a whole, dried and weighed, and the right lung was weighed in half. The lung tissue was homogenized with formamide and incubated at 60°C in a water bath protected from light for 24 h. After incubation, the suspension was centrifuged (4°C, 13,400 × g, 15 min) and 200 μl of the supernatant was added to a 96-well plate, and the absorbance at 620 nm was measured using an enzyme counter. The amount of Evans blue dye was calculated using the standard curve method.

Immunohistochemical staining

Immunohistochemical staining was used to detect the protein expression of vascular endothelial-cadherin (VE-cadherin), zonula occludens-1 (ZO-1) and CD31 in paraffin sections (4-μm-thick) of lung tissues. Paraffin sections were dewaxed (environmental-friendly dewaxing solution; cat. no. G1128; Wuhan Servicebio Technology Co., Ltd.), rehydrated using descending alcohol series for antigen repair and recovered; and the sections were placed in 3% BSA (cat. no. 36100ES25; Shanghai Yeasen Biotechnology Co., Ltd.) for 30 min at room temperature for blocking, and then incubated overnight at 4°C with VE-cadherin antibody (dilution, 1:50; cat. no. XF354429; Invitrogen; Thermo Fisher Scientific, Inc.), ZO-1 antibody (dilution, 1:1,000; cat. no. 21773-1-AP; Proteintech Group, Inc.) and CD31 antibody (dilution, 1:1,000; cat. no. GB113151; Wuhan Servicebio Technology Co., Ltd.), followed by incubation with HRP-labelled goat anti-rabbit IgG secondary antibody (dilution, 1:200; cat. no. GB23303; Wuhan Servicebio Technology Co., Ltd.) for 1 h at room temperature. Finally, the sections were stained with diaminobenzidine and counterstained with haematoxylin (room temperature, 3 min), and observed under a light microscope. Microscopic images were evaluated using ImageJ software (Fiji distribution of ImageJ; https://imagej.net/software/fiji/), and the area of VE-cadherin, ZO-1 and CD31-positive cells was quantified.

Cell culture and treatment

HPMECs were purchased from Otwo Biotechnology Development Co., Ltd. (cat. no. HTX2255) and cultured in DMEM (Gibco; Thermo Fisher Scientific, Inc.) containing 10% fetal bovine serum (Procell Life Science & Technology Co., Ltd.) with 5% CO2 at 37°C for proliferation. Cells were incubated with different concentrations of PQ pure (AccuStandard, Inc.) for 24, 48 and 72 h. The results are shown in Fig. S1A. Cell viability was reduced in a dose-dependent manner, and the reduction in cell viability was more pronounced after 72 h of treatment than at 48 and 24 h. Although the IC50 results ranged between 200 and 300 μM (Fig. 1C), the viability of the cells was <50% after 300 μM treatment. Therefore, a PQ dose of 200 μM was chosen for subsequent experiments to treat the cells for 72 h. HPMECs were then pre-treated with different concentrations of AH2QDS for 2, 6 and 12 h, and 200 μM AH2QDS had the least effect on cell viability (Fig. 2A and B). Therefore, 200 μM was selected as the concentration of AH2QDS for subsequent experiments.

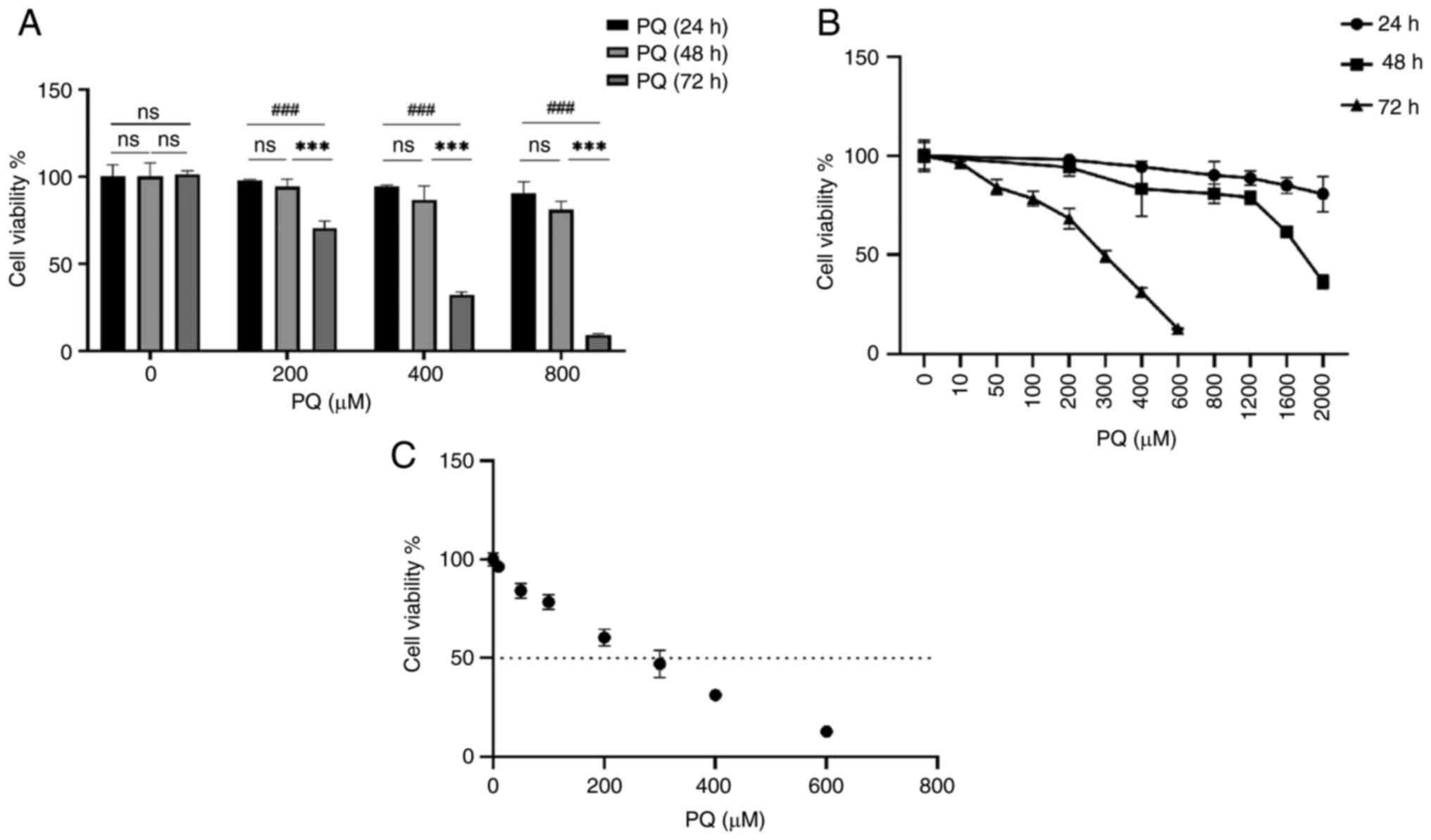

Figure 1 PQ induces dose- and time-dependent cytotoxicity in human pulmonary microvascular endothelial cells. (A) Cell viability was assessed after treating cells with 200, 400 and 800 μM for 24, 48 and 72 h. Data are expressed as the mean ± SEM of three independent experiments. Compared with the PQ (24 h) group, ###P<0.001. Compared with the PQ (48 h) group, ***P<0.001. The horizontal coordinate is concentration and the vertical coordinate is cell viability. (B) Line graph of cell viability after intervention of cells with PQ concentration gradient and time gradient. The horizontal coordinate is concentration and the vertical coordinate is cell viability. (C) IC50 for PQ concentrations. Data are expressed as the mean ± SEM of three independent experiments. PQ, paraquat; ns, not significant.

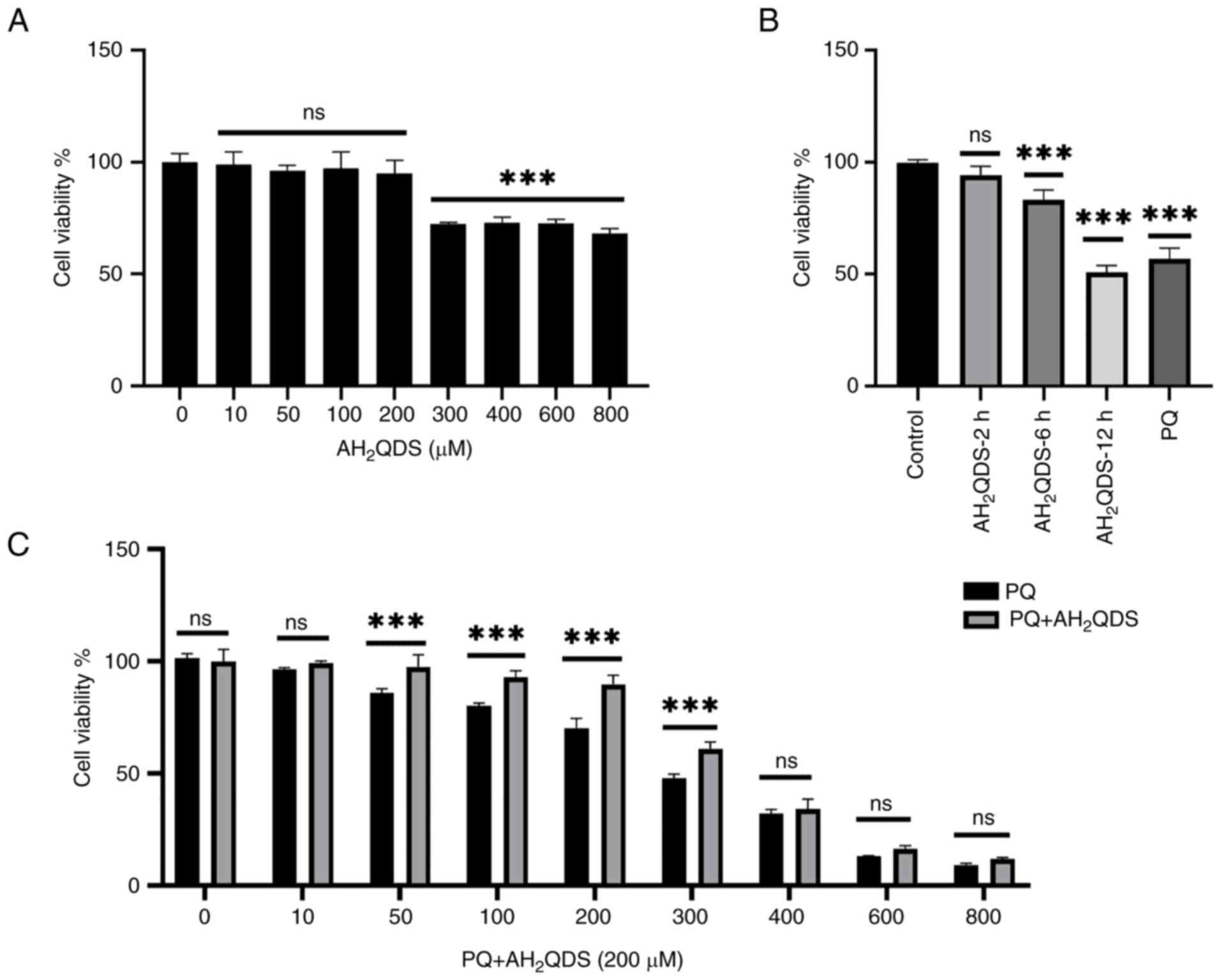

Figure 2 AH2QDS attenuates PQ-induced cytotoxicity. (A) Cell viability was assessed after treating cells with 0, 10, 50, 100, 200, 300, 400, 600 and 800 μM AH2QDS for 2 h. (B) Cell viability was assessed after treating the cells with 200 μM AH2QDS for 2, 6 and 12 h. (C) Cell viability was assessed after pretreatment with 200 μM for 2 h followed by treatment of cells with 0, 10, 50, 100, 200, 300, 400, 600, and 800 μM for 72 h. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control (0 μM PQ), ***P<0.001. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; not significant.

The cells were divided into the following four groups: Control group, HPMECs were treated with medium for 72 h; PQ group, cells were stimulated with PQ (200 μM) alone for 72 h; PQ + AH2QDS group, HPMECs were treated with AH2QDS (200 μM) for 2 h followed by stimulation of the cells with PQ (200 μM) for 72 h; and AH2QDS group, cells were stimulated with AH2QDS (200 μM) alone for 72 h.

Transwell cell migration assay

Experiments were performed using Transwell plates with a pore size of 5 μm to assess cell migration. Briefly, 3×104 HPMECs were inoculated into the upper part of the migration chamber containing serum-free medium. The lower chamber was filled with complete medium containing 20% fetal bovine serum as an attractant. After 72 h of incubation, migratory cells were stained with 0.1% crystal violet (Biosharp Life Sciences) at room temperature for 10 min and non-migratory cells in the upper chamber were removed with a cotton swab. Cells were then imaged and counted under a light microscope.

Cell viability assay

To assess PQ and AH2QDS cytotoxicity, HPMECs in the logarithmic growth phase were homogeneously inoculated into 96-well plates at a density of 3-5×103 per cell culture (100 μl/well). After waiting for 12 h of cell apposition, the cells were treated with different concentrations of PQ for 24, 48 and 72 h. The cells were pre-treated with different concentrations of AH2QDS for 2 h, and then treated with 200 μM PQ for 72 h. Cell Counting Kit-8 (CCK-8) solution (10 μl) was added to each well according to the manufacturer's instructions (cat. no. BS350C; Anhui Biosharp Technology Co., Ltd.). The 96-well plates were further incubated in a 37°C cell incubator for 1-2 h. Absorbance was measured at 450 nm using an enzyme marker.

Measurement of intracellular NO levels

Intracellular NO levels were measured using the fluorescent indicator diaminofluorescein-FM diacetate (DAF-FM DA; Shanghai Yeasen Biotechnology Co., Ltd.). Cells were inoculated at a density of 1×104 per dish and cultured in confocal dishes, and cells were pre-treated with AH2QDS for 2 h and stimulated with PQ (200 μM) for 72 h. After treatment, the medium was discarded and the cells were gently washed three times with PBS, and then the cells were treated with 200 μl DAF-FM DA (5 μM) for 30 min in a 37°C cell incubator. Cells were washed three times using PBS and kept in PBS throughout the experiment. Finally, the fluorescence intensity was measured using a laser confocal microscope with an excitation wavelength of 488 nm and an emission wavelength of 515 nm. The measured fluorescence values were analysed using ImageJ software to examine the changes in fluorescence intensity in each group.

Detection of intracellular reactive oxygen species (ROS) levels

The level of intracellular ROS was measured using the Reactive Oxygen Detection kit (cat. no. BL714A; Anhui Biosharp Technology Co., Ltd.). Cells were inoculated at a density of 1×104 per dish and cultured in confocal dishes, and cells were pre-treated with AH2QDS for 2 h and stimulated with PQ (200 μM) for 72 h. After treatment, the medium was discarded and the cells were gently washed three times with PBS. Subsequently, the cells were treated with 200 μl 2',7'-dichlorodihydrofluorescein diacetate (10 μM) for 30 min at 37°C in a cell culture incubator, and washed three times with PBS, and after that, the whole experiment was kept in serum-free medium. Finally, the fluorescence intensity was measured using a laser confocal microscope with an excitation wavelength of 488 nm and an emission wavelength of 515 nm. The measured fluorescence values were analysed using ImageJ software to examine the changes in fluorescence intensity in each group.

Detection of intracellular malondialdehyde (MDA) and superoxide dismutase (SOD) levels

After establishing the cell model, the cells were lysed with RIPA lysis solution and centrifuged at 13,400 g at 4°C for 10 min, and the supernatant was the desired sample. According to the instructions of the MDA (cat. no. BL1481A; Anhui Biosharp Technology Co., Ltd.) and SOD (cat. no. A001-3-2; Nanjing Jiancheng Bioengineering Institute) detection kits, the relevant reagents were added to the reaction, and finally the absorbance values were measured using an enzyme marker at 532 and 450 nm, respectively.

ELISA

TNF-α, IL-1β and IL-6 levels in the supernatants of HPMECs were detected using a human ELISA kit (Fine Biotech Co., Ltd.) according to the manufacturer's instructions.

Western blotting (WB)

The rat lung tissues and HPMECs were lysed with RIPA lysis buffer (cat. no. G2002-100ML; Wuhan Servicebio Technology Co., Ltd.) containing protease inhibitors (cat. no. BL612A; Anhui Biosharp Technology Co., Ltd.) to prepare protein samples. After quantification of the protein concentration using a BCA Protein Assay Kit (cat. no. 20201ES76; Shanghai Yeasen Biotechnology Co., Ltd.), protein samples (40 μg) were separated by 7.5-10% SDS-PAGE, and then transferred to PVDF transfer membranes. The membranes were blocked with 5% skimmed milk powder for 1 h at room temperature, and incubated with primary antibody at 4°C overnight. The following primary antibodies were used: VE-cadherin antibody (dilution, 1:250; cat. no. XF354429; Invitrogen; Thermo Fisher Scientific, Inc.), ZO-1 antibody (dilution, 1:10,000; cat. no. 21773-1-AP; Proteintech Group, Inc.), IL-6 antibody (dilution, 1:1,500; cat. no. bs-0782R; BIOSS), IL-1β antibody (dilution, 1:1,000; cat. no. bs-0812R; BIOSS), TNF-α antibody (dilution, 1:1,000; cat. no. BP4903; Wuhan Boster Biological Technology, Ltd.), PI3K antibody (dilution, 1:1,000; cat. no. 20584-1-AP; Proteintech Group, Inc.), phosphorylated (p-)PI3K antibody (dilution, 1:1,000; cat. no. PA5-104853; Invitrogen; Thermo Fisher Scientific, Inc.), AKT antibody (dilution, 1:1,000; cat. no. 10176-2-AP; Proteintech Group, Inc.), p-AKT antibody (dilution, 1:1,000; cat. no. 28731-1-AP; Proteintech Group, Inc.), eNOS antibody (dilution, 1:1,000; cat. no. 27120-1-AP; Proteintech Group, Inc.), β-actin antibody (dilution, 1:1,000; cat. no. GB11001-100; Wuhan Servicebio Technology Co., Ltd.) and GAPDH antibody (dilution, 1:1,000; cat. no. GB15004-100; Wuhan Servicebio Technology Co., Ltd.). The membranes were washed at least three times with TBS with 1% Tween-20 (TBST) and incubated with secondary antibody conjugated to HRP-labelled goat anti-rabbit IgG (dilution, 1:10,000; cat. no. BL003A; Anhui Biosharp Technology Co., Ltd.) at room temperature for 2 h. After three washes with TBST, images of the bands were captured (Super ECL Detection Reagent-ECL Ultra-Sensitive Chemiluminescent Detection Kit; cat. no. 36208ES60; Shanghai Yeasen Biotechnology Co., Ltd.) and analysed using a chemical gel imager (CHAMP CHEMI TOP 610 PLUS).

Statistical analysis

All data are presented as the mean ± standard error of the mean (SEM) of at least three independent experiments and were analysed using GraphPad Prism8 software (Dotmatics). One-way ANOVA followed by Tukey's multiple comparison test was used to determine differences between groups. P<0.05 was considered to indicate a statistically significant difference.

Results

PQ induces cytotoxicity in HPMECs

To study the cytotoxicity of PQ, cell viability was examined using a CCK-8 assay. Cells were treated with pure PQ (0, 200, 400, 800, 1,200, 1,600 and 2,000 μM) for 24 and 48 h, and cell viability was assessed at the end of culture. As shown in Fig. S1A and B, the inhibition of cell viability by PQ was dose- and time-dependent. After 24 h of PQ treatment, the cell viability was decreased following 1,600 μM PQ treatment (Fig. S1A), and after 48 h of PQ treatment, the cell viability was decreased following 1,200 μM PQ treatment, with a cell viability of >60% compared with the control in all cases (Fig. S1B). However, after 72 h of PQ treatment, the cell viability was significantly decreased following 200 μM PQ treatment, down to 59% compared with the control (Fig. S1C). When calculating the IC50 of PQ, the IC50 of PQ was 200-300 μM; however, at 300 μM, cell viability was <50%. Therefore, 200 μM was selected as the concentration of PQ for subsequent experiments (Fig. 1C). These results indicated that PQ induced cytotoxicity in HPMECs in a dose- and time-dependent manner (Fig. 1A and B).

AH2QDS attenuates PQ-induced cytotoxicity in HPMECs

To investigate the effect of AH2QDS on the proliferation of cells, cell viability was determined using the CCK-8 assay. Cells were treated with 0, 10, 50, 100, 200, 300, 400, 600 and 800 μM AH2QDS for 24 h. Cell viability was assessed at the end of the incubation. As demonstrated in Fig. 2A, after 2 h, 0, 10, 50, 100 and 200 μM AH2QDS treatment had no significant effect on cell viability (Fig. 2A); however, 300 μM AH2QDS and other concentrations of AH2QDS had an effect on cell viability. Furthermore, when treating the cells with 200 μM AH2QDS for 2, 6 and 12 h, cell viability was decreased after 6 h of treatment (Fig. 2B), which demonstrated the time- and dose-dependent effects of AH2QDS on the viability of HPMEVCs. To assess the protective effect of AH2QDS against PQ-induced cytotoxicity, cells were pre-treated with 200 μM AH2QDS for 2 h, and then cell viability was assessed after exposure to 200 μM PQ for 72 h. As revealed in Fig. 2C, pretreatment with AH2QDS significantly increased the PQ-induced decrease in cell viability (Fig. 2C), but this protective effect was markedly reduced by PQ at concentrations >300 μM.

AH2QDS inhibits the PQ-induced increase in oxidative stress and NO production in HPMECs

The intracellular oxidative stress level was assessed by detecting ROS, NO fluorescence intensity, MDA and SOD levels. As shown in Fig. 3A-D, the fluorescence intensity of ROS and NO in PQ-induced HPMECs was significantly higher compared with that in the control group, whereas the fluorescence intensity of ROS and NO in PQ-induced cells was decreased by pretreatment with AH2QDS, suggesting that AH2QDS could attenuate the production of ROS and NO in PQ-induced cells, thus reducing endothelial cell damage. As demonstrated in Fig. 3E and F, the levels of SOD and MDA were also examined in HPMECs. MDA levels were significantly higher and SOD levels were lower in the PQ group compared with the control group; while MDA levels were decreased and SOD levels were significantly higher in the PQ-induced cells after pretreatment with AH2QDS, which indicated that AH2QDS could attenuate the level of oxidative stress in the PQ-induced cells. As revealed in Fig. 3G-I, ELISA results revealed that AH2QDS significantly inhibited the expression of TNF-α, IL-6 and IL-1β in PQ-induced HPMECs.

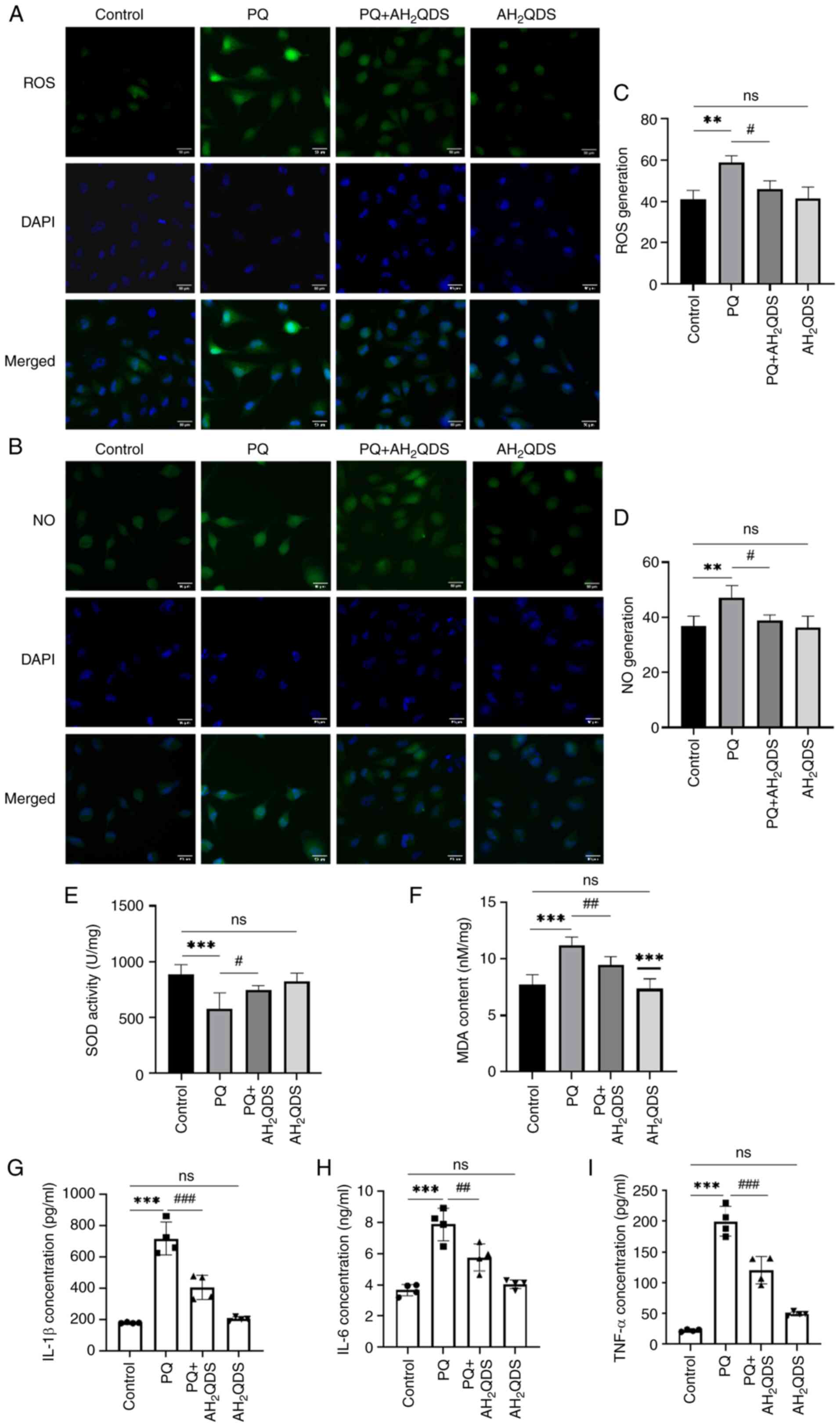

Figure 3 Effect of AH2QDS on PQ-induced cellular oxidative stress and NO production. (A) ROS fluorescence detection of ROS content in cells in each group. Scale bar, 50 μm. ROS: green, DAPI: blue. (B) NO fluorescence detection of NO content in cells in each group. Scale bar, 50 μm. NO: green, DAPI: blue. (C and D) Quantitative analysis of ROS and NO in each group. (E and F) SOD and MDA content in each group of human pulmonary microvascular endothelial cells. (G-I) ELISA was performed to detect the expression levels of TNF-α, IL-6 and IL-1β in each group. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control group, **P<0.01 and ***P<0.001. Compared with the PQ group, #P<0.05, ##P<0.01 and ###P<0.001. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; NO, nitric oxide; ROS, reactive oxygen species; SOD, superoxide dismutase; MDA, malondialdehyde; ns, not significant.

AH2QDS promotes the migration of HPMECs and maintains normal cellular connectivity

The migration of HPMECs was detected using a Transwell assay. As displayed in Fig. 4A and B, the number of migratory cells in the PQ group was significantly lower compared with that in the control group, while the number was significantly higher after AH2QDS treatment, which indicated that AH2QDS could promote the migration of HPMECs. The intracellular protein expression levels of VE-cadherin and ZO-1 were detected by WB, and the results are shown in Fig. 4C-E. The protein expression levels of VE-cadherin and ZO-1 in the PQ group were significantly reduced, and the protein expression levels were significantly increased after AH2QDS treatment, which demonstrated that AH2QDS could maintain the normal connectivity of HPMECs. The fluorescence intensity of ZO-1 protein was detected using an immunofluorescence assay. The results in Fig. 4F and G indicated that ZO-1 protein expression was significantly reduced in the PQ group compared with the control group, and some cells were deficient in protein expression. This result was reversed by AH2QDS treatment.

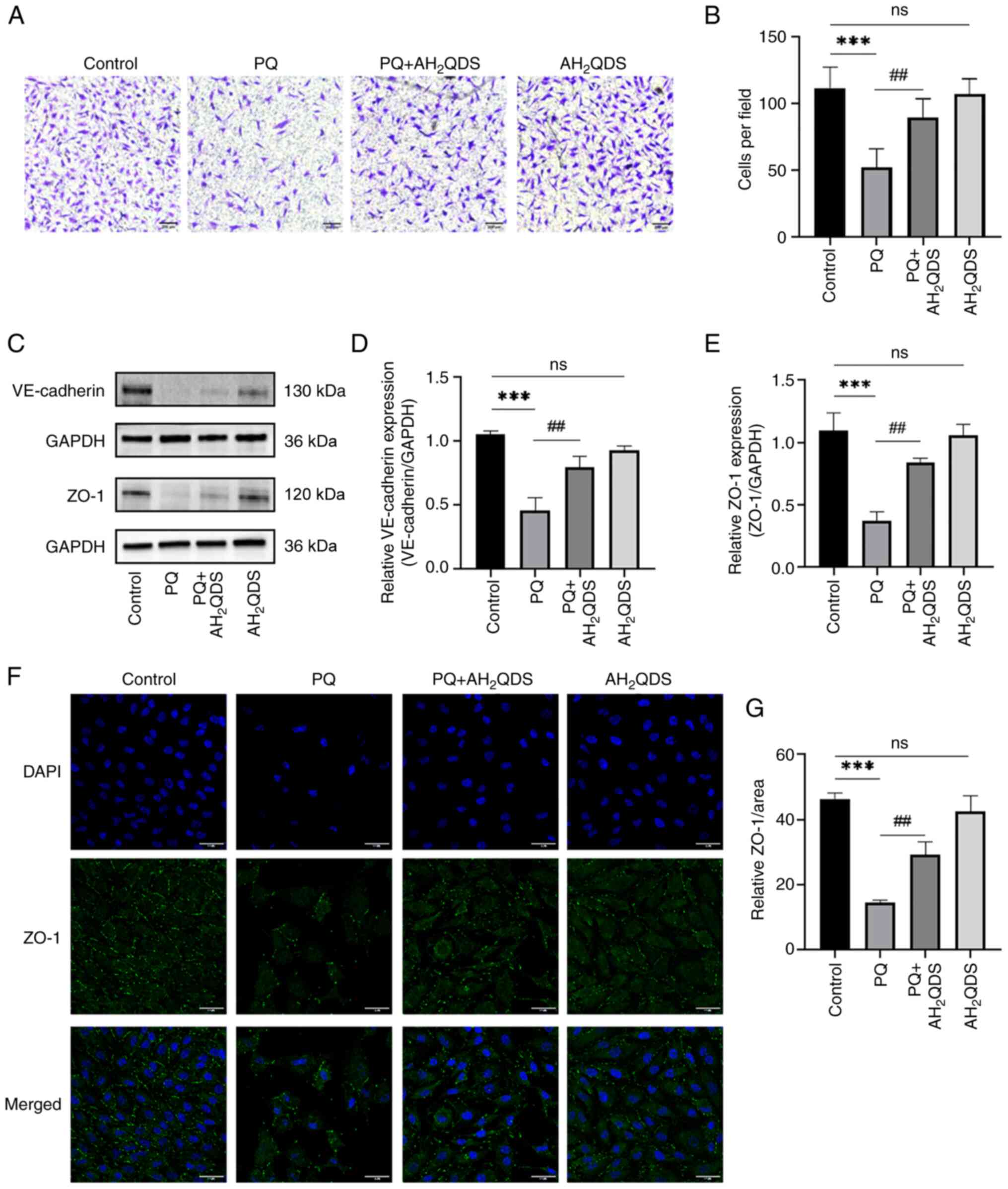

Figure 4 Effect of AH2QDS on cell migration and connexin. (A) Transwell assay was used to detect that AH2QDS ameliorates the PQ-induced reduction in cell migration. Scale bar, 200 μm. (B) Number of migrating cells in the field of view. (C-E) VE-cadherin protein and ZO-1 protein levels in each group of HPMECs were detected by western blotting. (F) Expression of ZO-1 protein in each group of HPMECs was measured by confocal microscopy. Scale bar, 50 μm. ZO-1: green, DAPI: blue. (G) ZO-1 protein-positive area in each group. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control group, ***P<0.001. Compared with the PQ group, ##P<0.01. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; VE-cadherin, vascular endothelial-cadherin; ZO-1, zonula occludens-1; HPMECs, human pulmonary microvascular endothelial cells; ns, not significant.

AH2QDS treatment attenuates PQ-induced ALI in rats

To assess the effect of AH2QDS on PQ-induced ALI in rats, a PQ-induced ALI rat model was constructed, and pathological changes in lung tissues were detected by H&E staining. As demonstrated in Fig. 5A, PQ treatment resulted in marked inflammatory infiltrates, destruction of alveolar and alveolar wall capillary structures, and pulmonary oedema in the lung tissues. These symptoms were markedly improved by AH2QDS treatment. Additionally, as shown in Fig. 5B, the lung injury score was significantly higher in the PQ group compared with the control group, whereas the lung injury score was reduced after AH2QDS treatment. To verify that AH2QDS could reduce inflammation in lung tissues, the protein expression levels of IL-6, IL-1β and TNF-α in lung tissues were detected using WB. As indicated in Fig. 5C-F, the protein expression levels of IL-6, IL-1β and TNF-α in the PQ group were significantly increased compared with those in the control group; however, the protein expression levels of IL-6, IL-1β and TNF-α were significantly decreased after AH2QDS treatment.

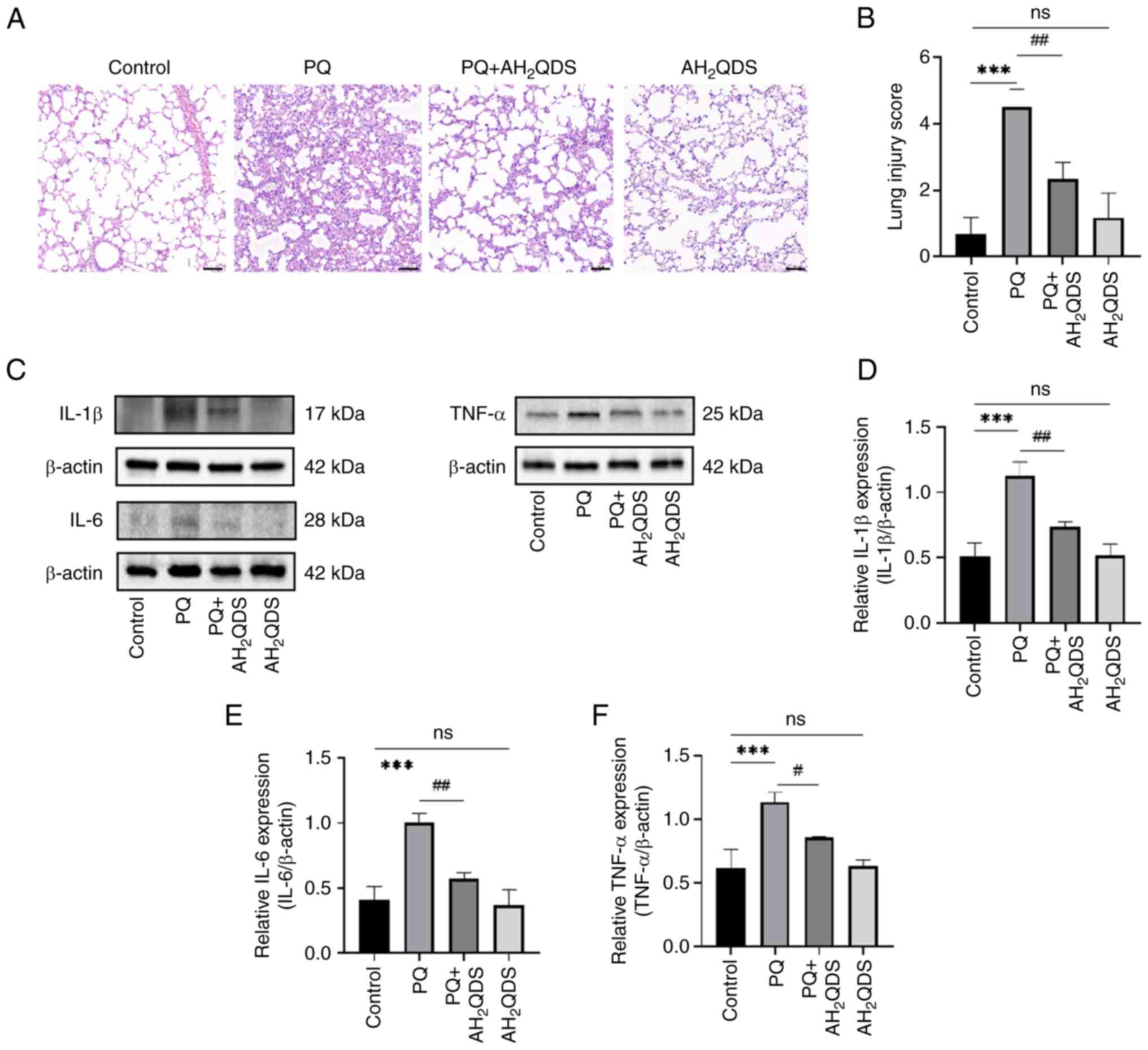

Figure 5 Effect of AH2QDS on PQ-induced acute lung injury in SD rats. (A and B) H&E staining of lung tissue and scoring for assessment of lung injury. Scale bar, 100 μm. (C-F) Detection of IL-6, IL-1β and TNF-α protein levels in various groups of lung tissue by western blotting. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control group, ***P<0.001. Compared with the PQ group, #P<0.05 and ##P<0.01. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; ns, not significant.

AH2QDS improves PQ-induced pulmonary vascular permeability and connexin expression in rats

To verify that AH2QDS reduces pulmonary oedema by decreasing pulmonary microvessel permeability and decreasing exudation, pulmonary microvessel permeability was examined using the Evans blue assay (Fig. 6A and B). The protein expression levels of VE-cadherin and ZO-1 in lung tissues were detected by WB, and the results were consistent with the results obtained in HPMECs (Fig. 6C-E). Immunohistochemical staining results showed that the protein expression levels of VE-cadherin, ZO-1 and CD31 were significantly reduced in lung tissues in rats; however, these were significantly increased in the AH2QDS treatment group (Fig. 6F-I).

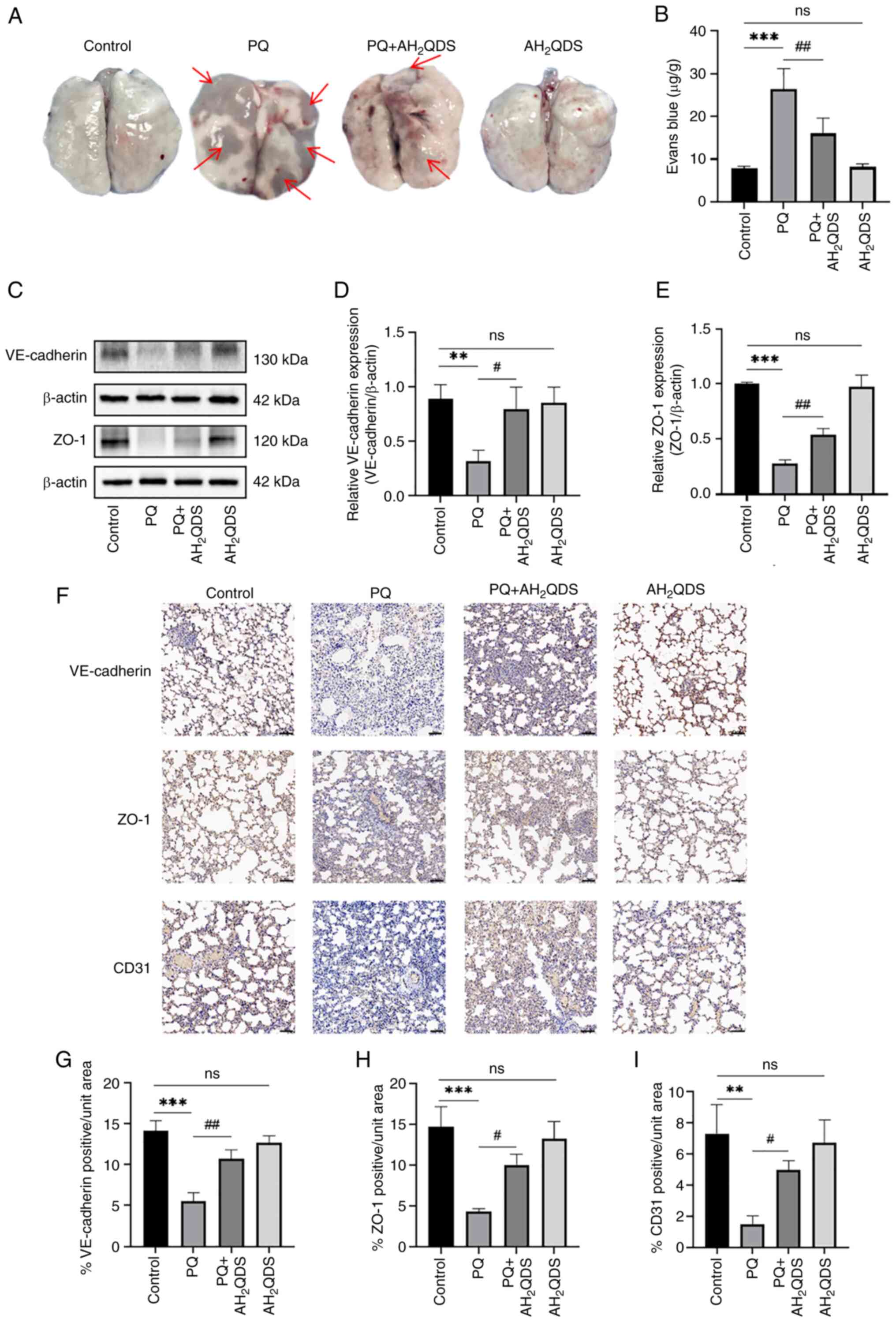

Figure 6 Effect of AH2QDS on pulmonary microvascular permeability and connexin expression. (A and B) EB-stained lung tissue and content of EB lung tissue for determination of lung permeability in rats. Red arrows point to EB exudation. (C-E) Western blotting detection of VE-cadherin and ZO-1 protein levels in lung tissues of different groups of rats. (F) Immunohistochemical staining of VE-cadherin, ZO-1 and CD31 proteins in different groups. Scale bar, 100 μm. (G-I) Immunohistochemical analysis of VE-cadherin, ZO-1 and CD31 protein expression content in different groups of rat lung tissues. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control group, **P<0.01 and ***P<0.001. Compared with the PQ group, #P<0.05 and ##P<0.01. AH2QDS, anthrahydroquinone-2,6-disulfonate; EB, Evans blue; ZO-1, zonula occludens-1; PQ, paraquat; ns, not significant.

AH2QDS ameliorates ALI by modulating the PI3K/AKT/eNOS signalling pathway

To further elucidate the underlying mechanisms of AH2QDS for the management of PQ-induced endothelial dysfunction, the present study concentrated on the PI3K/AKT/eNOS signalling pathway. As shown in Fig. 7A-C, in rat lung tissues, p-PI3K and p-Akt protein levels were elevated in the PQ group compared with the control group, whereas AH2QDS treatment reduced the protein levels of p-PI3K and p-Akt. As demonstrated in Fig. 7D and E, PQ increased eNOS expression in rat lung tissues, which was reversed to a certain extent by AH2QDS treatment. As revealed in Fig. 7F-H, the protein levels of p-PI3K and p-Akt were elevated in HPMECs, whereas AH2QDS treatment suppressed the protein levels of p-PI3K and p-Akt, which was consistent with the results of the in vitro model. The results demonstrated that the PI3K/AKT/eNOS signalling pathway was involved in the beneficial effect of AH2QDS on PQ-induced ALI. The mechanism of AH2QDS reducing PQ-induced pulmonary microvascular permeability is presented in Fig. 8.

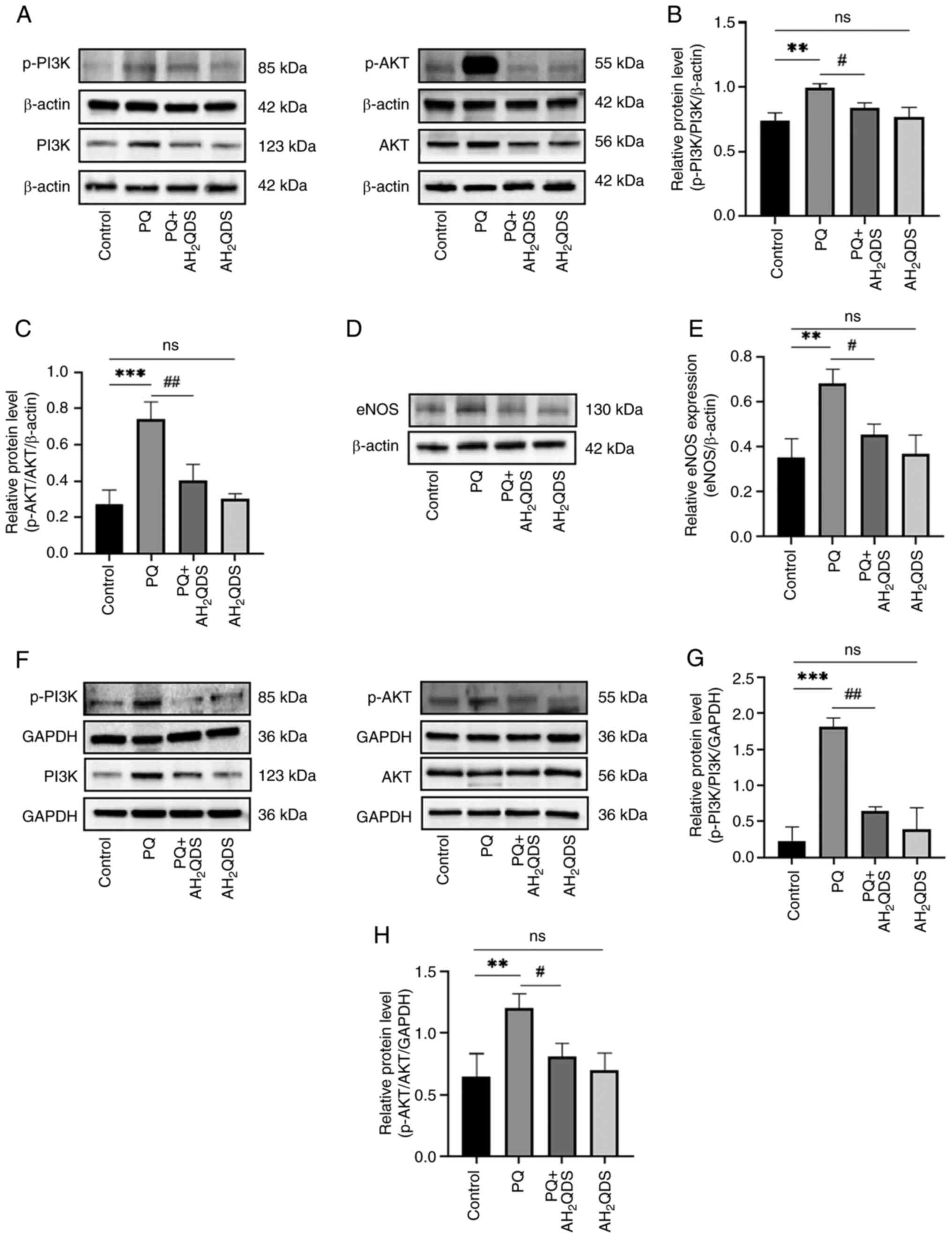

Figure 7 AH2QDS ameliorates PQ-induced acute lung injury by modulating the PI3K/AKT/eNOS signalling pathway. (A-C) Expression levels of p-PI3K, PI3K, p-Akt and AKT proteins in different groups of lung tissues were detected by WB. (D and E) Expression levels of eNOS proteins in different groups of lung tissues detected by WB. (F-H) Expression levels of p-PI3K, PI3K, p-Akt and AKT proteins in different groups of human pulmonary microvascular endothelial cells were detected by WB. Data are expressed as the mean ± SEM of three independent experiments. Compared with the control group, **P<0.01 and ***P<0.001. Compared with the PQ group, #P<0.05 and ##P<0.01. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; eNOS, eNOS, endothelial-type nitric oxide synthase; p-, phosphorylated; WB, western blotting; ns, not significant.

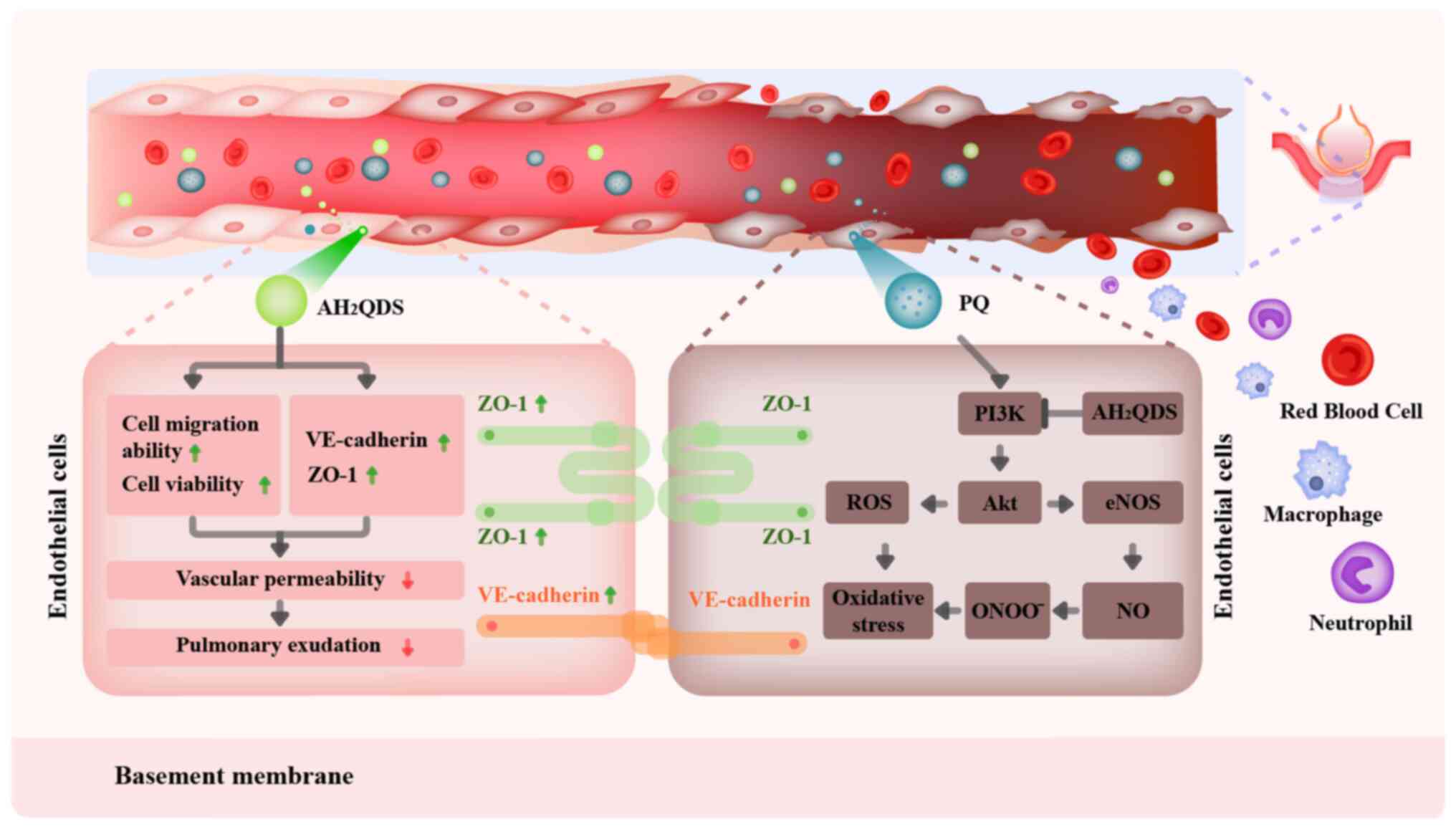

Figure 8 The mechanism of AH2QDS reducing PQ-induced pulmonary microvascular permeability. AH2QDS, anthrahydroquinone-2,6-disulfonate; PQ, paraquat; ZO-1, zonula occludens-1.

Discussion

PQ-induced ALI/ARDS is an acute and life-threatening lung disease with a mortality rate of 50-70% (4). Studies have demonstrated that PQ is absorbed into the bloodstream and first contacts endothelial cells, leading to oxidative stress, the inflammatory response and increased vascular permeability in pulmonary vascular endothelial cells. This induces pulmonary oedema, intra-alveolar haemorrhage and inflammatory cell infiltration (10,20,28,29), leading to death in severe cases (30,31). The mechanism by which PQ leads to endothelial cell dysfunction has not been clarified clinically and there is a lack of specific drugs and therapeutic options. Therefore, improving the dysfunction of the alveolar microvascular barrier could delay the progression of ALI/ARDS, and thus, improve patient survival (19). A recent study by the authors demonstrated that AH2QDS could specifically bind to PQ to reduce the PQ concentration in vivo and improve survival in SD rats (20). AH2QDS has both potent anti-inflammatory and antioxidant properties and is effective in the treatment of PQ-induced acute kidney injury. By constructing an in vitro model of PQ-induced ALI in SD rats and an in vitro model of PQ-induced endothelial dysfunction in HPMECs, the present study revealed that AH2QDS has potential efficacy in treating PQ-induced endothelial cell dysfunction. AH2QDS could attenuate PQ-induced ALI by inhibiting oxidative stress, inflammatory responses, promoting cell migration, enhancing cell viability and inhibiting the PI3K/AKT/eNOS signalling pathway to reduce pulmonary microvascular permeability.

Endothelial dysfunction is a major pathogenic mechanism in ALI/ARDS (12,32,33). The integrity of the endothelial barrier is disrupted after endothelial cells are damaged by multiple pathogenic factors. TJs, AJs and migration of endothelial cells maintain vascular permeability and reduce exudation and inflammatory infiltration. These functions maintain endothelial barrier function and integrity (34-36). In the present study, PQ-induced ALI tissues were markedly damaged with increased pulmonary microvascular permeability. This was manifested by pulmonary oedema, haemorrhage and inflammatory cell infiltration; lung injury assessment also verified that PQ-induced ALI induced excessive ROS production and inflammatory responses. VE-cadherin is the major TJ between endothelial cells. In ALI/ARDS, increased permeability following disruption of VE-cadherin and its adhesion complexes occurs with increased lung tissue leakage (37). ZO-1 is a key structure of AJs that directly affects lung barrier permeability. When ZO-1 expression is inhibited, lung permeability increases and lung barrier function is impaired (38). CD31 is a vascular endothelial cell-specific protein, and it has been similarly demonstrated that maintaining vascular integrity can effectively control the course of ALI/ARDS (39,40). The present study demonstrated that AH2QDS attenuated the PQ-induced inflammatory response and oxidative stress in HPMECs, upregulated the decrease in VE-cadherin and ZO-1 protein expression due to PQ, reduced pulmonary microvascular permeability, and ameliorated pulmonary oedema. Elevated levels of pro-inflammatory mediators in the lungs of patients with ALI impair endothelial cell functions, including proliferation and migration (41,42). These toxic effects lead to an imbalance between vasodilation and constriction, accelerating endothelial dysfunction, disrupting vascular homeostasis, and leading to an increase in vascular permeability, which further exacerbates interstitial lung leakage. This is consistent with the present experimental results, which demonstrated that AH2QDS could markedly improve endothelial cell migration, promote endothelial cell migration to the site of injury and maintain the integrity of the pulmonary microvasculature. These data suggested that AH2QDS ameliorated PQ-induced ALI by improving endothelial dysfunction.

In the present experiments, it was found that during the pre-treatment of HPMECs with AH2QDS, exceeding a certain concentration range can adversely affect the cell viability of HPMECs. Firstly, as a reducing agent, excessive use of AH2QDS may disrupt the balance of intracellular redox reactions, and this imbalance could potentially damage the cell structure and function. Secondly, as a newly emerging drug, the stability of AH2QDS and its mechanism of interaction with cells still require further exploration. Furthermore, different cell types may exhibit varying reactions to AH2QDS, indicating that the impact of AH2QDS on cell viability is a complex and multifaceted process. This discovery not only reveals the issues that need to be addressed in the application of AH2QDS as a reducing agent, but also underscores its potential in scientific research. Further studies and verifications are needed to gain a deeper understanding of the mechanism of action of AH2QDS, thereby providing new treatment strategies and potential drug candidates for medical fields such as ALI related to PQ.

In a previous study by the authors, KEGG pathway enrichment analysis revealed that the PI3K/AKT signalling pathway was the main signalling pathway for gene enrichment in lung tissues after PQ poisoning and AH2QDS treatment (26). The PI3K/AKT signalling pathway is important in the regulation of cell survival as well as repairing endothelial damage (43-47). To further investigate the mechanism by which AH2QDS alleviated PQ-induced ALI, the present study focused on the PI3K/AKT/eNOS signalling pathway. eNOS is an enzyme present in large quantities that is expressed in several cell types and promotes the production of NO. During inflammation, eNOS induces large amounts of NO production, generating peroxynitrite anion, which causes damage to the vascular endothelium and contributes to the development of inflammation (48,49). eNOS serves as a downstream target of AKT, and the PI3K/AKT/eNOS signalling pathway is also an important signalling pathway in cells. The present study demonstrated that the expression levels of PI3K, AKT and eNOS were elevated in lung tissues after PQ intoxication, whereas the expression levels of PI3K, AKT and eNOS were significantly lower in lung tissues treated with AH2QDS compared with the previous ones. The NO fluorescence intensity was significantly higher in HPMECs compared with the control group, and significantly decreased after AH2QDS treatment compared with the PQ group. It was demonstrated that AH2QDS could inhibit the PI3K/AKT/eNOS signalling pathway to attenuate the inflammatory response of endothelial cells. Therefore, the present study revealed that the mechanism by which AH2QDS alleviated endothelial dysfunction during PQ-induced ALI progression was related to the PI3K/Akt/eNOS signalling pathway.

In recent years, organoid technology has become an indispensable model system in lung research. Besides being cultivated from adult lung stem/progenitor cells, lung organoids can also be derived from fetal tissue or induced pluripotent stem cells, greatly filling the technological gap in modelling lung development in vitro (50). With continuous technological advancements, significant progress has been made in the characterization and refinement of organoid culture systems (51). The strategic implementation and continuous improvement of this technology will provide exciting new opportunities for us to deeply understand and explore new treatment methods, potentially leading to significant improvements in the health conditions of patients with lung diseases. With the continuous progress of organoid technology, its application exploration in the field of lung diseases is increasingly deepening. This 3D spatial structure constructed by different types of epithelial cells, with its significant advantages of requiring a small number of samples and short construction time, has effectively compensated for the shortcomings of traditional 2D cell culture and animal models. Therefore, the organoid model has become an efficient in vitro model for lung disease research, drug screening and disease prediction, while also meeting strict ethical requirements for experiments. It is involved in multiple fields such as non-specific inflammation, infection and lung tumors. Especially during the period of the novel coronavirus infection (COVID-19), numerous researchers have actively attempted to use organoid technology to construct research models for COVID-19 to explore effective treatment options, thereby reducing respiratory symptoms, risks of multi-organ failure and mortality (52,53). Additionally, some studies have demonstrated the great potential of organoid technology. For instance, Okabe et al (54) found that orthotopic fetal lung tissue direct injection into the lungs of mice showed a preventive effect against PQ-induced ALI. Meanwhile, Chen et al (55) discovered that luteolin enhances trans-epithelial sodium transport in 3D alveolar epithelial organoid, effectively reducing respiratory symptoms. These studies have fully proven that organoid technology has broad application prospects in the field of personalized medicine.

In reviewing the current research, some limitations were indeed identified. Firstly, while the present study focused on the protective effect of AH2QDS on PQ-induced lung microvascular endothelial dysfunction and its potential mechanism, it has not yet compared this finding with the latest progress in organoid research. As an emerging research tool, organoids have shown great potential in simulating human organ functions. Therefore, in future work, the authors will consider incorporating the application of AH2QDS in organoid models into the research scope to further validate its effect and mechanism. Secondly, although the present study revealed the beneficial effects of AH2QDS on lung tissue, it has not yet deeply identified the key genetic targets of its action. To fully understand the mechanism of AH2QDS, high-throughput research such as proteomics will be conducted to find and validate the key genes and proteins related to the function of AH2QDS. Additionally, the present study primarily focused on the protective effect of AH2QDS on rat lung tissue, but it is unclear whether other organs can also benefit from it. To broaden the application range of AH2QDS, its protective effects will be investigated on other organs (including the heart and brain) in subsequent studies and explore its potential mechanisms. In terms of signaling pathway research, while the present study paid attention to the importance of the PI3K/AKT signaling pathway in the action of AH2QDS, it lacks direct experimental evidence of intervention in this pathway. Therefore, PI3K inhibitors and activators will be introduced in subsequent studies to clarify the specific role of the PI3K/AKT signaling pathway in the action of AH2QDS. Finally, to more comprehensively evaluate the therapeutic effect of AH2QDS, comparative studies with other types of inhibitors will be conducted. Finally, to more comprehensively evaluate the therapeutic effect of AH2QDS in treating ALI, a series of comparative studies will be conducted. AH2QDS shall be compared with traditional Chinese medicines such as Yu-Ping-Feng-San and Xuanfei Baidu Formula to explore their differences in improving ALI symptoms and reducing inflammatory responses. Additionally, AH2QDS shall be also compared with emerging synthetic drugs, such as inhalable nanomaterials and extracellular vesicles, which have shown potential value in the treatment of ALI in recent years. Through these comparative studies, it is expected to gain a more comprehensive understanding of the advantages and limitations of AH2QDS in treating ALI, providing a more scientific basis for future clinical applications. In summary, a series of follow-up studies will be conducted to improve the mechanism of action and therapeutic effect evaluation of AH2QDS, aiming to provide new ideas and methods for the prevention and treatment of related diseases.

In conclusion, AH2QDS attenuated PQ-induced ALI by inhibiting the PI3K/Akt/eNOS signalling pathway, suppressing inflammatory responses and oxidative stress, promoting cell proliferation and migration, and reducing pulmonary vascular hyperpermeability. These findings suggested that AH2QDS may serve as an effective potential therapeutic agent for reversing ALI/ARDS outcomes caused by PQ.

Supplementary Data

Availability of data and materials

The data generated in the present study may be requested from the corresponding author.

Authors' contributions

NL, YY and JC conceived and designed the study. YH, JP and ZL provided administrative support. All authors provided study materials. YW and JZ collected and assembled the data. CX and HL analyzed the data. NL and YY wrote the manuscript. NL and YY confirm the authenticity of all the raw data. JL and XL were responsible for the critical review of the manuscript. All authors participated in interpretation of the data. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The present study was approved [approval no. 2020 (Research) No. (97)] by the Ethics Committee of the First Affiliated Hospital of Hainan Medical University (Haikou, China), and was carried out in accordance with the ethical standards of experimental animals.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Abbreviations:

Acknowledgements

Not applicable.

Funding

The present study was supported by the National Natural Science Foundation of China (grant no. 81960351) and the High-level Talent Fund of Hainan (grant no. 822RC835).
