Introduction

The synchronous occurrence (within 6 months) of two neoplasms is rarely observed, particularly acute myeloid leukemia (AML) coexisting with breast cancer (BC) [with actual incidence rates of <1% (1)], which is also associated with a poor prognosis [the survival time varies from 1 month to 3 years] (2–8). The prognosis of patients with synchronous occurrence of AML and BC is closely related to the risk factors of AML, and in terms of the long-term survival of the patient, the solution in such a case is based primarily on the treatment of AML, while placing the management of BC on hold (9). B-cell lymphoma-2 (BCL-2) expression is high not only in leukemia stem cells in AML, but also in solid tumors, including BC (10,11). Venetoclax is an oral selective BCL-2 inhibitor widely used in the treatment of hematological malignancies (12). In such cases, venetoclax inhibits BCL-2 to promote tumor cell apoptosis (13,14), to simultaneously combat the coexistence of AML and BC. The present study describes a rare case of AML coexisting with metastatic BC (mBC), focusing on the treatment options with the use of venetoclax combined with other regimens to achieve an effective response in both AML and BC.

Case report

In March 2021, a 50-year-old female patient presented to another hospital (The Affiliated Hospital of Hebei University, Baoding, China) with progressive fatigue that had persisted for 1 week. At 3 months prior to admission, the patient had noted a 20-mm mass in the left breast; however, the patient refused to be hospitalized. A complete blood count indicated a white blood cell count of 22×109/l (normal range, 3.5–9.5×109/l), a hemoglobin concentration of 92 g/l (normal range, 115–150 g/l) and a platelet count of 42×109/l (normal range, 125–300×109/l). A large number of monoblastic cells, which accounted for 66% of bone marrow nucleated cells, were observed in a bone marrow smear analysis (Fig. 1). Immunophenotyping revealed that the blast cells were CD34+, HLA-DR+, CD123+, CD38+, CD117+, CD7+, CD11b+, CD13+ and CD33+, which appeared with myeloid blasts (Fig. 2). The patient harbored a complex karyotype (CK), as well as a monosomal karyotype (MK) {44,XX,t(4;16)(q11;p13),-15,-17,add(17)(p11),-19,-21,+mar1,+mar2[5]/44,idem del(5)(q31)[2]/46,XX[9]} (Fig. 3), without any molecular and next-generation sequencing abnormalities. Based on the World Health Organization 2016 criteria (15), the patient was diagnosed with AML (AML-not otherwise specified; poor-risk). There was a mass in the upper outer quadrant of the left breast of the patient and a palpable left axillary node was present. An ultrasound revealed a 39×32-mm mass (3 o'clock); however, the patient did not consent to a biopsy of the breast mass. These aforementioned results were provided by a relative of the patient.

Figure 1. Morphology analysis of a bone marrow aspirate at the initial stage of diagnosis. Images collected at (A) ×100 and (B) ×1,000 magnification. Bone marrow smear (Giemsa staining) showed notably increasing myeloid blasts.

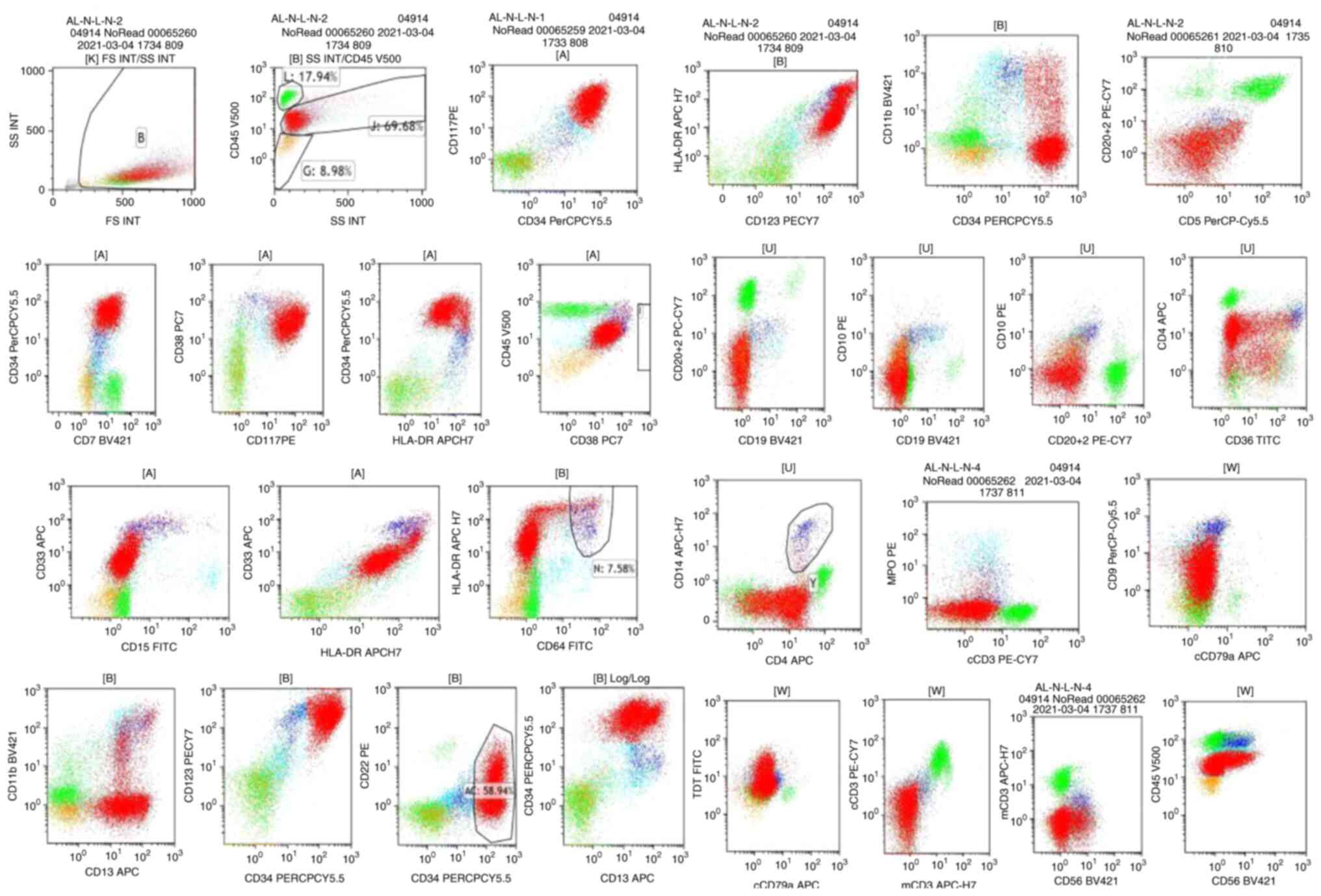

Figure 2. Flow cytometry analysis of a bone marrow aspirate. Bone marrow flow cytometry indicates an acute myeloid leukemia diagnosis: CD34+, HLA-DR+, CD123+, CD 38+, CD117+, CD7+, CD11b+, CD13+, CD33+, CD5−, CD3− and CD19−.

Figure 3. G-banded karyotype of bone marrow cells demonstrated a complex karyotype and a monosomal karyotype {44,XX,t(4:16)(q11;p13),-15,-17,add(17)(p11),-19,-21,+mar1,+mar2[5]/44,idem del(5)(q31)[2]/46,XX[9]}.

An induction chemotherapeutic regimen consisting of azacitidine (AZA; 75 mg/m2, days 1–7) + CAG [aclarubicin at 20 mg, days 4–7; cytarabine at 20 mg twice a day, days 4–14; granulocyte-colony stimulating factor (G-CSF) at 150 µg, days 4–14] was administered, and 21 days following the commencement of therapy, the patient did not achieve hypoplasia with 15% residual blasts. Moreover, the mass in the left breast exhibited rapid growth, which was confirmed by a subsequent ultrasound. The patient was then admitted to the Department of Hematology of The Second Hospital (Hebei Medical University, Shijiazhuang, China) for further diagnosis and therapy in April, 2021.

A subsequent peripheral blood cell count indicated a white blood cell count of 0.7×109/l, a hemoglobin concentration of 58 g/l and a platelet count of 53×109/l. To evaluate the effect of the previous cycle of combination chemotherapy, another bone marrow smear analysis was performed. For this, the bone marrow smear was naturally dried, then 2–3 drops of Wright-Giemsa staining solution was added to the entire specimen smear at room temperature for 1–2 min. An equal amount of 0.01 mol/l sodium dihydrogen phosphate solution was added to the slide, the slide was gently shaken to thoroughly mix with the Wright-Giemsa staining solution and the sample was incubated at room temperature for 3–5 min. The smear was washed with double distilled water, blotted dry and examined under a light microscope. The bone marrow smear analysis revealed 58% monoblastic cells (Fig. 4A-D) on the 28th day following the commencement of chemotherapy. According to the response criteria definitions for AML, the patient had not achieved complete remission (CR) or partial remission (PR). An ultrasound revealed that the mass in the left breast was 62×43-mm (3 o'clock) with ipsilateral axillary lymphadenopathy, and evidence of bone destruction was confirmed by a subsequent bone scan. An ultrasound-guided core needle biopsy confirmed a diagnosis of invasive carcinoma. For this, the puncture tissues were immersed in formaldehyde solution (4%) and fixed overnight at 4°C. The next day, the tissues were dehydrated and embedded in paraffin wax. The embedded material was then cut into 5-µm sections and the sections were dewaxed with xylene, rehydrated through an alcohol gradient (100, 95, 90, 80 and 70%; 5 min each), then washed with distilled water. H&E staining was performed at room temperature; slices were dyed with Harris hematoxylin for 3–8 min and washed with tap water, then incubated in eosin dye solution for 1–3 min and washed with tap water. The sections were successively immersed in 95% alcohol, anhydrous ethanol and xylene for 5 min each to dehydrate the sample. The sample was dried and sealed with neutral gum. Antigens were extracted at 100°C before immunohistochemical staining. Endogenous peroxidase activity was then blocked with 3% hydrogen peroxide, after washing with phosphate buffered saline (PBS) twice for 5 min each. The sample was incubated with normal goat serum [5%; Yeason Biotechnology (Shanghai) Co., Ltd.] at 37°C for 30 min to block non-specific background staining. Next, the sections were incubated with anti-estrogen receptor (ER; cat. no. ab16660; 0.5 µg/ml; Abcam), anti-progesterone receptor (cat. no. ab32085; 1 µg/ml; Abcam), anti-human epidermal growth factor receptor 2 (HER2; cat. no. ab16662; 1 µg/ml; Abcam) and anti-Ki-67 (cat. no. ab15580; 1 µg/ml; Abcam) at room temperature for 30 min. The slices were washed with PBS and incubated with secondary antibody (HRP marker; cat. no. ab6721; 1 µg/ml; Abcam) at room temperature for 20 min. DAB substrate staining was used. Representative images were collected using an optical microscope and analyzed with ImageJ (v.1.8.0; National Institutes of Health; http://imagej.net/software/imagej/) (16). Immunohistochemistry yielded positive results for the ER and progesterone receptor (80 and 10%, respectively), with a high Ki67 proliferation index (40%) and negative expression of HER2 (Fig. 5). Fluorescence in situ hybridization for the HER2 gene also yielded negative results using the PathVysion HER-2 DNA probe kit (Abbott) as previously described (17). These results indicated a luminal B-like (HER2−) type BC [staging T3N1M1, according to the American Joint Committee on Cancer TNM staging system (18)] diagnosis.

Figure 4. Morphology analysis of a bone marrow aspirate. Images collected before the second cycle of acute myeloid leukemia chemotherapy at (A) ×100 and (B-D) ×1,000 magnification. The bone marrow smear (Wright-Giemsa staining) showed notably increasing numbers of myeloid blasts. Images collected at (E) ×100 and (F-H) ×1,000 magnification on day 28 of the adjuvant chemotherapy treatment regimen. The bone marrow smear (Wright-Giemsa staining) showed the clearance of myeloid blasts (<5%).

Figure 5. Pathology of the mass of the left breast. (A) Needle biopsy (H&E staining) showing tumor cells infiltrating the normal breast structure. Tumor cells were (B) partially bright positive for the estrogen receptor, (C) 10% positive for progesterone receptors, (D) human epidermal growth factor receptor 2 negative and (E) had a high Ki67 proliferation index (40%) by immunohistochemistry.

After obtaining informed consent, the patient began an adjuvant chemotherapy treatment regimen with pegylated liposomal doxorubicin at 40 mg (day 1, per 21 days for two cycles) and albumin-bound paclitaxel at 200 mg (days 1 and 8, per 21 days for two cycles) to treat mBC. The patient was also treated with standard AZA at 75 mg/m2 subcutaneously for 7 days, in combination with oral venetoclax for AML (based on a pharmacokinetic test, from a dose of 100–200 mg/day, the dosing of which must be adjusted in the setting of the concomitant administration of the CYP3A4 inhibitor, voriconazole (200 mg twice daily for 4 weeks). Tumor lysis syndrome was monitored during a 3–5-day dose ramp-up of venetoclax, and G-CSF was also administered (300 µg per day for 3 weeks) to reduce the risk of infections and other cytopenia-related adverse events with the venetoclax-based combinations. When the white blood cell and platelet counts of the patient were normal (white blood cell count, 5.6×109/l; platelet count, 218×109/l) a bone marrow aspiration was performed on day 28 (Fig. 4E-H). With the clearance of blasts (<5%), the response to AML treatment was defined as CR with incomplete hematological recovery (CRi). The treatment response to BC was defined as PR as the mass in the left breast was notably smaller (only 20×20 mm in size). Due to economic reasons, the patient refused an allogeneic hematopoietic stem cell transplantation (allo-HSCT); thus, the patient was then treated with another cycle of chemotherapy without dose modifications. However, the patient succumbed due to septic shock from neutropenia following the third cycle of chemotherapy.

Discussion

Synchronous multiple cancer, defined as a cancer diagnosed simultaneously with another cancer or diagnosed within 6 months, is uncommon. The risk of a patient diagnosed with BC being diagnosed with a co-existing second cancer is 2–3% (1), and the synchronous occurrence of BC and AML is rare. The present study described the case of a female patient presenting with the co-existence of AML and BC. To date and to the best of our knowledge, only 11 cases of a synchronous occurrence of AML and BC have been described in the literature (Table I) (2–8). The simultaneous diagnosis of AML and BC is associated with an extremely poor prognosis with standard therapies. Specifically, only 4 such cases have reached a CR for AML (4,6–8) and only 1 patient who achieved a CR for both diseases was able to undergo an allo-HSCT (8), which is currently regarded as the only recommended therapeutic approach aimed at achieving long-term disease-free survival for patients with AML (9). Of the 11 patients identified in the literature, 4 cases survived for as little as 1 week to 1.5 months, 2 patients survived for >3 years and 9 patients succumbed due to AML. To date, the median overall survival (OS) time of patients with mBC is only ~37 months (19), and clinicians typically treat AML first before BC due to the poor outcomes associated with AML. In the present study, the authors aimed to select the appropriate therapeutic strategy for the two malignancies simultaneously.

Table I. Cases of synchronous occurrence of BC and AML in the literature.

Table I.

Cases of synchronous occurrence of BC and AML in the literature.

Author, year	Sex/Age, years	Interval	Diagnosis (type of BC)	Morphology of AML	Phenotype of AML	Genetics of AML	Karyotype of AML	Therapy for AML/BC	Response to AML/BC therapy	Outcome	(Refs.)
Softic, 1964	F/84	Simultaneous	NA	NA	NA	NA	NA	None	NA	Death	(2)
Carey et al, 1967 (case 1)	F/57	2 months	Ductal cell carcinoma	NA	NA	NA	NA	Cyclophosphamide of AML; radical mastectomy of BC	NR	Died during induction in 43 days.	(3)
Carey et al, 1967 (case 6)	F/55	Simultaneous	NA	M3	NA	NA	NA	None	NA	Death	(3)
Rosner et al, 1978 (case 18)	F/58	3 months	NA	NA	NA	NA	NA	6-mercaptopu-rine, methotrexate, vincristine, and prednisone of AML radical mastectomy of BC	CR for AML lasting 1 year	Died for diabetic coma and gastrointestinal hemorrhage in CR of AML	(4)
Rosner et al, 1978 (case 23)	F/59	6 months	NA	NA	NA	NA	NA	Combination chemotherapy of AML; radical mastectomy of BC	HR for AML	Death after HR	(4)
Ershler et al, 1982 (case 6)	F/64	6 months	NA	NA	NA	NA	45, banding not possible	Hydroxyurea for AML; cyclophosphamide for BC	PR for AML; NA for BC	Died after 3 months	(5)
Ershler et al, 1982 (case 8)	F/65	Simultaneous	NA	M4	NA	NA	NA	Cytarabine for AML; none for BC	NR for AML	Died during induction in 9 days	(5)
Mishra et al, 2004	F/38	1 month	Infiltrating duct carcinoma	M1	CD13+, CD33+, HLA-DR+, CD7+	p53 mutation in both AML and BC	46, XX	DA of AML; modified radical mastectomy of BC	CR for AML	Died following intracerebral hemorrhage	(6)
Hu et al, 2016	F/57	Simultaneous	Invasive	M4 ductal carcinoma	CD117+, CD34+, CD33+, CD11c+, CD13+	NPM1 and CEBPA mutations	47, XX, +11	DA/CAG for AML; tamoxifen/TEC/MRM for BC	NR/CR for AML; progressed/stable for BC	Alive in CR; stable BC	(7)
Ballotta et al, 2020	F/40	1 month	Invasive poorly differentiated ductal carcinoma	NA	CD34+, CD117+, HLA-DR+, CD4+, CD7+, CD13, TdT+, CD33+/−	Negative	46, XX	ICE/G-CLAC/HSCT of AML; right quadrantectomy/DC/tamoxifen of BC.	NR/CR of AML; CR of BC.	Alive in CR for AML and BC after allo-HSCT	(8)
Ballotta et al, 2020	NA	Simultaneous	NA	M2	CD34+/−, CD117+, CD7+, HLA-DR+, CD13+, CD33+	MLL self-fusion	46, XX	NA	RD	Died of AML after 13 months	(8)
Present case	F/50	3 months	Invasive carcinoma	M5	CD34+, HLA−DR+, CD123+, CD38+, CD117+, CD7+, CD11b+, CD13+, CD33+	Negative	Complex karyotype	AZA + CAG/VA for AML	NR/CRi for AML; PR for BC	Died of septic shock	-

[i] BC, breast cancer; AML, acute myeloid leukemia; N, not available; CR, complete remission; NR, not remission; HR, hematological remission; PR, partial remission; CRi, complete remission with incomplete hematological recovery; RD, refractory disease; HSCT, hematopoietic stem cell transplantation; DA, daunorubicin and cytosine arabinoside; G-CSF, granulocyte-colony stimulating factor; CAG, arabinoside cytarabine 25 mg (days 1–14), aclarubicin 10 mg (days 1–8) and G-CSF 300 µg (days 1–14); ICE, idarubicin 10 mg/m² (days 1, 3 and 5), cytarabine 100 mg/m² (days 1–7) and etoposide 100 mg/m² (days 1–5); G-CLAC, clofarabine 30 mg/m² (days 1–5), cytarabine 2,000 mg/m² (days 1–5) and G-CSF until hemopoietic recovery; AZA, azacitidine; VA, azacitidine 75 mg/m² (days 1–7) and venetolax (100 mg days 1–7 and 200 mg days 8–28); DC, doxorubicin 60 mg/m²/day and cyclophosphamide 600 mg/m²/day; TEC, paclitaxel 77 mg/m², epirubicin 77 mg/m², cyclophosphamide 0.6 g/m², on day 1, every 3 weeks; MRM, modified radical mastectomy; MLL, myeloid/lymphoid leukemia.

Patients with ER+ mBC who are HER2− and who are not suitable to receive treatments such as quadrantectomy, local radiotherapy and HER2 inhibitors, are recommended classical endocrine therapy with or without molecular therapies (20–22). However, acquired resistance to hormonal therapies occurs in 30–50% of cases, which has been confirmed to occur via the PI3K-AKT-mTOR, cyclin D1-CDK4/6-retinoblastoma protein, BCL-2-p53-MDM2, ER1 and other cell-signaling pathways (23). Molecular-based therapies, including CDK4/6 inhibitors (such as palbociclib/ribociclib/abemaciclib) (24), an mTORC1 inhibitor (everolimus) (25), an α isoform-specific PI3K inhibitor (alpelisib) (26) and a BCL-2 inhibitor (venetoclax) (27) have been demonstrated to have potential efficacy as adjuvant therapies in patients with advanced-stage BC. Moreover, regardless of the molecular subtype, chemotherapy still represents a fundamental option for patients with mBC. In the present study, according to the pathological results, the patient accepted adjuvant chemotherapy, combining pegylated liposomal doxorubicin with albumin-bound paclitaxel. Furthermore, BCL-2 inhibitor molecular therapy was administered to the patient for BC and AML simultaneously.

BCL-2 expression is high in the leukemia stem cells of AML (28). Venetoclax, an oral selective BCL-2 inhibitor first approved for the treatment of chronic lymphocytic leukemia, can lead to the rapid initiation of AML cell apoptosis (13). Despite the modest efficacy of single-agent treatment with either venetoclax or hypomethylating agents (HMAs) (29), the rationale for combining venetoclax with HMAs was provided by the potential of BCL-2 inhibitors to sensitize AML cells to HMAs (30). In two pivotal clinical trials, the rates of CR plus CRi were 54 and 67% in patients treated with venetoclax plus low-dose cytarabine (LDAC) or HMAs, and the median OS time was 10.4 and 17.5 months, respectively (31,32). Due to these results, the U.S. Food and Drug Administration approved the use of venetoclax in combination with LDAC or HMAs for older or unfit patients newly diagnosed with AML and for patients who have relapsed/refractory AML.

The overall frequency of a CK in AML, the most unfavorable prognostic factor in AML with a well-known poor outcome, has been shown to occur in 10–14% of patients in prior studies and has been reported to occur in up to 23% of older patients with AML (33,34). Patients with AML with a CK are generally resistant to conventional induction and consolidation and only 10–40% achieve CR and tend to relapse in a median time of 6–8 months (35). The MK, another adverse cytogenetic aberration, appears to be a worse prognostic predictor of a poor outcome, with a 4-year OS rate of 4% compared with 21% in patients with CK (36). Patients with AML presenting with the co-existence of MK and CK achieve an overall remission rate of 28% following treatment with intensive chemotherapy (37). A few studies to date have indicated that combination treatment of venetoclax with HMAs or mono-regimen CPX 351, a liposomal formulation of cytarabine and daunorubicin, is associated with an optimal trend for the OS of patients (38,39). The patient described in the present study diagnosed with adverse AML with CK and MK, first failed to achieve remission with one regimen of AZA + CAG; however, the patient achieved an effective response of CRi following the adjustment of a combination of venetoclax with AZA.

The increased expression of the anti-apoptotic protein, BCL-2, has been reported in a number of different solid tumor histotypes and is also linked to resistance to chemotherapies, including in renal, breast and thyroid carcinoma, but not in AML, mature B-cell malignancies and lymphoid malignancies; thus, studies mainly focus on BCL-2 inhibitor application in solid tumors (10,11). The expression of BCL-2 in BC is the second highest in a wide range of tumor histotypes, according to The Human Protein Atlas database (https://www.proteinatlas.org/). Due to the upregulation of BCL-2 in BC, particularly in 80% of primary ER+ BC cases, the molecular mechanisms of venetoclax, including BC cell proliferation and growth inhibition via the promotion of apoptosis, cell cycle arrest and autophagy, have been confirmed via in vitro studies (14,40). Preclinical data on the combination of venetoclax with tamoxifen to increase the apoptosis of patient-derived xenograft models of ER+ BC have led to a phase Ib dose-escalation and expansion study of venetoclax combined with endocrine therapy in mBC, which is both ER− and BCL-2+ (27,41). In the first clinical study, 15 patients were treated orally with daily tamoxifen (20 mg) and venetoclax (200–800 mg) in the escalation phase, and in the expansion phase, 24 patients received 800 mg venetoclax as the recommended phase II dose (RP2D) for neither dose-limiting toxicities nor high-grade adverse events were observed. For treatment at the RP2D, all 24 patients had measurable disease with a clinical benefit rate of 75%; the objective response rate was 54% (1 CR and 12 PR), stable disease was 21% (5 patients) and the median progression-free survival was not reached at the time of data analysis (>51 weeks). According to the marked efficacy and acceptable safety of the combined use of venetoclax with endocrine therapy, a randomized phase II trial of venetoclax + fulvestrant versus fulvestrant in ER+, HER2− locally advanced or mBC is ongoing in five countries, enrolling 100 patients (42). These findings support the use of venetoclax both as a single agent and in combination strategies for the further investigation of patients with BCL-2+ tumors.

To the best of our knowledge, the case described in the present study is the only one characterized in the literature by a severe prognosis of AML with CK and MK that achieved CRi of AML and PR of BC. Venetolax was used as a therapeutic agent for AML; however, according to the criteria response of BC in the patient described in the present study and in the reported literature (27,41), it is conceivable that venetolax plays an effective role in the treatment of the two malignancies simultaneously.

In conclusion, it is essential to determine appropriate treatment measures for patients with co-existing AML and BC in the era of novel agents. Following the notable results with the application of venatoclax in AML and BC, respectively, this oral selective BCL-2 inhibitor may be used for the treatment of synchronous cancer (such as AML plus BC) to achieve efficacy and safety. However, further studies with a greater number of cases are required to clarify and optimize the therapeutic potential and use of treatment regimens containing venatoclax.

Acknowledgements

Not applicable.

Funding

Funding: No funding was received.

Availability of data and materials

The data generated in the present study may be requested from the corresponding author.

Authors' contributions

LX was responsible for clinical data collection, interpretation of the results, drafting the manuscript and providing final approval of the version to be published. SQ participated in the design of the study and analyzed patient data. TT and YL obtained medical images of the bone marrow smear, and JZ and XG gave advice on the treatment of the patient. JZ and XG confirm the authenticity of all the raw data. All authors have read and approved the final version of the manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Written informed consent for publication of the case report, including the clinical details and images was provided by the patient's relative.

Competing interests

The authors declare that they have no competing interests.
