Introduction

Conventional treatment options for the triple-negative breast cancer (TNBC) subtype include anthracycline/taxol/platinum-based conventional cytotoxic therapy or phosphoinositol-3-kinase (PI3K), AKT, molecular target of rapamycin (mTOR) and poly(ADP-ribose) polymerase (PARP) selective small molecule based targeted therapy (1-3). These long-term treatment options are frequently associated with systemic toxicity and acquired drug resistance, leading to the progression of therapy-resistant disease (4). At present, no drug is yet available for the secondary prevention of TNBC, at least to the best of our knowledge. These therapeutic limitations emphasize the need for the identification of non-toxic efficacious agents as testable alternatives against TNBC.

Natural products, including dietary and medicinal phytochemicals, botanicals and nutritional herbs have documented preventative/therapeutic/efficacy in complementary and alternative medicine against breast cancer subtypes (5,6). These naturally occurring compounds may represent effective dietary supplements for the prevention/therapy of organ site cancers. Several mechanistically distinct Chinese nutritional herbs have been demonstrated to exert growth inhibitory effects in cellular models for the estrogen receptor (ER)-α+/progesterone receptor (PR)+/human epidermal growth factor receptor-2 (HER2)- (Luminal A) and ER-α-/PR-/HER-2- (triple-negative) molecular subtypes of breast cancer (7-10). Published evidence from a comparative study on isogenic MCF-7 cellular phenotypes with modulated ER-α function demonstrated that the Chinese nutritional herb, Psoralea corylifolia (PC), effectively inhibited growth in the phenotypes with functional or non-functional ER-α (7).

The aim of the present cell culture study was to evaluate the growth inhibitory effects of PC in a cellular model for TNBC and to identify possible mechanistic leads for the efficacy of this nutritional herb. These in vitro data may provide a scientific basis for subsequent in vivo studies on triple-negative tumors. The MDA-MB-231 cellular model of TNBC was selected as the experimental system. The TNBC breast cancer subtype is notable for the compromised tumor suppressive function of the RB gene (11). Thus, the experimental downregulation of the aberrant function of RB may identify potential molecular targets for the efficacy of PC.

Materials and methods

Experimental model

The MDA-MB-231 cell line is isolated from the pleural effusion of human metastatic breast carcinoma. The carcinoma cells lack the expression levels of ER-α, PR and amplified HER-2, and represent an experimental model for TNBC (12,13). This cell line was obtained from the American Type Culture Collection (ATCC), and the cells were maintained in RPMI-1640 medium with L-glutamine and 5% fetal bovine serum (Life Technologies; Thermo Fisher Scientific, Inc.) following the protocol a recommended by ATCC.

Test agent

A non-fractionated aqueous extract of PC was prepared by boiling 20 g of seeds of PC provided by the author GYCW in 200 ml of deionized distilled water followed by sequential boiling and centrifugation to obtain a concentrated extract at a concentration of 20 g extract in 20 ml deionized distilled water (7,8,10). This stock solution was subsequently diluted in the culture medium to obtain a concentration of 1 mg extract/1 ml. This diluted stock solution was subsequently used on the cell cultures at the µg/ml concentration range.

Analysis of dose response effect of PC

The dose response effect of PC was determined by examining cell viability using the Cell Titre Glo assay (Promega Corporation) as recommended in the protocol provided by the manufacturer. This assay measures relative luminescent units (RLUs) as a quantitative end point. Briefly, 5.0x103 cells were seeded in 96-well plates and treated with PC at a 1-100 µg/ml concentration range for 6 days at 37˚C in a CO2 incubator. The medium containing PC was replenished every 72 h. Untreated cultures maintained in the culture medium represented the control. Cell viability was measured on day 7 using a Fluoroskan plate reader (Thermo Fisher Scientific, Inc.), and was expressed as RLUs. The data obtained from the dose response experiment were extrapolated to identify the minimally effective (IC25), half maximum (IC50) and maximally cytostatic (IC90) inhibitory concentrations for the cells treated with PC.

Anchorage-independent (AI) growth assay

This assay was performed following the optimized protocol. Briefly, MDA-MB-231 cell suspensions, at a density of 5x105 per ml prepared in 0.33% agar with a concentration range of 1-80 µg/ml PC. The untreated cell suspension represented the control. These cell suspensions were overlaid on a basement matrix of 0.6% agar. The cultures were incubated at 37˚C in a CO2 incubator for 21 days. The AI colonies were fixed in 4% phosphate-buffered formaldehyde (cat. no. 100494, Sigma-Aldrich; Merck KGaA, stained with 0.005% crystal violet (cat. no. C-6158, Sigma-Aldrich; Merck KGaA), overnight at room temperature. The colony counts were determined at x10 magnification. The data were expressed as the AI colony number. These data were extrapolated to identify the IC25, IC50 and IC90 inhibitory concentrations.

Cell cycle progression assay

For the cell cycle analysis, 5x105 cells were seeded in T-25 flasks and treated for 24 h after seeding with 3, 6 and 12 µg/ml of PC for 48 h. The cells were harvested by trypsinization, pelleted at 500 x g, and washed twice with cold PBS. The cells were then fixed with cold 70% ethanol, washed with cold PBS, and stained with 50 µg/ml propidium iodide in PBS (Sigma-Aldrich; Merck KGaA), followed by the addition of 10 µg/ml ribonuclease (Sigma-Aldrich; Merck KGaA), and incubation at 37˚C for 20 min and a 4-h incubation of the mixture at 4˚C in the dark. Cell cycle progression was monitored following an optimized protocol that included the fluorescence-assisted sorting of PI-stained cells, with the use of a 488 nm excitation filter and a 520 nm band pass filter, and gating of the sorted cells on a forward versus side scatter. The DNA content was analyzed using a BD FACScan Flow Cytometer (BD Biosciences) and analyzed by FCS Express software version 306 (De Novo Software). The flow cytometry-based analyses determined the distribution of individual cell populations in the G1 (quiescent), S, G2/M (proliferative) and sub G0 (apoptotic) phases of the cell cycle. These primary data were expressed as the G1: S + G2/M ratio and the percentage sub G0 population to assess altered cell cycle progression and cellular apoptosis, respectively.

Western blot analysis

Cells were seeded in 10-cm dishes at 70% confluence 1 day prior to treatment. Cells were treated with 2, 4 and 6 µg/ml of PC and the cultures were incubated for 48 h in a CO2 incubator at 37˚C. Cells were harvested and immediately lysed with RIPA buffer containing protease inhibitors (Sigma-Aldrich; Merck KGaA), and centrifuged at 4˚C for 15 min at 10,000 x g. The protein content of the lysate was quantified using the Bradford method, and an equal quantity of protein was separated by 10% SDS-PAGE and transferred onto a nitrocellulose membrane (Bio-Rad Laboratories) and was blocked at 4˚C overnight with 5% non-fat dry milk followed by incubation with primary and secondary antibodies (Table I). The chemiluminescent signal was developed with ECL-plus reagent (Bio-Rad, Laboratories, Inc.) and detected by autoradiography. The antibody for β-actin was used as the reference protein for western blot analysis. The signal intensity in the western blots was quantified as arbitrary scanning units (ASU) using Molecular Imager GS800 and Quantity One software (Bio-Rad Laboratories, Inc.)

Table I Source of antibodies.

Table I

Source of antibodies.

Antibody	Vendor	Catalogue no.	Dilution
Primary
β-actin C4	Santa Cruz Biotechnology, Inc.	sc-47778	1:200
Cyclin D1	Santa Cruz Biotechnology, Inc.	sc-246	1:200
RB	Santa Cruz Biotechnology, Inc.	sc-74562	1:100
CDK4	Cell Signaling Technology, Inc.	12790	1:1,000
CDK6	Cell Signaling Technology, Inc.	7961	1:200
p-RB Ser780	Cell Signaling Technology, Inc.	3590	1:100
Secondary
Anti-rabbit IgG-HRP	Santa Cruz Biotechnology, Inc.	sc-2357	1:1,000

[i] HRP, horseradish peroxidase.

Caspase assay

Caspase-3/7 activity in the MDA-MB-231 cells was measured using a Caspase-Glo assay kit (Promega Corporation). Briefly, the cells treated with PC were homogenized by sonication in homogenization buffer (25 mmol/l HEPES, pH 7.5, 5 mmol/l MgCl2, and 1 mmol/l EGTA) and protease inhibitors (all from Sigma-Aldrich; Merck KGaA). The homogenate was centrifuged at 6,500 x g at 4˚C for 15 min and the supernatant was used for experiments. To 10 µl of the supernatant, equal volume of the assay reagent was added, and the mixture was incubated at room temperature for 2 h. The luminescence was measured using a luminometer (Thermo Fisher Scientific, Inc.). The data were expressed as RLUs.

Statistical analysis

The data were obtained from replicate experiments for the dose response, AI growth, cell cycle progression and caspase-3/7 activity assays and are expressed as the mean ± SD, n=3 per treatment group. The comparisons of statistically significant differences between the common control and multiple treatment groups were analyzed using one-way analysis of variance with Dunnett's multiple comparison test as a post-hoc with a threshold of α=0.05. P<0.05 was considered to indicate a statistically significant difference.

Results

Growth inhibitory effect of PC

The data on the growth inhibitory effects of PC are presented in Table II. These data exhibited a dose-dependent inhibitory response in MDA-MB-231 cells. As indicated by the RLU values, treatment with 6, 12 and 24 µg/ml PC for 7 days resulted in a decrease of 67.7% (P=0.020), in a decrease of 72.3% (P=0.014) and in a decrease of 84.8% (P=0.001), respectively, relative to the untreated control. These data identified the IC25 as 2.4±0.3 µg/ml, the IC50 as 4.4±1.0 µg/ml and the IC90 as 25.5±1.8 µg/ml, respectively, relative to the untreated control.

Table II Growth inhibitory effects of PC on MDA-MB-231 cells.

Table II

Growth inhibitory effects of PC on MDA-MB-231 cells.

Treatment	Concentration (µg/ml)	Relative luminescent unitsa	P-value	Inhibition (% control)
Control	-	0.65±0.02		-
PC	3	0.45±0.01		-30.8
	6	0.21±0.01	0.020	-67.7
	12	0.18±0.02	0.014	-72.3
	24	0.10±0.01	0.001	-84.8

[i] ^aDetermined at day 7 post-seeding of 5.0x10³ cells using the Cell Titre Glo assay. Data are presented as the mean ± SD, n=3 per treatment group, and analyzed by ANOVA and Dunnett's multiple comparison post-hoc test (α=0.05). PC, Psoralia corylifolia; ANOVA, analysis of variance.

Effect of PC on AI colony formation

The data on inhibition of AI colony formation by PC are presented in Tables III and SI. A 21-day treatment with PC identified the IC25 as 5 µg (P=0.050), the IC50 as 10 µg (P=0.037) and the IC90 as 80 µg (P=0.014), respectively, relative to the untreated control.

Table III Inhibition of anchorage-independent growth of MDA-MB-231 cells by PC.

Table III

Inhibition of anchorage-independent growth of MDA-MB-231 cells by PC.

Treatment	Concentration (µg/ml)	AI colony numbera	IC	P-value
Control	-	745±51	-	-
PC	1	641±59
	5	559±56	IC25	0.050
	10	373±48	IC50	0.037
	20	307±74
	40	230±58
	60	123±11
	80	69±5	IC90	0.014

[i] ^aAI colony number determined at day 21 post-seeding of 5.0x10⁵ cells. Data are presented as the mean ± SD, n=3 per treatment group, and analyzed by ANOVA with Dunnett's multiple comparison post-hoc test (α=0.05). AI, anchorage independent; IC, inhibitory concentration; PC, Psoralia corylifolia; ANOVA, analysis of variance.

Effect of PC on cell cycle progression

The effect of PC on cell cycle progression is presented in Tables IV, SII and SIII. The data expressed as the G1: S + G2/M ratio demonstrated that treatment with PC at 6 µg/ml exhibited a 2.5-fold increase (P=0.020) and treatment with PC at 12 µg/ml exhibited a 3.5-fold (P=0.014) increase respectively, relative to the untreated control.

Table IV Effect of PC on cell cycle progression in MDA-MB-231 cells.

Table IV

Effect of PC on cell cycle progression in MDA-MB-231 cells.

Treatment	Concentration (µg/ml)	G1: S + G2/Ma	P-value	Fold of control
Control	-	0.6±0.1		-
PC	3	0.9±0.2
	6	2.1±0.3	0.020	2.5x
	12	2.7±0.3	0.014	3.5x

[i] ^aDetermined at day 3 post-seeding of 5.0x10³ cells. Data are presented as the mean ± SD, n=3 per treatment group, and analyzed by ANOVA with Dunnett's multiple comparison post-hoc test (α=0.05). PC, Psoralia corylifolia; ANOVA, analysis of variance.

Effect of PC on RB signaling

The data presented in Fig. 1 are the results of the analyses of the effects of PC on the RB signaling. The proteins, cyclin D1, CDK4, CDK6 and p-RB, involved in this pathway exhibited a dose-dependent decrease, relative to the untreated control.

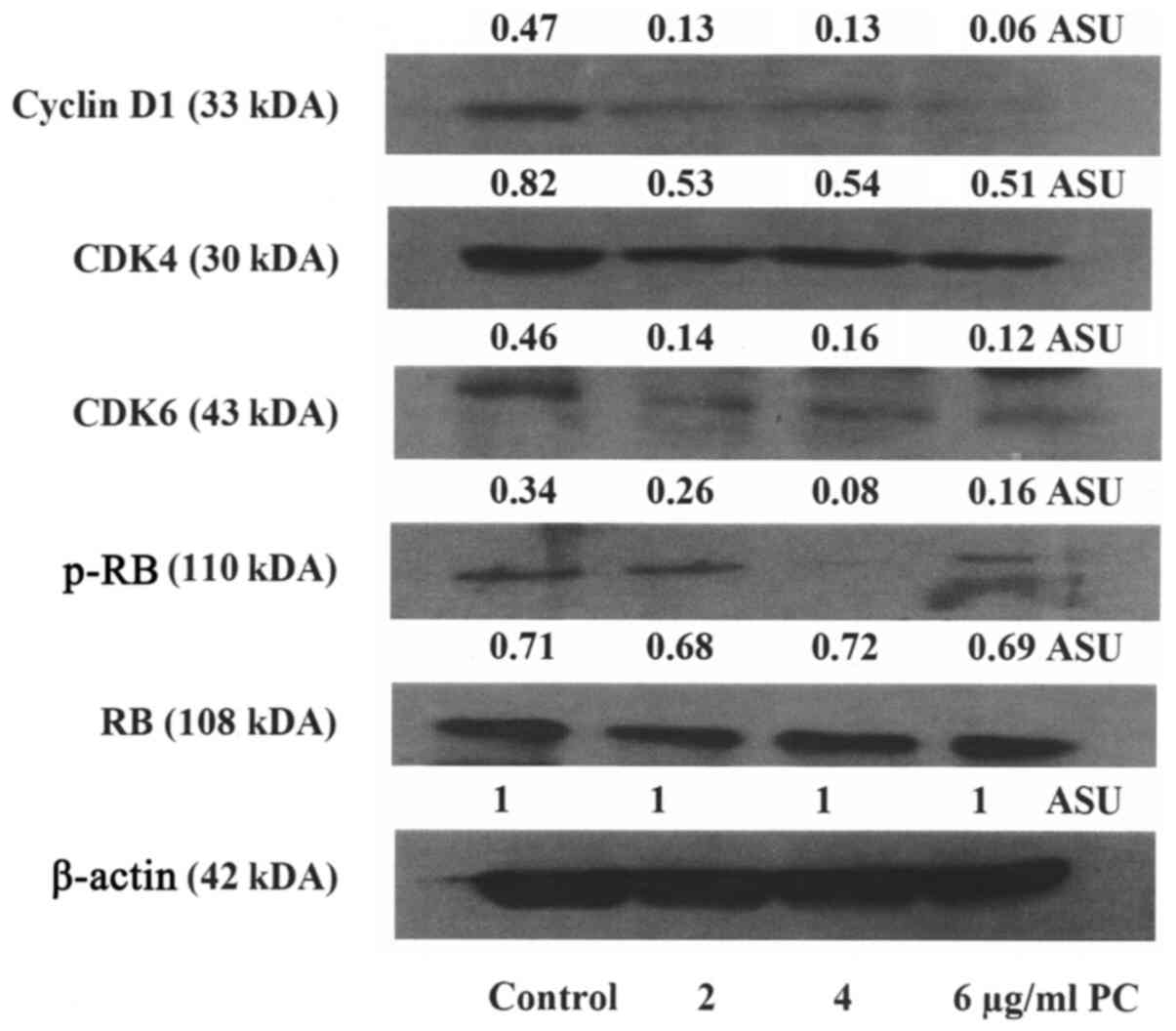

Figure 1 Western blot analysis of select proteins of the RB pathway. The expression levels of cyclin D1, CDK4, CDK6 and p-RB were inhibited in response to treatment with PC. PC, Psoralea corylifolia; CDK4, cyclin dependent kinase 4; CDK6, cyclin dependent kinase 6, p-RB, phosphorylated retinoblastoma; RB, retinoblastoma; ASU; arbitrary scanning unit.

Effect of PC on cellular apoptosis

The data presented in Tables V and SIV are the results of the analyses of the effect of PC on cellular apoptosis by quantifying the status of cells in sub G0 (apoptotic) phase of the cell cycle and the pro-apoptotic caspase-3/7 activity. Treatment with PC resulted in a dose-dependent increase in the sub G0 phase, as well as an increase in the caspase activity, relative to the untreated control.

Table V Effect of PC on the apoptosis of MDA-MB-231 cells.

Table V

Effect of PC on the apoptosis of MDA-MB-231 cells.

Treatment	Concentration (µg/ml)	Sub G0 (%)a	P-value	Caspase-3/7 activity (RLU)a	P-value
Control	-	5.0±1.2		0.5±0.1
PC	3	18.0±1.4	0.020	6.5±1.3	0.014
	6	20.0±2.7	0.020	50.8±3.1	0.005
	12	60.0±5.0	0.014	75.0±5.0	0.001

[i] ^aDetermined at day 3 post-seeding of 5.0x10⁴ cells. Data are presented as the mean ± SD, n=3 per treatment group, and analyzed by ANOVA with Dunnett's multiple comparison post-hoc test (α=0.05). PC, Psoralia corylifolia; RLU, relative luminescent units; ANOVA, analysis of variance.

Discussion

Conventional treatment options for TNBC are frequently associated with systemic toxicity and acquired drug resistance leading to progression of therapy resistant disease. Moreover, there are no drugs available for secondary prevention of TNBC. These considerations emphasize a need to identify relatively non-toxic efficacious naturally occurring testable alternatives. The nutritional herb, PC, has documented anti-oxidative, chemo-protective and anti-inflammatory activities. This herb is used in the traditional Chinese medicine and in Indian Ayurvedic medicine for general health management, as a treatment for leukoderma and psoriasis, and also as a palliative for breast cancer patients. PC is commonly used in a dose range of 10 to 15 g in herbal formulations in combination with additional herbs (14).

In the present study, treatment of the MDA-MB-231 cells with PC at a low concentration range of 3 to 24 µg/ml led to a dose-dependent reduction in viable cell number, identifying an effective dose range of 3 to 12 µg/ml, and a maximum cytostatic dose of 24 µg/ml.

Experiments using the anchorage-independent colony formation assay revealed a dose-dependent reduction in the number of AI colonies in response to treatment with PC. Published evidence on the present TNBC model has demonstrated quantifiable increase in AI colony number (9,10). By contrast, the triple-negative non-tumorigenic 184-B5 breast epithelial cells are notable for the absence of AI colony formation (15). The selectivity of AI growth in the carcinoma derived cells suggests that the AI colony formation represents a sensitive and specific in vitro surrogate end point biomarker for in vivo tumorigenic potential. Thus, the inhibition of AI colonies in response to treatment with PC suggests that PC may reduce the risk of developing breast cancer.

In the present study, experiments to examine the effects of PC on cell cycle progression revealed an increased G1: S + G2/M ratio due to G1 phase arrest. At the mechanistic level, the inhibition of cell cycle progression was associated with reduced expression levels of cyclin D1, CDK4, CDK6 and p-RB. TNBC is notable for defective RB signaling pathway, and cyclin D1 is involved in the CDK4/CDK6- pRB pathway (16). Cyclin D1 functions as a G1 specific cyclin for G1 to S phase transition during cell cycle progression, and represents a potential therapeutic target (17). Pharmacological inhibitors of CDK4 and CDK6 function during G1 to S phase transition (18). Thus, the data demonstrating that PC induced G1 arrest, and inhibited CDK4 and CDK6 expression, suggest that PC may function as a natural CDK inhibitor. Collectively, these data suggest that PC may downregulate defective RB signaling and thereby, provide plausible mechanistic leads for the anti-proliferative effects of PC in the present experimental system.

Experiments to examine the effect of PC on cellular apoptosis revealed that treatment with PC at the concentration range of 3 to 12 µg/ml induced an increase in the subG0 (apoptotic) phase of the cell cycle, and a corresponding increase in the pro-apoptotic caspase-3/7 activity. Collectively, these data provide a mechanistic lead for pro-apoptotic effects of PC and suggest possible involvement of the intrinsic pathway of cellular apoptosis.

Traditional Chinese medicine involves boiling the herbal formulation to prepare an aqueous extract for patient consumption. To simulate this clinical scenario, a non-fractionated aqueous extract of PC was used in the present study. The specific role of individual bioactive components in the herbal formulation is not well-defined. It is conceivable that the bioactive agents may act in a synergistic/additive manner, leading to growth inhibitory efficacy. The phytochemical analysis of PC has demonstrated the presence of coumarins, flavonoids and meroterpenes (19). The phytochemical isobavachalcone present in PC has been documented to increase ER-α expression, CD44 expression and affects paclitaxel resistance in MCF-7 breast cancer cells (20). In colon carcinoma-derived HCT-116 and SW480 cells, this phytochemical has documented efficacy via the AKT/GSK-3β/β-catenin axis (21), and has also been shown to inhibit cyclin D1 and CDK-4 in HCT116, SW480, LoVo and HT29 colon carcinoma-derived cellular models (22). The anti-proliferative and pro-apoptotic effects of PC extract in the MCF-7 model have been shown to be due to the upregulation of PARP, reactive oxygen species (ROS), pro-apoptotic caspase-7, caspase-9 and BCl-2 associated protein X (BAX), respectively (23). Psoralen, another putative bioactive agent present in PC, has been shown to induce G1 arrest and reverse the expression of multi-drug resistance (MDR) genes in an adriamycin-resistant MCF-7/ADR model (24). Taken together, these mechanistic data provide a proof of concept for involvement of select cell cycle regulatory and apoptosis specific proteins in the growth inhibitory effects of PC.

At the present time, no drugs are available for the secondary prevention of TNBC, at least to the best of our knowledge. Since PC has demonstrated efficacy against TNBC and is a non-toxic nutritional herb, it carries great promise for effective long-term secondary prevention for this type of breast cancer.

In conclusion, the present study provides plausible mechanistic leads for the efficacy of PC as a testable alternative against TNBC. Furthermore, these in vitro data on a cellular model of TNBC represent a scientific rationale for subsequent in vivo investigations on TNBC tumors. Overall, the study outcome validates the present experimental approach to identify and prioritize efficacious natural products as potential dietary supplements for prevention/therapy of breast cancer.

Supplementary Material

AI growth assay.

Cell cycle progression assay.

G1: S + G2/M ratio.

Apoptosis and caspase assay.
